VISHAYDatasheet (PDF)

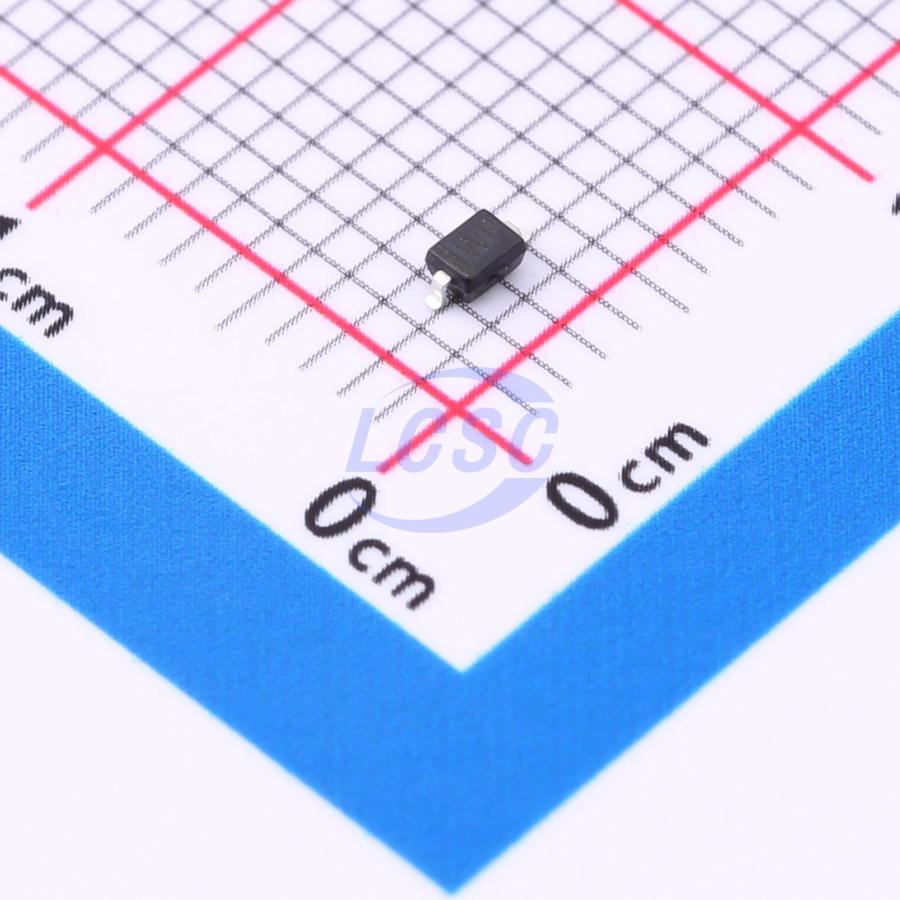

BZX384C22-E3-08
Zener Diode Independent 22V 200mW Surface Mount SOD-323
SOD-323ROHS3 CompliantActive
DIODE ZENER 22V 200mW SOD-323
- Manufacturer
- VISHAY
- Manufacturer part #
- BZX384C22-E3-08
- Store part #
- C3009031
- Package / case
- SOD-323
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,760 in stock
#C3009031
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.81 | ₹68.10 |
| 100+ | ₹5.36 | ₹536.00 |
| 300+ | ₹4.63 | ₹1,389.00 |
| 3,000+ | ₹4.07 | ₹12,210.00 |
| 6,000+ | ₹3.64 | ₹21,840.00 |
| 9,000+ | ₹3.43 | ₹30,870.00 |
10 × ₹6.81
₹68.10
excl. GST
₹80.36 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZX384C22-E3-08
₹68.10 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Pd - Power Dissipation
- 200mW
- Reverse Leakage Current (Ir)
- 50nA
- Impedance(Zzt)
- 55Ω
- Zener Voltage(Range)
- 20.8V~23.3V
- Zener Voltage(Nom)
- 22V
- Impedance(Zzk)
- 60Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Overview
Key features
- Silicon planar Zener diodes
- The Zener voltages are graded according to the international E24 standard
- Standard Zener voltage tolerance is ± 5%; replace "C" with "B" for ± 2% tolerance
- AEC-Q101 qualified available
- ESD capability according to AEC-Q101: Human body model >8kV Machine model >800V
- Base P/N - E3 - RoHS-compliant, commercial grade
- Base P/N - HE3 - RoHS-compliant, AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| MM3Z22VC#C891589onsemi · SOD-323FL | onsemi | SOD-323FL | 2,825 | ₹15.32 · 2,825 in stock | View | |
 | MM3Z22-MS#C22459428MSKSEMI · SOD-323 | MSKSEMI | SOD-323 | 2,950 | ₹2.28 · 2,950 in stock | View |
 | BZT52C22S-TP#C2975575MCC · SOD-323 | MCC | SOD-323 | 2,320 | ₹7.01 · 2,320 in stock | View |
 | LM3Z22VT1G#C131821LRC · SOD-323 | LRC | SOD-323 | 700 | ₹2.88 · 700 in stock | View |
 | MM3Z22#C216761Shikues · SOD-323 | Shikues | SOD-323 | 3,000 | ₹2.41 · 3,000 in stock | View |
