VISHAYDatasheet (PDF)

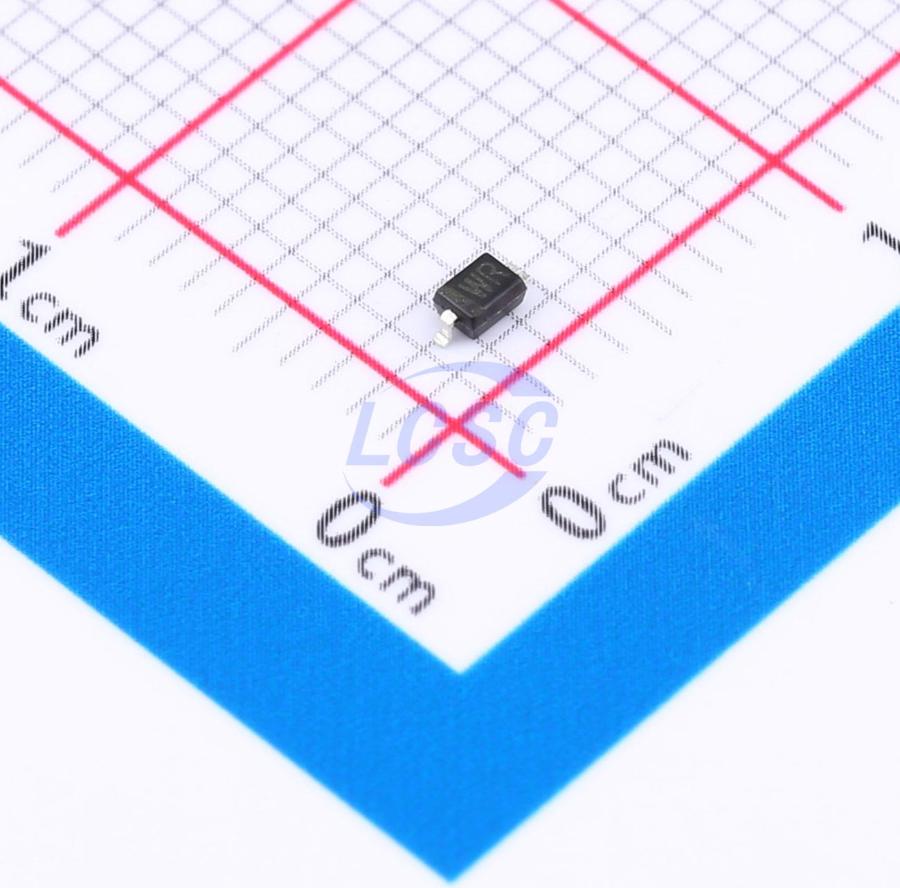

BZX384C24-E3-08
Zener Diode Independent 24V 200mW Surface Mount SOD-323
SOD-323ROHS3 CompliantActive
DIODE ZENER 24V 200mW SOD-323
- Manufacturer
- VISHAY
- Manufacturer part #
- BZX384C24-E3-08
- Store part #
- C5354322
- Package / case
- SOD-323
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,080 in stock
#C5354322
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.78 | ₹87.80 |
| 100+ | ₹6.99 | ₹699.00 |
| 300+ | ₹6.10 | ₹1,830.00 |
| 3,000+ | ₹5.42 | ₹16,260.00 |
| 6,000+ | ₹4.88 | ₹29,280.00 |
| 9,000+ | ₹4.62 | ₹41,580.00 |
10 × ₹8.78
₹87.80
excl. GST
₹103.60 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZX384C24-E3-08
₹87.80 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+175℃
- Pd - Power Dissipation
- 200mW
- Reverse Leakage Current (Ir)
- 50nA
- Impedance(Zzt)
- 70Ω
- Zener Voltage(Range)
- 22.8V~25.6V
- Zener Voltage(Nom)
- 24V
- Impedance(Zzk)
- 60Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Overview
Key features
- Silicon planar Zener diodes
- The Zener voltages are graded according to the international E24 standard
- Standard Zener voltage tolerance is ± 5%; replace "C" with "B" for ± 2% tolerance
- AEC-Q101 qualified available
- ESD capability according to AEC-Q101: Human body model >8kV Machine model >800V
- RoHS-compliant, commercial grade
- RoHS-compliant, AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM3Z24VT1G#C131820LRC · SOD-323 | LRC | SOD-323 | 4,200 | ₹2.41 · 4,200 in stock | View |
 | MM3Z24#C216762Shikues · SOD-323 | Shikues | SOD-323 | 700 | ₹2.16 · 700 in stock | View |
 | BZT52C24S#C5353077FOSAN · SOD-323 | FOSAN | SOD-323 | 1,250 | ₹1.57 · 1,250 in stock | View |
 | BZT52C24S RRG#C485493Taiwan Semiconductor · SOD-323F | Taiwan Semiconductor | SOD-323F | 20 | ₹4.60 · 20 in stock | View |
 | BZX384C24-HE3-08#C232202VISHAY · SOD-323 | VISHAY | SOD-323 | 10 | ₹12.93 · 10 in stock | View |
