VISHAYDatasheet (PDF)

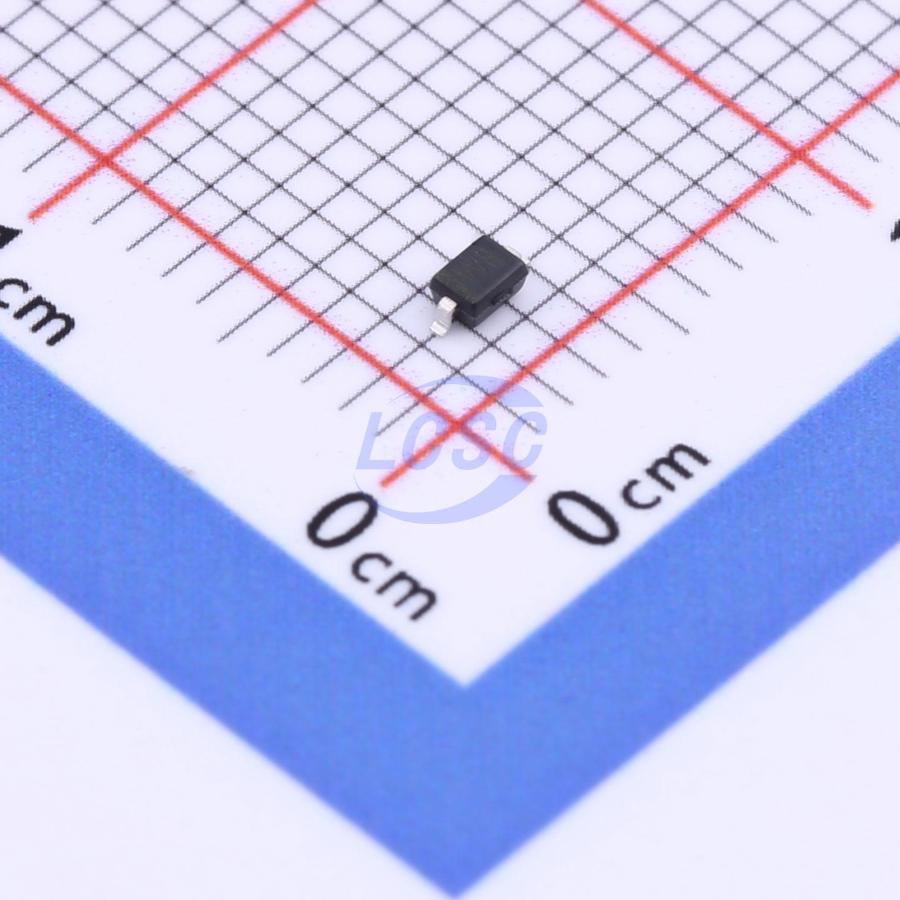

BZX384C4V7-E3-08
Zener Diode Independent 4.7V 200mW Surface Mount SOD-323
SOD-323ROHS3 CompliantActive
DIODE ZENER 4.7V 200mW SOD-323
- Manufacturer
- VISHAY
- Manufacturer part #
- BZX384C4V7-E3-08
- Store part #
- C4555439
- Package / case
- SOD-323
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
342 in stock
#C4555439
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹67.22 | ₹67.22 |
| 10+ | ₹55.70 | ₹557.00 |
| 30+ | ₹50.68 | ₹1,520.40 |
| 100+ | ₹44.39 | ₹4,439.00 |
| 500+ | ₹41.77 | ₹20,885.00 |
| 1,000+ | ₹40.03 | ₹40,030.00 |
1 × ₹67.22
₹67.22
excl. GST
₹79.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZX384C4V7-E3-08
₹67.22 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 200mW
- Reverse Leakage Current (Ir)
- 3uA@2V
- Impedance(Zzt)
- 80Ω
- Zener Voltage(Range)
- 4.4V~5V
- Zener Voltage(Nom)
- 4.7V
- Impedance(Zzk)
- 425Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.024 g
Overview
Key features
- Silicon planar Zener diodes
- The Zener voltages are graded according to the international E24 standard
- Standard Zener voltage tolerance is ± 5%; replace "C" with "B" for ± 2% tolerance
- AEC - Q101 qualified available
- ESD capability according to AEC - Q101: Human body model >8kV Machine model >800V
- Base P/N - E3 - RoHS - compliant, commercial grade
- Base P/N - HE3 - RoHS - compliant, AEC - Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MM3Z4V7#C216745Shikues · SOD-323 | Shikues | SOD-323 | 1,400 | ₹2.28 · 1,400 in stock | View |
 | BZT52C4V7SQ#C2857108JSMSEMI · SOD-323 | JSMSEMI | SOD-323 | 2,600 | ₹2.49 · 2,600 in stock | View |
 | BZT52C4V7S#C2886316CBI · SOD-323 | CBI | SOD-323 | 350 | ₹2.26 · 350 in stock | View |
 | BZT52C4V7S#C699180YANGJIE · SOD-323(SC-90) | YANGJIE | SOD-323(SC-90) | 2,100 | ₹3.16 · 2,100 in stock | View |
 | BZT52C4V7S#C5353060FOSAN · SOD-323 | FOSAN | SOD-323 | 1,650 | ₹1.53 · 1,650 in stock | View |
