VISHAYDatasheet (PDF)

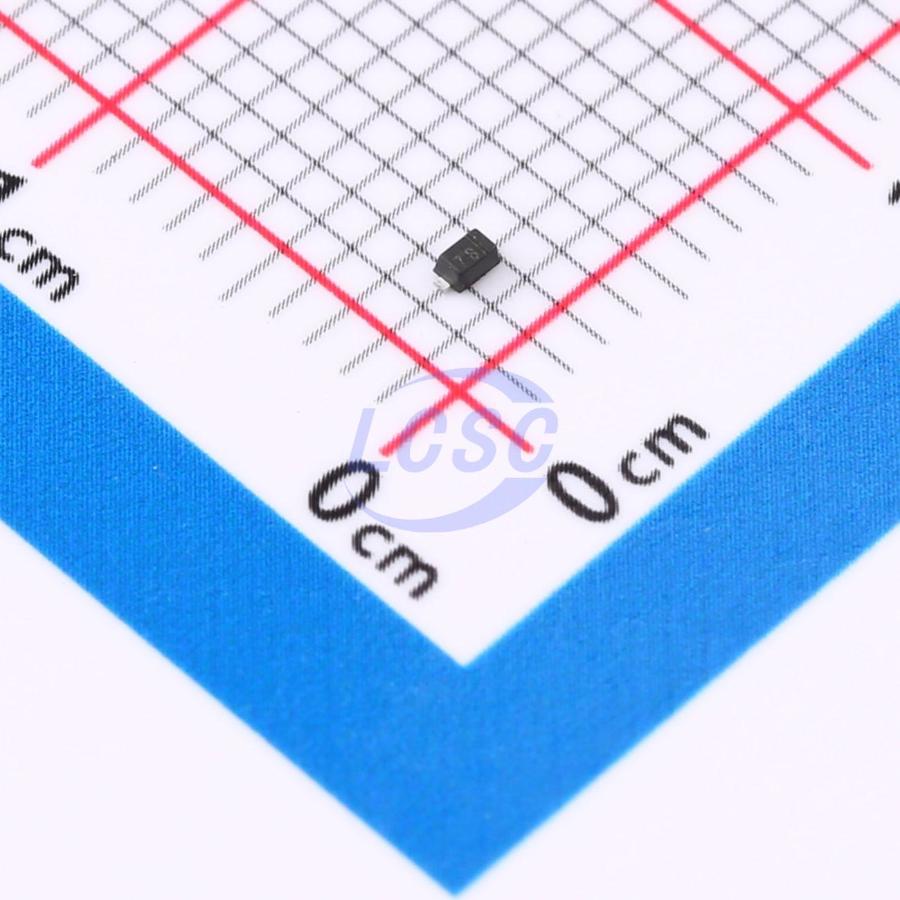

BZX584C12-G3-08
Zener Diode Independent 12V 200mW Surface Mount SOD-523
SOD-523ROHS3 CompliantActive
DIODE ZENER 12V 200mW SOD-523
- Manufacturer
- VISHAY
- Manufacturer part #
- BZX584C12-G3-08
- Store part #
- C3738454
- Package / case
- SOD-523
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
130 in stock
#C3738454
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.63 | ₹73.15 |
| 50+ | ₹14.31 | ₹715.50 |
| 150+ | ₹14.10 | ₹2,115.00 |
| 500+ | ₹13.89 | ₹6,945.00 |
5 × ₹14.63
₹73.15
excl. GST
₹86.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 8,000 per reel
BZX584C12-G3-08
₹73.15 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Pd - Power Dissipation
- 200mW
- Reverse Leakage Current (Ir)
- 100nA@8V
- Impedance(Zzt)
- 10Ω
- Zener Voltage(Range)
- 11.4V~12.7V
- Zener Voltage(Nom)
- 12V
- Impedance(Zzk)
- 50Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 8,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.094 g
Overview
Key features
- With the BZX584C... Series offers a Z- diode in the tiny SOD- 523 plastic package.
- Made for space sensitive applications the BZX584C... Series has a Zener voltage tolerance of ± 5%
- AEC- Q101 qualified available
- Base P/N- G3 - RoHS- compliant, commercial grade
- Base P/N- HG3 - RoHS- compliant, AEC- Q101 qualified
- RoHS COMPLIANT HALOGEN FREE GREEN (5- 2008)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MM5Z12#C55380866GOODWORK · SOD-523 | GOODWORK | SOD-523 | 2,750 | ₹1.28 · 2,750 in stock | View |
 | BZX584C12#C42436590TECH PUBLIC · SOD-523 | TECH PUBLIC | SOD-523 | 1,950 | ₹2.67 · 1,950 in stock | View |
 | BZX584C8V2#C42436591TECH PUBLIC · SOD-523 | TECH PUBLIC | SOD-523 | 2,500 | ₹2.58 · 2,500 in stock | View |
 | LM5Z12VT1G#C131801LRC · SOD-523 | LRC | SOD-523 | 2,820 | ₹3.08 · 2,820 in stock | View |
 | MM5Z12#C2832581CBI · SOD-523 | CBI | SOD-523 | 3,400 | ₹2.32 · 3,400 in stock | View |
