VISHAYDatasheet (PDF)

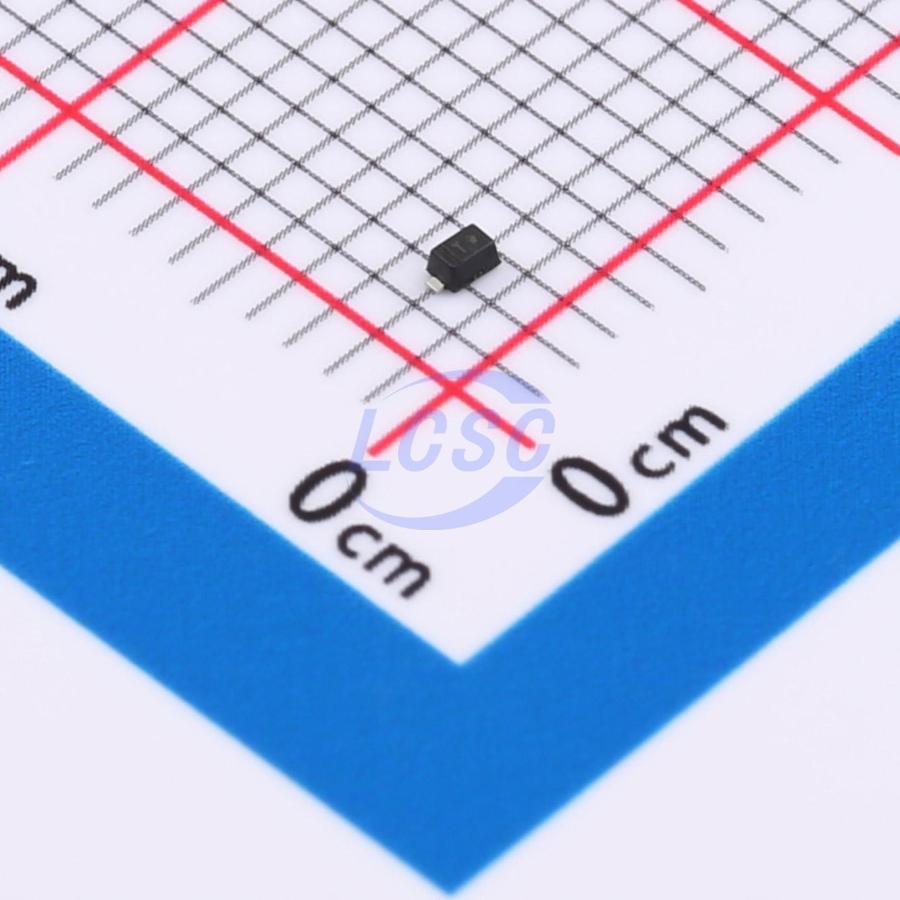

BZX584C15-G3-08
Zener Diode Independent 15V 200mW Surface Mount SOD-523
SOD-523ROHS3 CompliantActive
DIODE ZENER 15V 200mW SOD-523
- Manufacturer
- VISHAY
- Manufacturer part #
- BZX584C15-G3-08
- Store part #
- C3728639
- Package / case
- SOD-523
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,100 in stock
#C3728639
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹9.83 | ₹49.15 |
| 50+ | ₹8.55 | ₹427.50 |
| 150+ | ₹7.90 | ₹1,185.00 |
| 500+ | ₹7.41 | ₹3,705.00 |
| 2,500+ | ₹7.03 | ₹17,575.00 |
| 5,000+ | ₹6.83 | ₹34,150.00 |
5 × ₹9.83
₹49.15
excl. GST
₹58.00 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 8,000 per reel
BZX584C15-G3-08
₹49.15 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Pd - Power Dissipation
- 200mW
- Reverse Leakage Current (Ir)
- 100nA@8V
- Impedance(Zzt)
- 10Ω
- Zener Voltage(Range)
- 13.8V~15.6V
- Zener Voltage(Nom)
- 15V
- Impedance(Zzk)
- 50Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 8,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.01 g
Overview
Key features
- With the BZX584C... Series offers a Z- diode in the tiny SOD- 523 plastic package.
- Made for space sensitive applications the BZX584C... Series has a Zener voltage tolerance of ± 5%
- AEC- Q101 qualified available
- Base P/N- G3 - RoHS- compliant, commercial grade
- Base P/N- HG3 - RoHS- compliant, AEC- Q101 qualified
- RoHS COMPLIANT HALOGEN FREE GREEN (5- 2008)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| BZX584C15-HG3-08#C3739632VISHAY · SOD-523 | VISHAY | SOD-523 | 85 | ₹23.52 · 85 in stock | View | |
 | MM5Z15#C55239087GOODWORK · SOD-523 | GOODWORK | SOD-523 | 1,900 | ₹1.28 · 1,900 in stock | View |
 | BZX584C15#C46641705TECH PUBLIC · SOD-523 | TECH PUBLIC | SOD-523 | 3,600 | ₹2.26 · 3,600 in stock | View |
 | MM5Z15#C2990880ST(Semtech) · SOD-523 | ST(Semtech) | SOD-523 | 450 | ₹2.32 · 450 in stock | View |
 | MM5Z15#C2999965Slkor · SOD-523 | Slkor | SOD-523 | 460 | ₹2.83 · 460 in stock | View |
