VISHAYDatasheet (PDF)

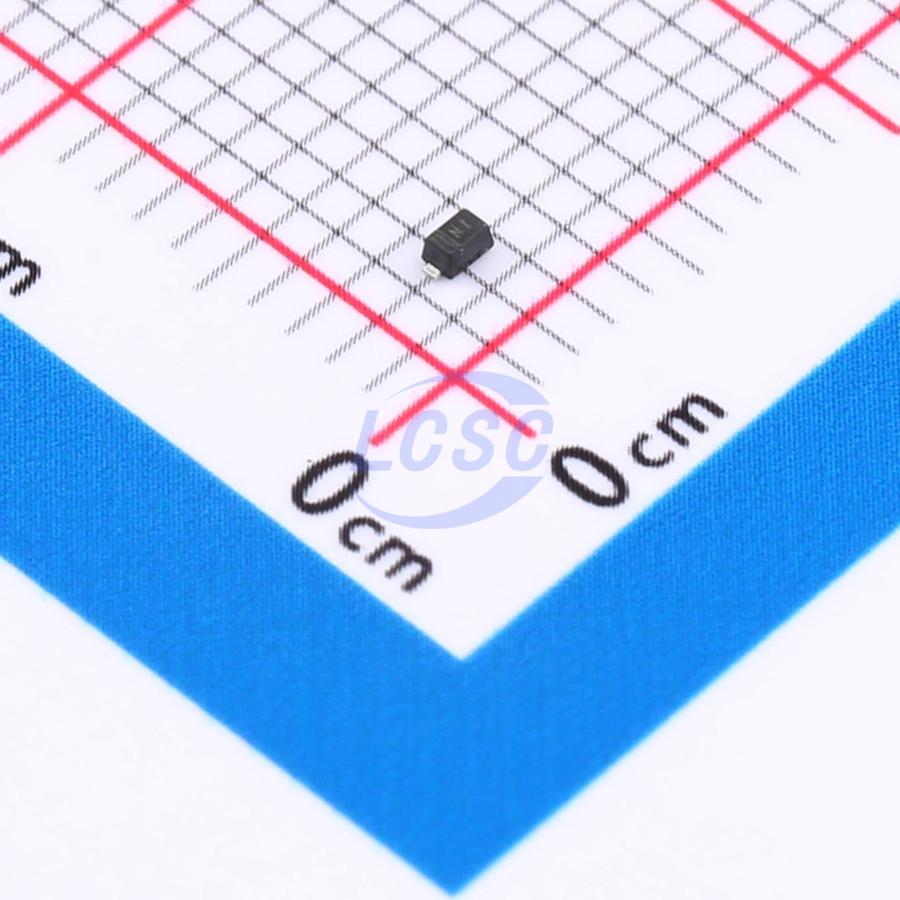

BZX584C16-G3-08
1 Independent 15.3V~17.1V 16V SOD-523 Single Zener Diodes RoHS
SOD-523ROHS3 CompliantActive
DIODE ZENER 16V SOD-523
- Manufacturer
- VISHAY
- Manufacturer part #
- BZX584C16-G3-08
- Store part #
- C3734683
- Package / case
- SOD-523
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
75 in stock
#C3734683
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹9.79 | ₹48.95 |
| 50+ | ₹9.58 | ₹479.00 |
| 150+ | ₹9.43 | ₹1,414.50 |
| 500+ | ₹9.30 | ₹4,650.00 |
5 × ₹9.79
₹48.95
excl. GST
₹57.76 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 8,000 per reel
BZX584C16-G3-08
₹48.95 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Pd - Power Dissipation
- 200mW
- Reverse Leakage Current (Ir)
- 50nA@11.2V
- Impedance(Zzt)
- 10Ω
- Zener Voltage(Range)
- 15.3V~17.1V
- Zener Voltage(Nom)
- 16V
- Impedance(Zzk)
- 50Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 8,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.028 g
Overview
Key features
- With the BZX584C... Series offers a Z- diode in the tiny SOD- 523 plastic package.
- Made for space sensitive applications the BZX584C... Series has a Zener voltage tolerance of ± 5%
- AEC- Q101 qualified available
- Base P/N- G3 - RoHS- compliant, commercial grade
- Base P/N- HG3 - RoHS- compliant, AEC- Q101 qualified
- RoHS COMPLIANT HALOGEN FREE GREEN (5- 2008)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52C16K RKG#C3028977Taiwan Semiconductor · SOD-523F | Taiwan Semiconductor | SOD-523F | 1,140 | ₹4.84 · 1,140 in stock | View |
 | BZX584C16#C46641704TECH PUBLIC · SOD-523 | TECH PUBLIC | SOD-523 | 1,750 | ₹2.29 · 1,750 in stock | View |
 | MM5Z16AWT#C18218118Jingdao Microelectronics · SOD-523 | Jingdao Microelectronics | SOD-523 | 2,150 | ₹2.35 · 2,150 in stock | View |
 | LM5Z16VT1G#C2912023LRC · SOD-523 | LRC | SOD-523 | 2,520 | ₹3.02 · 2,520 in stock | View |
 | MM5Z16#C52148492YTL · SOD-523 | YTL | SOD-523 | 2,950 | ₹1.87 · 2,950 in stock | View |
