VISHAYDatasheet (PDF)

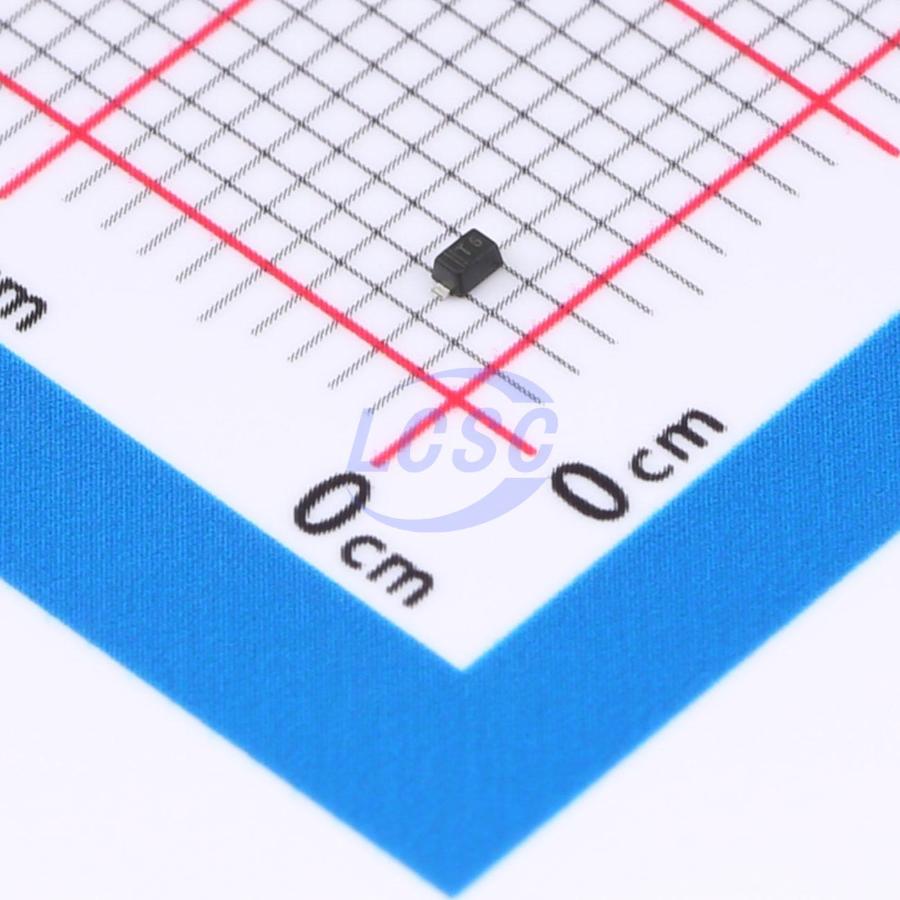

BZX584C3V6-HG3-08
1 Independent 3.4V~3.8V 3.6V SOD-523 Single Zener Diodes RoHS
SOD-523ROHS3 CompliantActive
DIODE ZENER 3.6V 200mW SOD-523
- Manufacturer
- VISHAY
- Manufacturer part #
- BZX584C3V6-HG3-08
- Store part #
- C3765314
- Package / case
- SOD-523
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
565 in stock
#C3765314
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹53.22 | ₹266.10 |
| 50+ | ₹43.98 | ₹2,199.00 |
| 150+ | ₹40.01 | ₹6,001.50 |
| 500+ | ₹35.06 | ₹17,530.00 |
| 2,500+ | ₹32.85 | ₹82,125.00 |
| 5,000+ | ₹31.53 | ₹1,57,650.00 |
5 × ₹53.22
₹266.10
excl. GST
₹314.00 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 8,000 per reel
BZX584C3V6-HG3-08
₹266.10 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Pd - Power Dissipation
- 200mW
- Reverse Leakage Current (Ir)
- 5uA@1V
- Impedance(Zzt)
- 85Ω
- Zener Voltage(Range)
- 3.4V~3.8V
- Zener Voltage(Nom)
- 3.6V
- Impedance(Zzk)
- 375Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 8,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.015 g
Overview
Key features
- With the BZX584C... Series offers a Z- diode in the tiny SOD- 523 plastic package.
- Made for space sensitive applications the BZX584C... Series has a Zener voltage tolerance of ± 5%
- AEC- Q101 qualified available
- Base P/N- G3 - RoHS- compliant, commercial grade
- Base P/N- HG3 - RoHS- compliant, AEC- Q101 qualified
- RoHS COMPLIANT HALOGEN FREE GREEN (5- 2008)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| BZX584C3V6-G3-08#C3736450VISHAY · SOD-523 | VISHAY | SOD-523 | 200 | ₹25.97 · 200 in stock | View | |
 | LM5Z3V6T1G#C111055LRC · SOD-523 | LRC | SOD-523 | 3,020 | ₹5.86 · 3,020 in stock | View |
 | BZT52C3V6T#C55137665BORN · SOD-523 | BORN | SOD-523 | 2,350 | ₹2.61 · 2,350 in stock | View |
 | BZX584C3V6#C968199YANGJIE · SOD-523(SC-79) | YANGJIE | SOD-523(SC-79) | 6,380 | ₹2.94 · 6,380 in stock | View |
 | BZT52C3V6T#C19630730YONGYUTAI · SOD-523 | YONGYUTAI | SOD-523 | 400 | ₹2.18 · 400 in stock | View |
