VISHAYDatasheet (PDF)

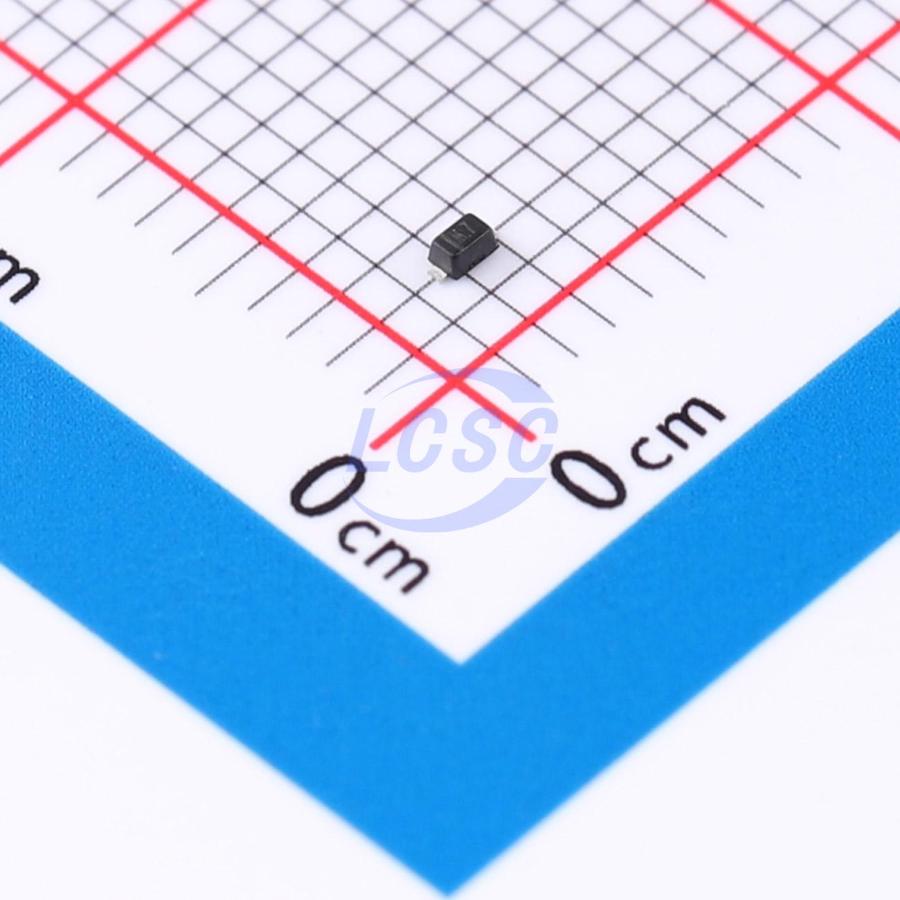

BZX584C3V9-HG3-08
1 Independent 3.7V~4.1V 3.9V SOD-523 Single Zener Diodes RoHS
SOD-523ROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- BZX584C3V9-HG3-08
- Store part #
- C5566533
- Package / case
- SOD-523
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
185 in stock
#C5566533
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.66 | ₹53.30 |
| 50+ | ₹10.44 | ₹522.00 |
| 150+ | ₹10.29 | ₹1,543.50 |
| 500+ | ₹10.13 | ₹5,065.00 |
5 × ₹10.66
₹53.30
excl. GST
₹62.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 8,000 per reel
BZX584C3V9-HG3-08
₹53.30 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Pd - Power Dissipation
- 200mW
- Reverse Leakage Current (Ir)
- 3uA@1V
- Impedance(Zzt)
- 85Ω
- Zener Voltage(Range)
- 3.7V~4.1V
- Zener Voltage(Nom)
- 3.9V
- Impedance(Zzk)
- 400Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 8,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.031 g
Overview
Key features
- With the BZX584C... Series offers a Z- diode in the tiny SOD- 523 plastic package.
- Made for space sensitive applications the BZX584C... Series has a Zener voltage tolerance of ± 5%
- AEC- Q101 qualified available
- Base P/N- G3 - RoHS- compliant, commercial grade
- Base P/N- HG3 - RoHS- compliant, AEC- Q101 qualified
- RoHS COMPLIANT HALOGEN FREE GREEN (5- 2008)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM5Z3V9T1G#C111052LRC · SOD-523 | LRC | SOD-523 | 4,050 | ₹5.29 · 4,050 in stock | View |
 | BZX584C3V9Q#C20167689YANGJIE · SOD-523(SC-79) | YANGJIE | SOD-523(SC-79) | 4,520 | ₹4.68 · 4,520 in stock | View |
 | BZX585-C3V9,115#C550653Nexperia · SOD-523(SC-79) | Nexperia | SOD-523(SC-79) | 2,750 | ₹8.24 · 2,750 in stock | View |
 | MM5Z3V9#C19273108YFW · SOD-523 | YFW | SOD-523 | 2,680 | ₹2.53 · 2,680 in stock | View |
 | MM5Z3V9#C2832569CBI · SOD-523 | CBI | SOD-523 | 2,400 | ₹2.57 · 2,400 in stock | View |
