NexperiaDatasheet (PDF)

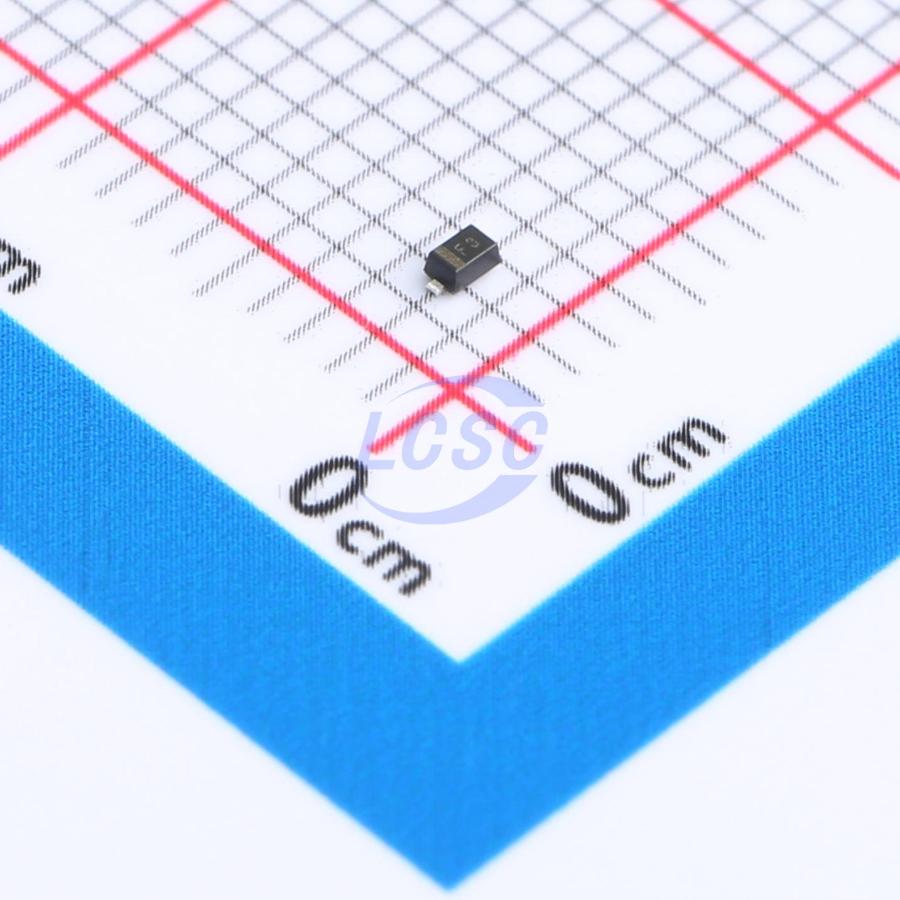

BZX585-C3V0,115
Zener Diode 3V 300mW Surface Mount SOD-523(SC-79)
SOD-523(SC-79)ROHS3 CompliantActive
DIODE ZENER 3V 300mW SOD-523(SC-79)
- Manufacturer
- Nexperia
- Manufacturer part #
- BZX585-C3V0,115
- Store part #
- C550648
- Package / case
- SOD-523(SC-79)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
600 in stock
#C550648
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.95 | ₹99.50 |
| 100+ | ₹7.96 | ₹796.00 |
| 300+ | ₹6.97 | ₹2,091.00 |
| 3,000+ | ₹6.22 | ₹18,660.00 |
| 6,000+ | ₹5.62 | ₹33,720.00 |
| 9,000+ | ₹5.33 | ₹47,970.00 |
10 × ₹9.95
₹99.50
excl. GST
₹117.41 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZX585-C3V0,115
₹99.50 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 10uA@1V
- Impedance(Zzt)
- 95Ω
- Zener Voltage(Range)
- 2.85V~3.15V
- Zener Voltage(Nom)
- 3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.02 g
Overview
General- purpose Zener diodes in an SOD523 (SC- 79) ultra small flat lead Surface- Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Non-repetitive peak reverse power dissipation: ≤ 40W
- Total power dissipation: ≤ 300mW
- Wide working voltage range: nominal 2.4V to 75V (E24 range)
- Two tolerance series: ± 2% and ± 5%
- Low differential resistance
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MM5Z3V0T1G#C236180onsemi · SOD-523 | onsemi | SOD-523 | 25 | ₹16.01 · 25 in stock | View |
 | BZT52C3V0TQ-7-F#C5248671DIODES · SOD-523 | DIODES | SOD-523 | 2,950 | ₹9.54 · 2,950 in stock | View |
 | MM5Z3V0#C42457466GOODWORK · SOD-523 | GOODWORK | SOD-523 | 2,600 | ₹2.37 · 2,600 in stock | View |
| BZX584C3V0-G3-08#C6136599VISHAY · SOD-523 | VISHAY | SOD-523 | 70 | ₹13.44 · 70 in stock | View | |
 | BZX584C3V0#C51315221CBI · SOD-523 | CBI | SOD-523 | 2,900 | ₹2.12 · 2,900 in stock | View |
