NexperiaDatasheet (PDF)

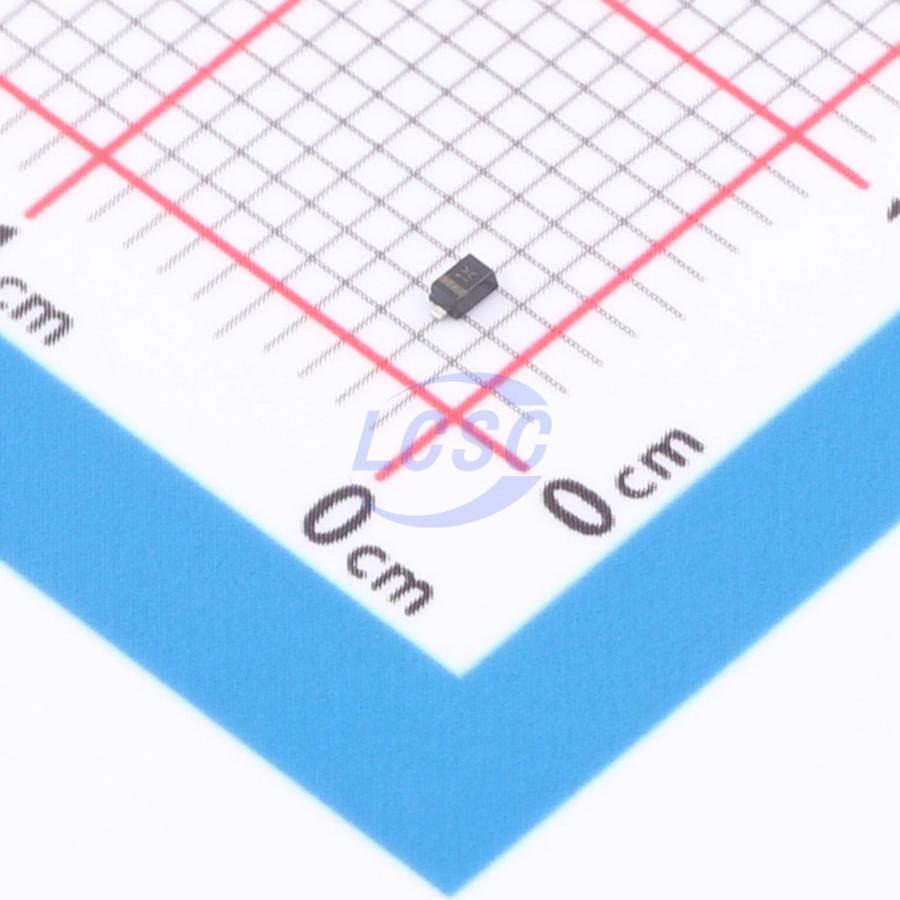

BZX58550-C4V7X
1 Independent 4.47V~4.94V 4.7V SOD-523 Single Zener Diodes RoHS
SOD-523ROHS3 CompliantActive
DIODE ZENER 4.7V 300mW SOD-523
- Manufacturer
- Nexperia
- Manufacturer part #
- BZX58550-C4V7X
- Store part #
- C3732474
- Package / case
- SOD-523
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
285 in stock
#C3732474
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.55 | ₹152.75 |
| 50+ | ₹23.85 | ₹1,192.50 |
| 150+ | ₹21.00 | ₹3,150.00 |
| 500+ | ₹17.41 | ₹8,705.00 |
| 3,000+ | ₹15.82 | ₹47,460.00 |
| 6,000+ | ₹14.87 | ₹89,220.00 |
5 × ₹30.55
₹152.75
excl. GST
₹180.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZX58550-C4V7X
₹152.75 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 5uA@3V
- Zener Voltage(Range)
- 4.47V~4.94V
- Zener Voltage(Nom)
- 4.7V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.081 g
Overview
Low- current voltage regulator diodes in an SOD523 (SC- 79) ultra small and flat lead Surface- Mounted Device (SMD) plastic package.
Applications
- Low-current general regulation functions
Key features
- Total power dissipation: ≤ 300 mW
- Tolerance series: approximately ± 5%
- Working voltage range: nominal 1.8 V to 10 V
- Specified at a low test current (50 μA), ideal for low bias and portable battery-powered applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZX585-C4V7,115#C2998015Nexperia · SOD-523(SC-79) | Nexperia | SOD-523(SC-79) | On request | ₹6.09 · 0 in stock | View |
 | BZX584C4V7#C19272948LGE · SOD-523 | LGE | SOD-523 | 2,080 | ₹2.83 · 2,080 in stock | View |
 | BZX585-B4V7,115#C550612Nexperia · SOD-523(SC-79) | Nexperia | SOD-523(SC-79) | 8,150 | ₹6.24 · 8,150 in stock | View |
 | BZT52C4V7T-7#C151452DIODES · SOD-523 | DIODES | SOD-523 | 1,920 | ₹7.73 · 1,920 in stock | View |
 | BZT52C4V7TQ-7-F#C4555385DIODES · SOD-523 | DIODES | SOD-523 | 10 | ₹8.04 · 10 in stock | View |
