NexperiaDatasheet (PDF)

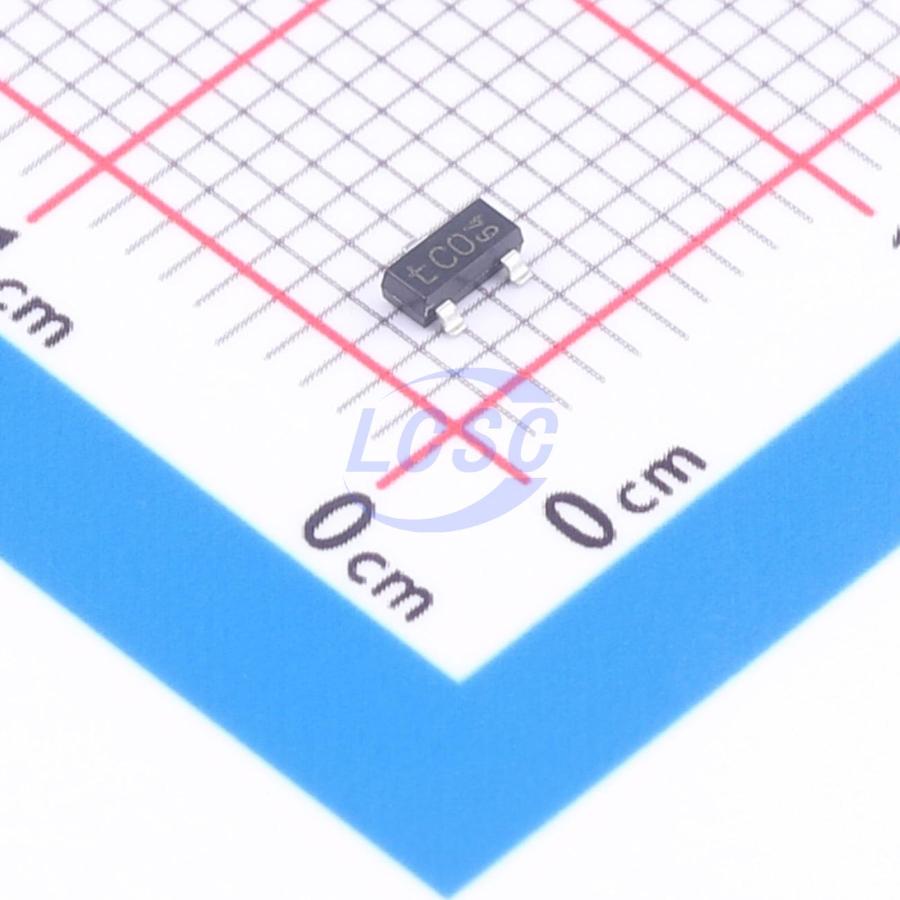

BZX84-A13-QR
1 Independent 12.87V~13.13V 13V SOT-23(TO-236AB) Single Zener Diodes RoHS
SOT-23(TO-236AB)ROHS CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- BZX84-A13-QR
- Store part #
- C7508159
- Package / case
- SOT-23(TO-236AB)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C7508159
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹122.50 | ₹122.50 |
| 10+ | ₹119.68 | ₹1,196.80 |
| 30+ | ₹117.72 | ₹3,531.60 |
| 100+ | ₹115.55 | ₹11,555.00 |
1 × ₹122.50
₹122.50
excl. GST
₹144.55 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZX84-A13-QR
₹122.50 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±1%
- Operating Junction Temperature Range
- -40℃~+150℃
- Pd - Power Dissipation
- 250mW
- Reverse Leakage Current (Ir)
- 100nA@8V
- Impedance(Zzt)
- 30Ω
- Zener Voltage(Range)
- 12.87V~13.13V
- Zener Voltage(Nom)
- 13V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.055 g
Overview
Low- power voltage regulator diodes in a small SOT23 (TO- 236AB) Surface- Mounted Device (SMD) plastic package. The diodes are available in the normalized E24 ± 1% (BZX84- A), ± 2% (BZX84- B) and approximately ± 5% (BZX84- C) tolerance range. The series includes 37 breakdown voltages with nominal working voltages from 2.4 V to 75 V.
Applications
- General regulation functions
Key features
- Total power dissipation: ≤ 250 mW
- Three tolerance series: ± 1%, ± 2% and approximately ± 5%
- Working voltage range: nominal 2.4 V to 75 V (E24 range)
- Non-repetitive peak reverse power dissipation: ≤ 40 W
- Qualified according to AEC-Q101 and recommended for use in automotive applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZX84-B13,235#C550908Nexperia · SOT-23(TO-236AB) | Nexperia | SOT-23(TO-236AB) | 39,580 | ₹4.87 · 39,580 in stock | View |
| BZX84-C13,235#C550936Nexperia · SOT-23(TO-236AB) | Nexperia | SOT-23(TO-236AB) | 6,580 | ₹3.63 · 6,580 in stock | View | |
 | BZX84-C13-QVL#C7508254Nexperia · SOT-23(TO-236AB) | Nexperia | SOT-23(TO-236AB) | 100 | ₹16.29 · 100 in stock | View |
 | BZX84B13_R1_00001#C188539PANJIT · SOT-23 | PANJIT | SOT-23 | 2,100 | ₹3.51 · 2,100 in stock | View |
 | BZX84B13#C968215YANGJIE · SOT-23(TO-236) | YANGJIE | SOT-23(TO-236) | 460 | ₹3.73 · 460 in stock | View |
