NexperiaDatasheet (PDF)

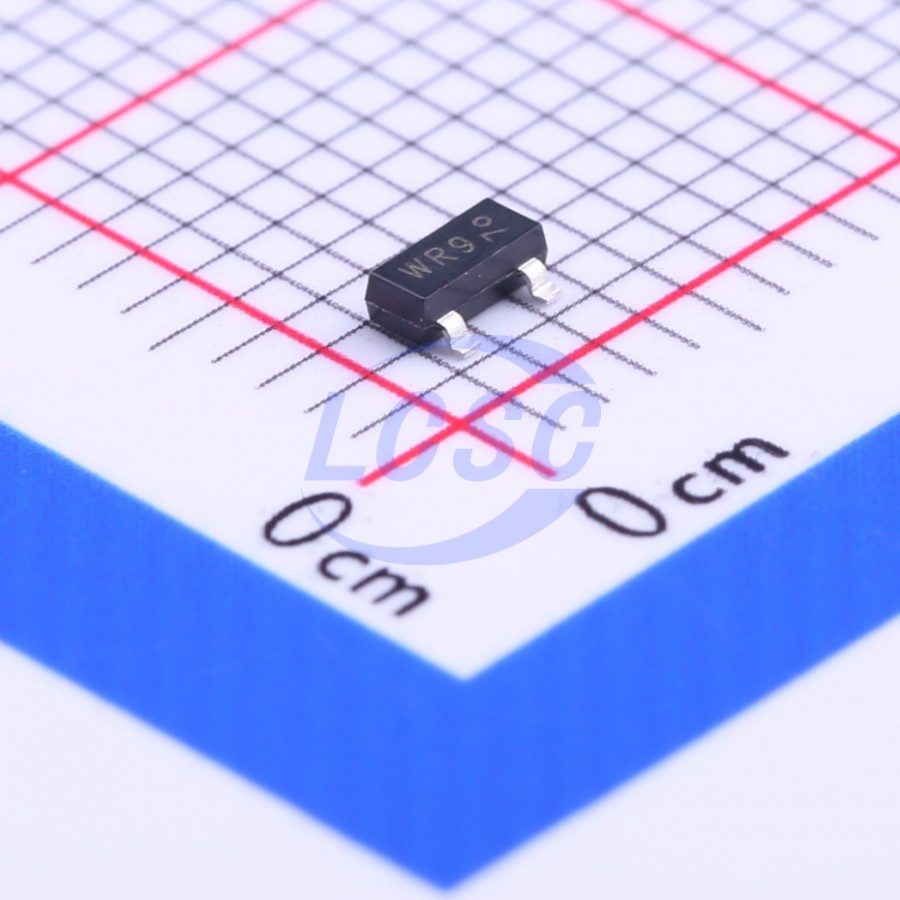

BZX84-B8V2,215
Zener Diode Independent 8.2V 250mW Surface Mount SOT-23(TO-236AB)
SOT-23(TO-236AB)ROHS3 CompliantActive
DIODE ZENER 8.2V 250mW SOT-23(TO-236AB)
- Manufacturer
- Nexperia
- Manufacturer part #
- BZX84-B8V2,215
- Store part #
- C208500
- Package / case
- SOT-23(TO-236AB)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,350 in stock
#C208500
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.38 | ₹73.80 |
| 100+ | ₹5.76 | ₹576.00 |
| 300+ | ₹4.93 | ₹1,479.00 |
| 3,000+ | ₹3.96 | ₹11,880.00 |
| 6,000+ | ₹3.47 | ₹20,820.00 |
| 9,000+ | ₹3.21 | ₹28,890.00 |
10 × ₹7.38
₹73.80
excl. GST
₹87.08 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZX84-B8V2,215
₹73.80 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Pd - Power Dissipation
- 250mW
- Reverse Leakage Current (Ir)
- 700nA@5V
- Impedance(Zzt)
- 15Ω
- Zener Voltage(Range)
- 8.04V~8.36V
- Zener Voltage(Nom)
- 8.2V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.024 g
Overview
Low- power voltage regulator diodes in a small SOT23 (TO- 236AB) Surface- Mounted Device (SMD) plastic package. The diodes are available in the normalized E24 ± 1% (BZX84- A), ± 2% (BZX84- B) and approximately ± 5% (BZX84- C) tolerance range. The series includes 37 breakdown voltages with nominal working voltages from 2.4 V to 75 V.
Applications
- General regulation functions
Key features
- Total power dissipation: ≤ 250 mW
- Three tolerance series: ± 1%, ± 2% and approximately ± 5%
- Working voltage range: nominal 2.4 V to 75 V (E24 range)
- Non-repetitive peak reverse power dissipation: ≤ 40 W
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZX84-B8V2-QR#C7508244Nexperia · SOT-23(TO-236AB) | Nexperia | SOT-23(TO-236AB) | 205 | ₹15.49 · 205 in stock | View |
 | BZX84-B8V2,235#C550932Nexperia · SOT-23(TO-236AB) | Nexperia | SOT-23(TO-236AB) | 125 | ₹15.20 · 125 in stock | View |
 | BZX84B8V2LT1G#C236200onsemi · SOT-23 | onsemi | SOT-23 | 305 | ₹13.38 · 305 in stock | View |
 | BZX84B8V2Q-7-F#C6522918DIODES · SOT-23-3 | DIODES | SOT-23-3 | 100 | ₹32.33 · 100 in stock | View |
 | BZX84-C8V2,215#C143854Nexperia · SOT-23(TO-236AB) | Nexperia | SOT-23(TO-236AB) | 30,640 | ₹7.20 · 30,640 in stock | View |
