NexperiaDatasheet (PDF)

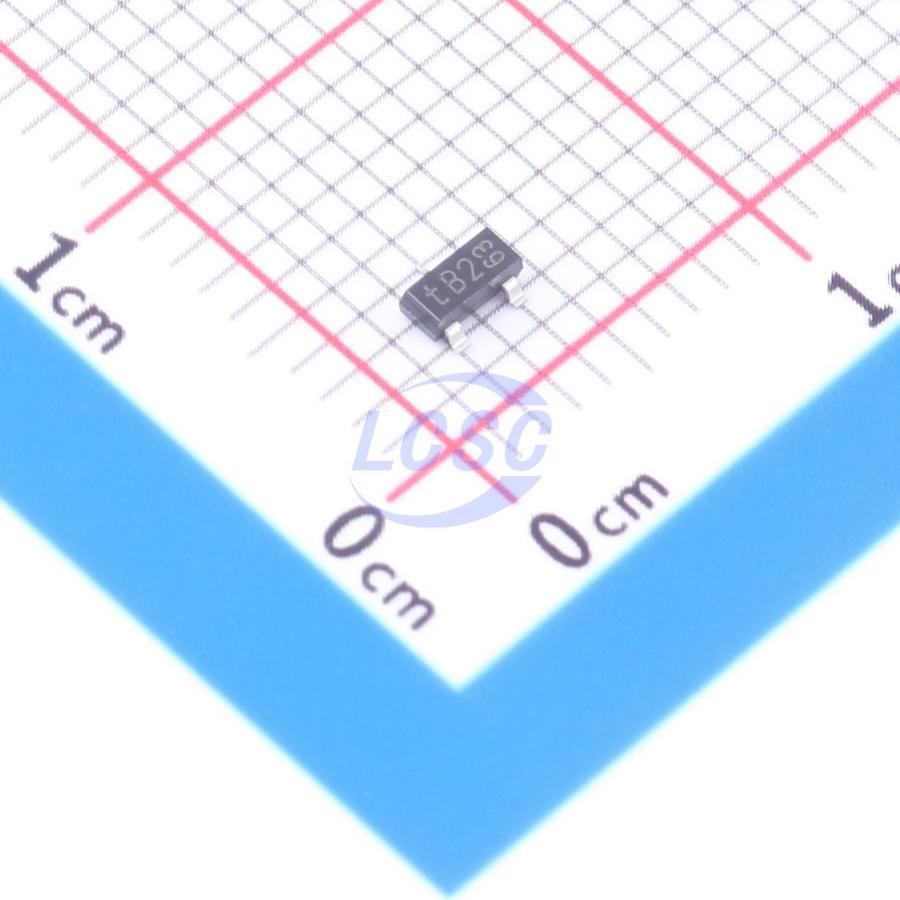

BZX84-C3V6-QR
1 Independent 3.4V~3.8V 3.6V SOT-23(TO-236AB) Single Zener Diodes RoHS
SOT-23(TO-236AB)ROHS CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- BZX84-C3V6-QR
- Store part #
- C7508285
- Package / case
- SOT-23(TO-236AB)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C7508285
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.67 | ₹73.35 |
| 50+ | ₹14.37 | ₹718.50 |
| 150+ | ₹14.16 | ₹2,124.00 |
| 500+ | ₹13.94 | ₹6,970.00 |
5 × ₹14.67
₹73.35
excl. GST
₹86.55 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZX84-C3V6-QR
₹73.35 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Pd - Power Dissipation
- 250mW
- Reverse Leakage Current (Ir)
- 5uA@1V
- Impedance(Zzt)
- 90Ω
- Zener Voltage(Range)
- 3.4V~3.8V
- Zener Voltage(Nom)
- 3.6V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.085 g
Overview
Low- power voltage regulator diodes in a small SOT23 (TO- 236AB) Surface- Mounted Device (SMD) plastic package. The diodes are available in the normalized E24 ± 1% (BZX84- A), ± 2% (BZX84- B) and approximately ± 5% (BZX84- C) tolerance range. The series includes 37 breakdown voltages with nominal working voltages from 2.4 V to 75 V.
Applications
- General regulation functions
Key features
- Total power dissipation: ≤ 250 mW
- Three tolerance series: ± 1%, ± 2% and approximately ± 5%
- Working voltage range: nominal 2.4 V to 75 V (E24 range)
- Non-repetitive peak reverse power dissipation: ≤ 40 W
- Qualified according to AEC-Q101 and recommended for use in automotive applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZX84-C3V6,215#C96230Nexperia · SOT-23(TO-236AB) | Nexperia | SOT-23(TO-236AB) | 21,150 | ₹2.46 · 21,150 in stock | View |
 | SZBZX84C3V6LT1G#C894479onsemi · SOT-23 | onsemi | SOT-23 | 140 | ₹8.06 · 140 in stock | View |
 | BZX84C3V6LT1G#C94413onsemi · SOT-23 | onsemi | SOT-23 | 8,870 | ₹5.90 · 8,870 in stock | View |
 | BZX84C3V6-TP#C3734704MCC · SOT-23 | MCC | SOT-23 | 1,580 | ₹4.80 · 1,580 in stock | View |
 | TPZ3V6CS3#C7603383TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 6,500 | ₹3.24 · 6,500 in stock | View |
