DIODESDatasheet (PDF)

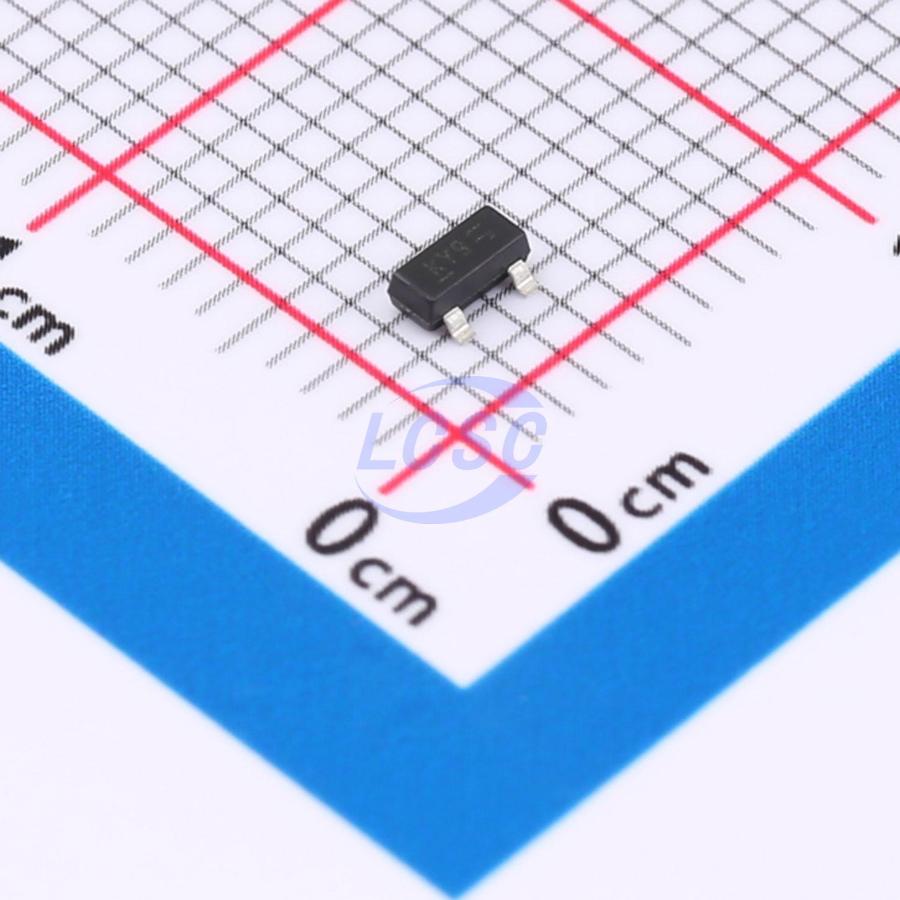

BZX84B24Q-7-F
Zener Diode 24V 350mW Surface Mount SOT-23-3
SOT-23-3ROHS3 CompliantActive
DIODE ZENER 24V 350mW SOT-23-3
- Manufacturer
- DIODES
- Manufacturer part #
- BZX84B24Q-7-F
- Store part #
- C6870150
- Package / case
- SOT-23-3
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
110 in stock
#C6870150
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.55 | ₹65.50 |
| 100+ | ₹6.46 | ₹646.00 |
| 300+ | ₹6.40 | ₹1,920.00 |
| 1,000+ | ₹6.34 | ₹6,340.00 |
10 × ₹6.55
₹65.50
excl. GST
₹77.29 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZX84B24Q-7-F
₹65.50 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 350mW
- Reverse Leakage Current (Ir)
- 100nA
- Impedance(Zzt)
- 70Ω
- Zener Voltage(Range)
- 23.5V~24.5V
- Zener Voltage(Nom)
- 24V
- Impedance(Zzk)
- 250Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.035 g
Overview
Key features
- ±2% Tolerance on Vz
- 350mW Power Dissipation
- Zener Voltages from 2.7V - 39V
- Ideally Suited for Automated Assembly Processes
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- Qualified to AEC-Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZX84B24#C968222YANGJIE · SOT-23(TO-236) | YANGJIE | SOT-23(TO-236) | 80 | ₹3.43 · 80 in stock | View |
 | BZX84C24-7-F#C460818DIODES · SOT-23 | DIODES | SOT-23 | 100 | ₹5.01 · 100 in stock | View |
 | BZX84C24#C841152LGE · SOT-23 | LGE | SOT-23 | 900 | ₹2.69 · 900 in stock | View |
 | BZX84B24#C41433742YFW · SOT-23 | YFW | SOT-23 | 2,060 | ₹2.94 · 2,060 in stock | View |
 | BZX84B24#C51315238CBI · SOT-23 | CBI | SOT-23 | 2,950 | ₹1.98 · 2,950 in stock | View |
