onsemiDatasheet (PDF)

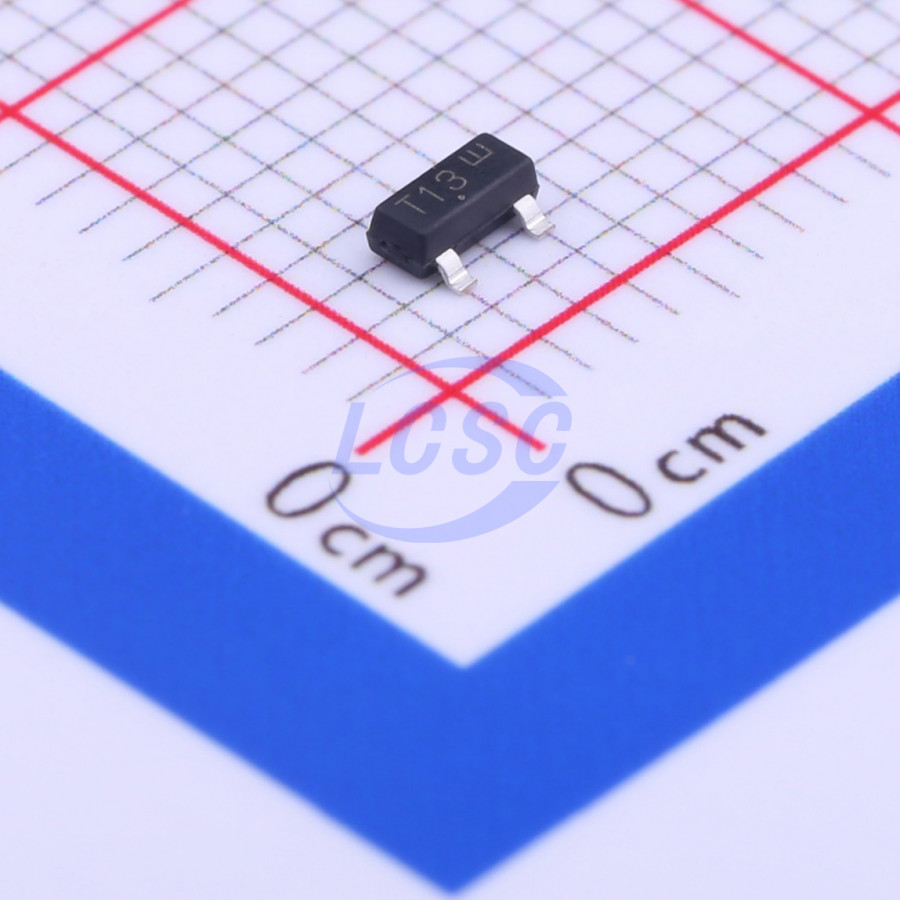

BZX84B6V2LT1G
Zener Diode Independent 6.2V Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
DIODE ZENER 6.2V SOT-23
- Manufacturer
- onsemi
- Manufacturer part #
- BZX84B6V2LT1G
- Store part #
- C327479
- Package / case
- SOT-23
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
830 in stock
#C327479
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.83 | ₹169.15 |
| 50+ | ₹28.10 | ₹1,405.00 |
| 150+ | ₹25.65 | ₹3,847.50 |
| 500+ | ₹22.60 | ₹11,300.00 |
| 3,000+ | ₹21.23 | ₹63,690.00 |
| 6,000+ | ₹20.41 | ₹1,22,460.00 |
5 × ₹33.83
₹169.15
excl. GST
₹199.60 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZX84B6V2LT1G
₹169.15 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Reverse Leakage Current (Ir)
- 3uA@4V
- Impedance(Zzt)
- 10Ω
- Zener Voltage(Range)
- 6.08V~6.32V
- Zener Voltage(Nom)
- 6.2V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
This series of Zener diodes is offered in the convenient, surface mount plastic SOT−23 package. These devices are designed to provide voltage regulation with minimum space requirement. They are well suited for applications such as cellular phones, hand held portables, and high density PC boards.
Applications
- cellular phones
- hand held portables
- high density PC boards
Key features
- 250 mW Rating on FR−4 or FR−5 Board
- Zener Breakdown Voltage Range - 2.4 V to 75 V
- Package Designed for Optimal Automated Board Assembly
- Small Package Size for High Density Applications
- ESD Rating of Class 3 (>16 kV) per Human Body Model
- Tight Tolerance Series Available
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
- These Devices are Pb−Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZX84C6V2LT1G-TP#C46472861TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 1,400 | ₹2.17 · 1,400 in stock | View |
| BZX84B6V2#C41433737YFW · SOT-23 | YFW | SOT-23 | 2,960 | ₹3.27 · 2,960 in stock | View | |
 | BZX84B6V2#C51315249CBI · SOT-23 | CBI | SOT-23 | 1,250 | ₹1.97 · 1,250 in stock | View |
 | BZX84B6V2Q-7-F#C6136654DIODES · SOT-23 | DIODES | SOT-23 | 10 | ₹7.04 · 10 in stock | View |
 | BZX84B6V2-E3-08#C3738528VISHAY · SOT-23 | VISHAY | SOT-23 | 404 | ₹72.37 · 404 in stock | View |
