VISHAYDatasheet (PDF)

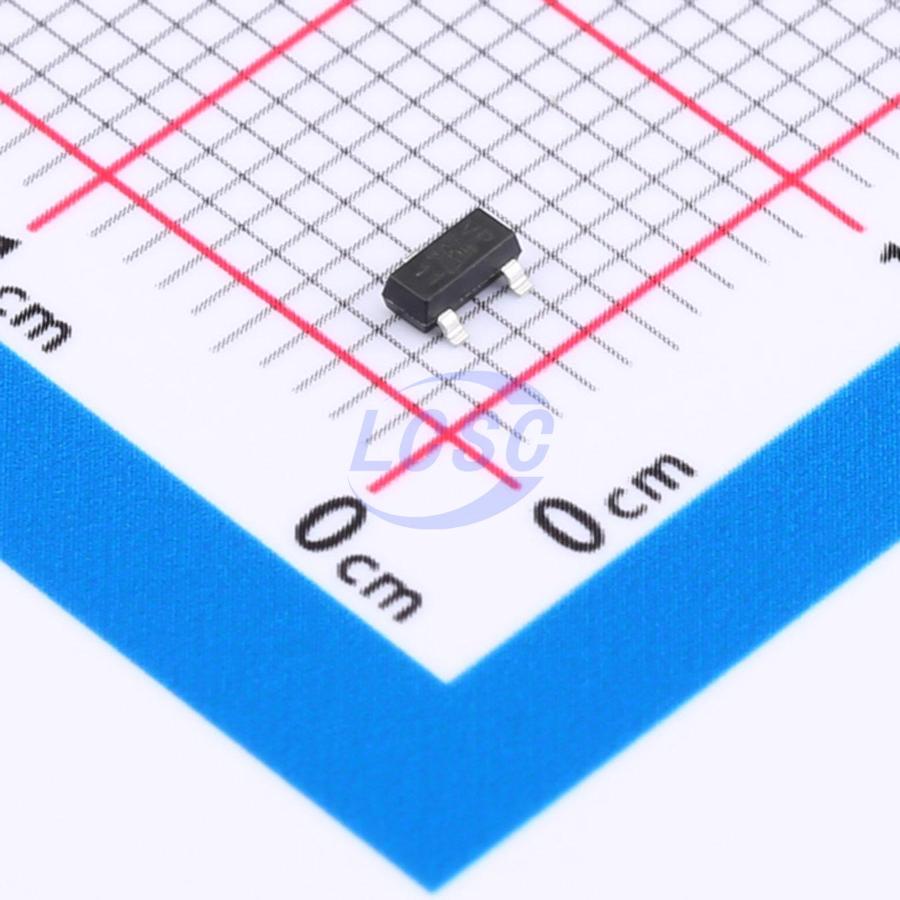

BZX84B9V1-E3-08
Zener Diode Independent 9.1V 300mW Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
DIODE ZENER 9.1V 300mW SOT-23
- Manufacturer
- VISHAY
- Manufacturer part #
- BZX84B9V1-E3-08
- Store part #
- C3730647
- Package / case
- SOT-23
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
160 in stock
#C3730647
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.73 | ₹57.30 |
| 100+ | ₹4.56 | ₹456.00 |
| 300+ | ₹3.98 | ₹1,194.00 |
| 3,000+ | ₹3.55 | ₹10,650.00 |
| 6,000+ | ₹3.19 | ₹19,140.00 |
| 9,000+ | ₹3.02 | ₹27,180.00 |
10 × ₹5.73
₹57.30
excl. GST
₹67.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZX84B9V1-E3-08
₹57.30 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 500nA@6V
- Impedance(Zzt)
- 15Ω
- Zener Voltage(Range)
- 8.92V~9.28V
- Zener Voltage(Nom)
- 9.1V
- Impedance(Zzk)
- 100Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
Key features
- Silicon planar Zener diode
- Zener voltage graded per international E24 standard; standard Zener voltage tolerance ±5%, designated "C" in order code; replace "C" with "B" for ±2% tolerance
- AEC-Q101 qualified version available
- ESD capability per AEC-Q101: Human Body Model >8 kV, Machine Model >800 V
- RoHS compliant, commercial grade
- RoHS compliant, AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZX84B9V1#C7421023AnBon · SOT-23 | AnBon | SOT-23 | 2,900 | ₹2.33 · 2,900 in stock | View |
 | LBZX84C9V1LT1G#C12731LRC · SOT-23 | LRC | SOT-23 | 2,800 | ₹2.53 · 2,800 in stock | View |
 | AD-BZX84C9V1#C2975811JSCJ · SOT-23 | JSCJ | SOT-23 | 80 | ₹2.65 · 80 in stock | View |
 | BZX84C9V1LT1G-TP#C46472858TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,750 | ₹2.26 · 2,750 in stock | View |
| BZX84C9V1#C7421029AnBon · SOT-23 | AnBon | SOT-23 | 2,950 | ₹2.20 · 2,950 in stock | View | |
