VISHAYDatasheet (PDF)

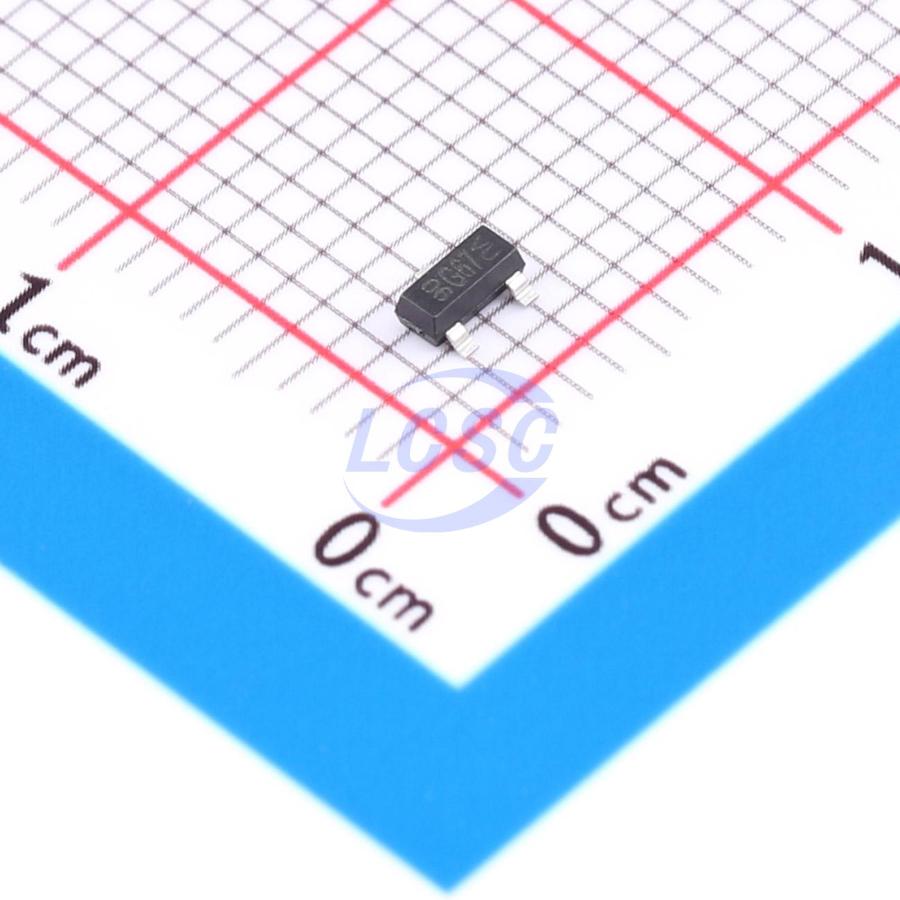

BZX84C12-HE3_A-08
1 Independent 11.4V~12.6V 12V SOT-23(TO-236) Single Zener Diodes RoHS
SOT-23(TO-236)ROHS CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- BZX84C12-HE3_A-08
- Store part #
- C20568187
- Package / case
- SOT-23(TO-236)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C20568187
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.84 | ₹159.20 |
| 50+ | ₹25.34 | ₹1,267.00 |
| 150+ | ₹22.56 | ₹3,384.00 |
| 500+ | ₹19.08 | ₹9,540.00 |
| 3,000+ | ₹17.53 | ₹52,590.00 |
| 6,000+ | ₹16.60 | ₹99,600.00 |
5 × ₹31.84
₹159.20
excl. GST
₹187.86 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZX84C12-HE3_A-08
₹159.20 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 100nA@1V
- Impedance(Zzt)
- 25Ω
- Zener Voltage(Range)
- 11.4V~12.6V
- Zener Voltage(Nom)
- 12V
- Impedance(Zzk)
- 150Ω
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.035 g
Overview
Key features
- Silicon planar Zener diode
- Zener voltage graded per international E24 standard; standard Zener voltage tolerance ±5%, designated "C" in order code; replace "C" with "B" for ±2% tolerance
- AEC-Q101 qualified version available
- ESD capability per AEC-Q101: Human Body Model >8 kV, Machine Model >800 V
- RoHS compliant, commercial grade
- RoHS compliant, AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LBZX84C12LT1G#C12773LRC · SOT-23 | LRC | SOT-23 | 6,400 | ₹2.54 · 6,400 in stock | View |
 | BZX84C12#C19077471R+O · SOT-23 | R+O | SOT-23 | 39,000 | ₹2.37 · 39,000 in stock | View |
 | BZX84C12#C2843309Slkor · SOT-23 | Slkor | SOT-23 | 3,020 | ₹2.98 · 3,020 in stock | View |
 | BZX84C12#C41364475GOODWORK · SOT-23 | GOODWORK | SOT-23 | 1,450 | ₹2.00 · 1,450 in stock | View |
 | BZX84C12LT1G-TP#C46472874TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 3,000 | ₹2.25 · 3,000 in stock | View |
