VISHAYDatasheet (PDF)

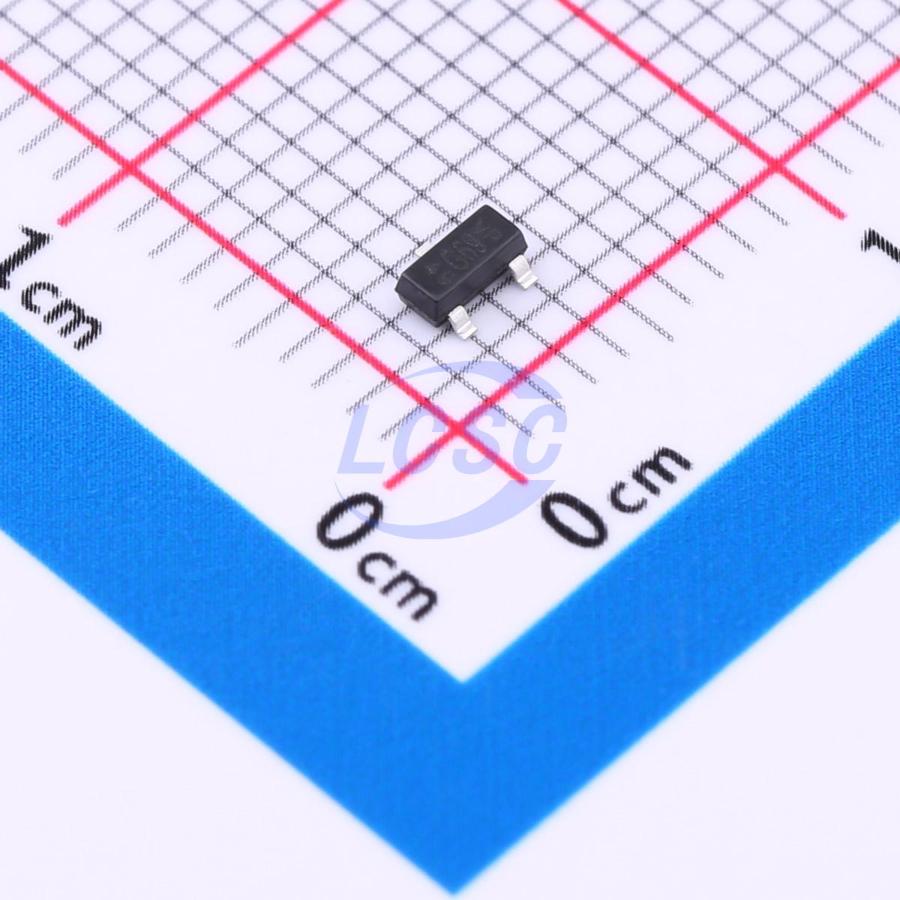

BZX84C15-G3-08
Zener Diode Independent 15V 300mW Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
DIODE ZENER 15V 300mW SOT-23
- Manufacturer
- VISHAY
- Manufacturer part #
- BZX84C15-G3-08
- Store part #
- C3734320
- Package / case
- SOT-23
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
875 in stock
#C3734320
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹7.22 | ₹36.10 |
| 50+ | ₹7.06 | ₹353.00 |
| 150+ | ₹6.97 | ₹1,045.50 |
| 500+ | ₹6.87 | ₹3,435.00 |
5 × ₹7.22
₹36.10
excl. GST
₹42.60 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZX84C15-G3-08
₹36.10 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 50nA
- Impedance(Zzt)
- 30Ω
- Zener Voltage(Range)
- 14.25V~15.6V
- Zener Voltage(Nom)
- 15V
- Impedance(Zzk)
- 200Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.035 g
Overview
Key features
- Silicon planar Zener diodes
- The Zener voltages are graded according to the international E24 standard. Standard Zener voltage tolerance is ± 5%, indicated by the "C" in the ordering code. Replace "C" with "B" for ± 2% tolerance.
- AEC-Q101 qualified available (part number on request)
- ESD capability acc. to AEC-Q101: human body model: >8 kV, machine model: >800 V
- green, commercial grade
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LBZX84C15LT1G#C12764LRC · SOT-23 | LRC | SOT-23 | 6,050 | ₹2.83 · 6,050 in stock | View |
 | BZX84C15#C19077472R+O · SOT-23 | R+O | SOT-23 | 31,850 | ₹2.59 · 31,850 in stock | View |
 | BZX84C15#C41364474GOODWORK · SOT-23 | GOODWORK | SOT-23 | 1,900 | ₹2.09 · 1,900 in stock | View |
 | BZX84C15LT1G-TP#C46472875TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 6,150 | ₹2.26 · 6,150 in stock | View |
 | BZX84C15#C2910160JSCJ · SOT-23 | JSCJ | SOT-23 | 13,440 | ₹4.33 · 13,440 in stock | View |
