VISHAYDatasheet (PDF)

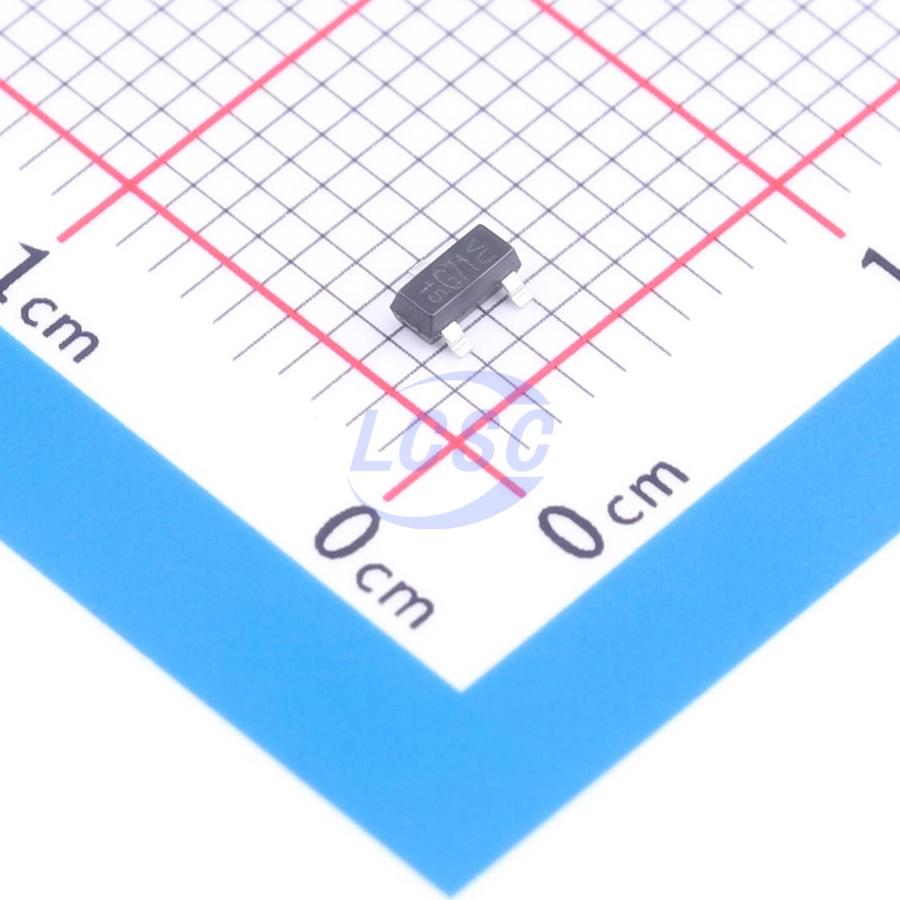

BZX84C18-HE3_A-08
1 Independent 17.1V~18.9V 18V SOT-23(TO-236) Single Zener Diodes RoHS
SOT-23(TO-236)ROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- BZX84C18-HE3_A-08
- Store part #
- C20570194
- Package / case
- SOT-23(TO-236)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
477 in stock
#C20570194
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹63.97 | ₹63.97 |
| 10+ | ₹50.96 | ₹509.60 |
| 30+ | ₹45.33 | ₹1,359.90 |
| 100+ | ₹38.38 | ₹3,838.00 |
| 500+ | ₹35.13 | ₹17,565.00 |
| 1,000+ | ₹33.39 | ₹33,390.00 |
1 × ₹63.97
₹63.97
excl. GST
₹75.48 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 15,000 per reel
BZX84C18-HE3_A-08
₹63.97 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 50nA@12.6V
- Impedance(Zzt)
- 45Ω
- Zener Voltage(Range)
- 17.1V~18.9V
- Zener Voltage(Nom)
- 18V
- Impedance(Zzk)
- 220Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 15,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.025 g
Overview
Key features
- Silicon planar Zener diode
- Zener voltage graded per international E24 standard; standard Zener voltage tolerance ±5%, designated "C" in order code; replace "C" with "B" for ±2% tolerance
- AEC-Q101 qualified version available
- ESD capability per AEC-Q101: Human Body Model >8 kV, Machine Model >800 V
- RoHS compliant, commercial grade
- RoHS compliant, AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZX84C18#C7427997NH · SOT-23 | NH | SOT-23 | 2,850 | ₹2.12 · 2,850 in stock | View |
 | LBZX84C18LT1G#C35678LRC · SOT-23 | LRC | SOT-23 | 13,020 | ₹3.68 · 13,020 in stock | View |
 | BZX84C18#C19077473R+O · SOT-23 | R+O | SOT-23 | 4,37,300 | ₹2.46 · 4,37,300 in stock | View |
 | BZX84C18#C2910171JSCJ · SOT-23 | JSCJ | SOT-23 | 4,520 | ₹3.56 · 4,520 in stock | View |
 | BZX84C18#C2993097MDD(Microdiode Semiconductor) · SOT-23 | MDD(Microdiode Semiconductor) | SOT-23 | 1,110 | ₹2.84 · 1,110 in stock | View |
