DIODESDatasheet (PDF)

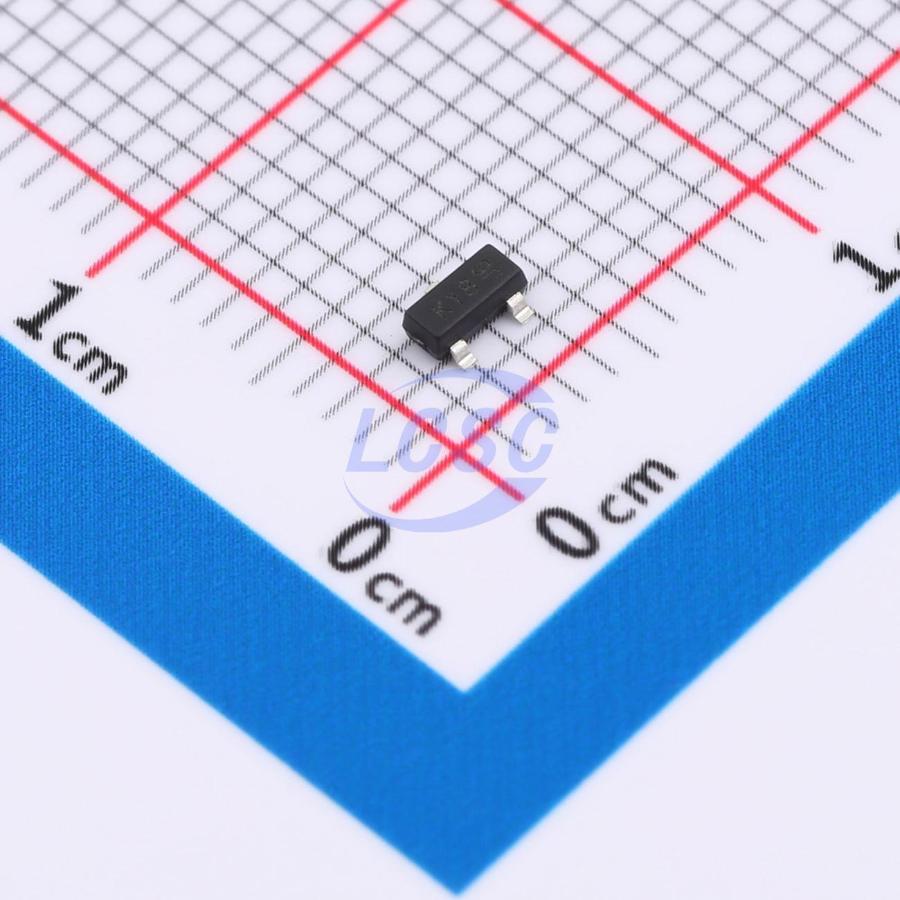

BZX84C22Q-7-F
Zener Diode 22V 350mW Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
DIODE ZENER 22V 350mW SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- BZX84C22Q-7-F
- Store part #
- C5584744
- Package / case
- SOT-23
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C5584744
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.95 | ₹69.50 |
| 100+ | ₹6.85 | ₹685.00 |
| 300+ | ₹6.79 | ₹2,037.00 |
| 1,000+ | ₹6.72 | ₹6,720.00 |
10 × ₹6.95
₹69.50
excl. GST
₹82.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZX84C22Q-7-F
₹69.50 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 350mW
- Reverse Leakage Current (Ir)
- 100nA
- Impedance(Zzt)
- 55Ω
- Zener Voltage(Range)
- 20.8V~23.3V
- Zener Voltage(Nom)
- 22V
- Impedance(Zzk)
- 250Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.031 g
Overview
Key features
- Planar Die Construction
- 350mW Power Dissipation
- Zener Voltages from 2.4V - 51V
- Ideally Suited for Automated Assembly Processes
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- Qualified to AEC-Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZX84C22#C841168LGE · SOT-23 | LGE | SOT-23 | 640 | ₹2.32 · 640 in stock | View |
 | BZX84C22#C42436592TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 4,450 | ₹2.34 · 4,450 in stock | View |
 | TPZ22VCS3#C42436649TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 3,000 | ₹3.37 · 3,000 in stock | View |
 | BZX84C22#C499789SMC · SOT-23 | SMC | SOT-23 | 2,180 | ₹4.29 · 2,180 in stock | View |
 | BZX84C22#C968253YANGJIE · SOT-23 | YANGJIE | SOT-23 | 1,400 | ₹3.31 · 1,400 in stock | View |
