DIODESDatasheet (PDF)

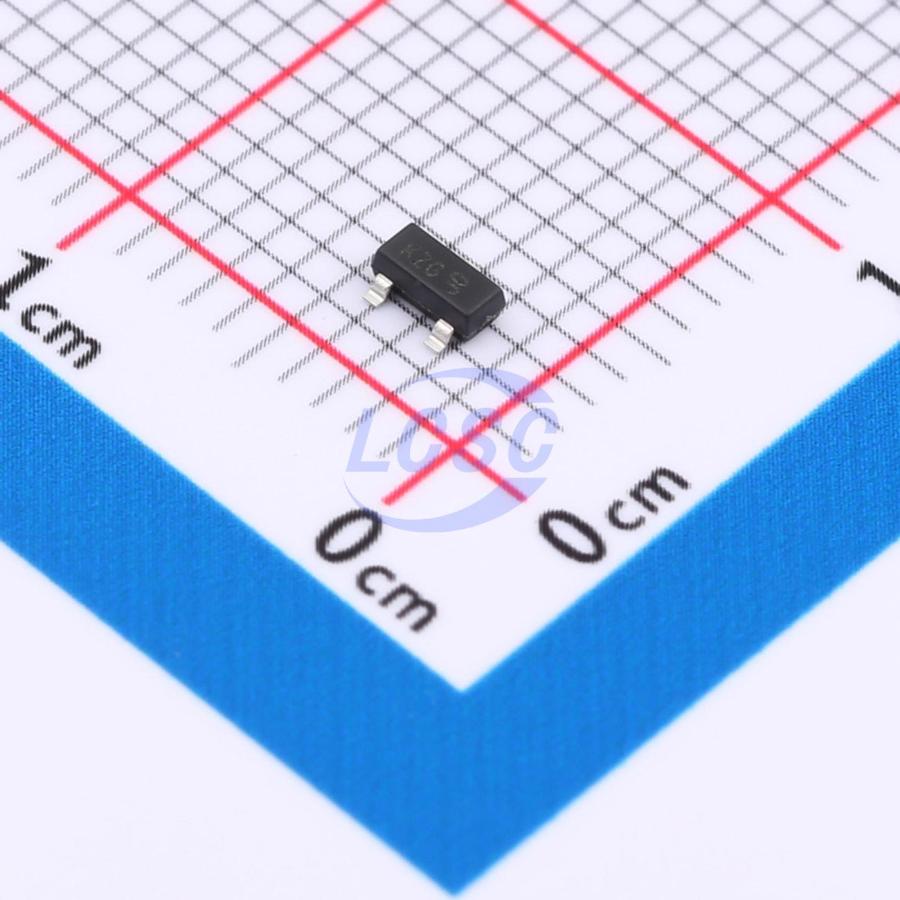

BZX84C3V9Q-13-F
Zener Diode 3.9V 350mW Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
DIODE ZENER 3.9V 350mW SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- BZX84C3V9Q-13-F
- Store part #
- C7093915
- Package / case
- SOT-23
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
110 in stock
#C7093915
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.08 | ₹70.80 |
| 100+ | ₹6.99 | ₹699.00 |
| 300+ | ₹6.91 | ₹2,073.00 |
| 1,000+ | ₹6.84 | ₹6,840.00 |
10 × ₹7.08
₹70.80
excl. GST
₹83.54 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
BZX84C3V9Q-13-F
₹70.80 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 350mW
- Reverse Leakage Current (Ir)
- 3uA@1V
- Impedance(Zzt)
- 90Ω
- Zener Voltage(Range)
- 3.7V~4.1V
- Zener Voltage(Nom)
- 3.9V
- Impedance(Zzk)
- 600Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.026 g
Overview
Key features
- Planar Die Construction
- 350mW Power Dissipation
- Zener Voltages from 2.4V - 51V
- Ideally Suited for Automated Assembly Processes
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- Qualified to AEC-Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZX84C3V9#C5244782DIODES · SOT-23 | DIODES | SOT-23 | 105 | ₹15.69 · 105 in stock | View |
 | BZX84C3V9Q-7-F#C5244783DIODES · SOT-23 | DIODES | SOT-23 | 90 | ₹24.29 · 90 in stock | View |
 | BZX84C3V9#C7471754LGE · SOT-23 | LGE | SOT-23 | 1,250 | ₹2.45 · 1,250 in stock | View |
 | TPZ3V9CS3#C46472804TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,350 | ₹2.37 · 2,350 in stock | View |
 | BZX84C3V9#C46472835TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,600 | ₹2.26 · 2,600 in stock | View |
