DIODESDatasheet (PDF)

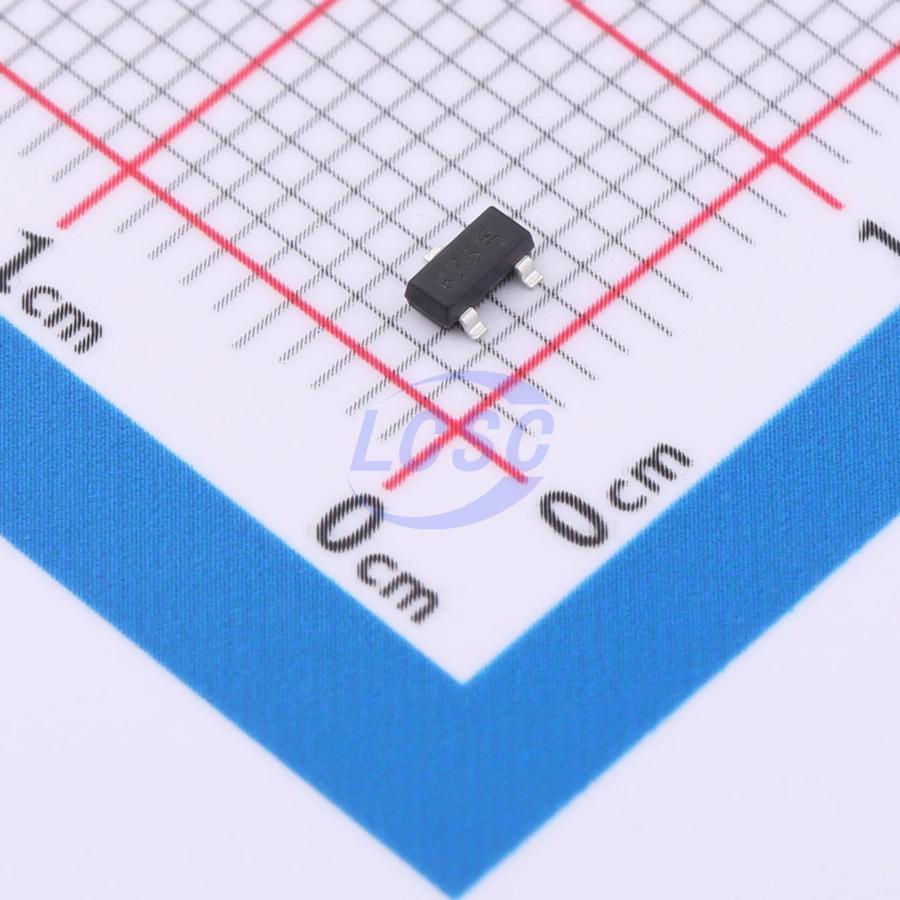

BZX84C7V5Q-13-F
Zener Diode 7.5V 350mW Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
DIODE ZENER 7.5V 350mW SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- BZX84C7V5Q-13-F
- Store part #
- C6133200
- Package / case
- SOT-23
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
90 in stock
#C6133200
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.51 | ₹65.10 |
| 100+ | ₹6.42 | ₹642.00 |
| 300+ | ₹6.36 | ₹1,908.00 |
| 1,000+ | ₹6.30 | ₹6,300.00 |
10 × ₹6.51
₹65.10
excl. GST
₹76.82 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
BZX84C7V5Q-13-F
₹65.10 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 350mW
- Reverse Leakage Current (Ir)
- 1uA@5V
- Impedance(Zzt)
- 15Ω
- Zener Voltage(Range)
- 7V~7.9V
- Zener Voltage(Nom)
- 7.5V
- Impedance(Zzk)
- 80Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.017 g
Overview
Key features
- Planar Die Construction
- 350mW Power Dissipation
- Zener Voltages from 2.4V - 51V
- Ideally Suited for Automated Assembly Processes
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- Qualified to AEC-Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZX84C7V5Q-7-F#C7093941DIODES · SOT-23 | DIODES | SOT-23 | 5 | ₹10.93 · 5 in stock | View |
 | BZX84C7V5#C841183LGE · SOT-23 | LGE | SOT-23 | 2,050 | ₹2.43 · 2,050 in stock | View |
 | TPZ7V5CS3#C46472797TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,400 | ₹2.37 · 2,400 in stock | View |
 | BZX84C7V5#C46472828TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 1,800 | ₹2.18 · 1,800 in stock | View |
 | BZX84C7V5#C968298YANGJIE · SOT-23 | YANGJIE | SOT-23 | 2,980 | ₹5.03 · 2,980 in stock | View |
