NexperiaDatasheet (PDF)

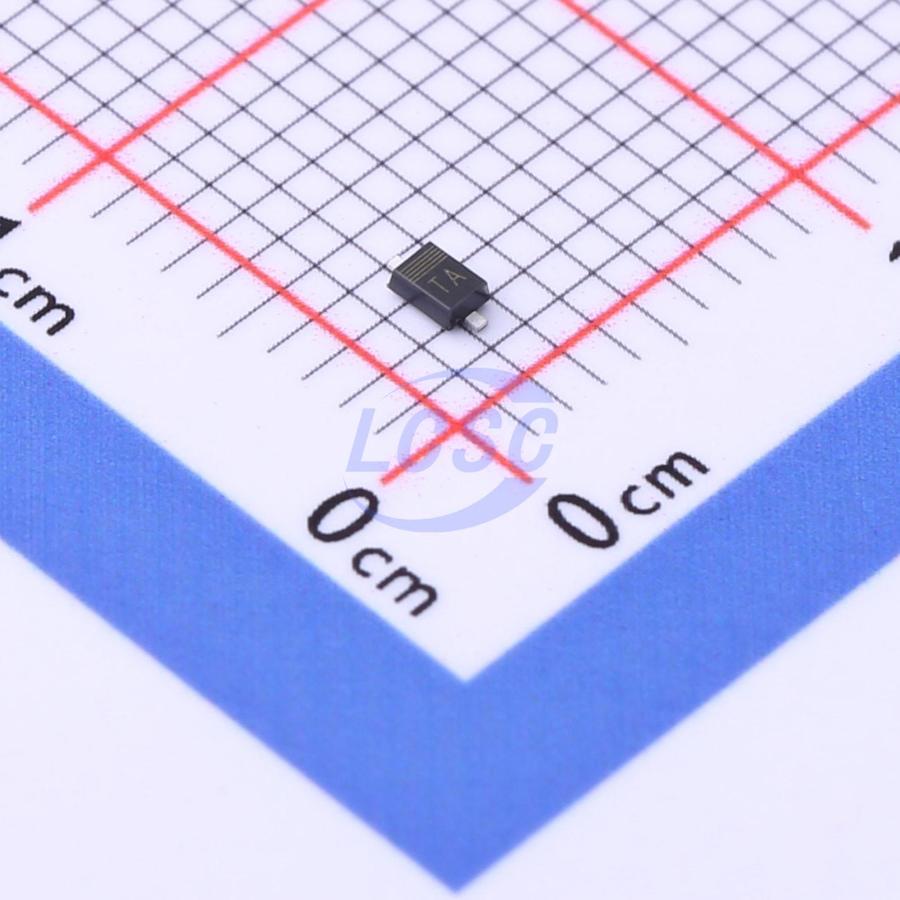

BZX84J-B4V7,115
Zener Diode Independent 4.7V 550mW Surface Mount SOD-323F
SOD-323FROHS3 CompliantActive
DIODE ZENER 4.7V 550mW SOD-323F
- Manufacturer
- Nexperia
- Manufacturer part #
- BZX84J-B4V7,115
- Store part #
- C550986
- Package / case
- SOD-323F
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
215 in stock
#C550986
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.93 | ₹84.65 |
| 50+ | ₹13.40 | ₹670.00 |
| 150+ | ₹11.63 | ₹1,744.50 |
| 500+ | ₹10.31 | ₹5,155.00 |
| 3,000+ | ₹9.23 | ₹27,690.00 |
| 6,000+ | ₹8.71 | ₹52,260.00 |
5 × ₹16.93
₹84.65
excl. GST
₹99.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZX84J-B4V7,115
₹84.65 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Pd - Power Dissipation
- 550mW
- Reverse Leakage Current (Ir)
- 3uA@2V
- Impedance(Zzt)
- 80Ω
- Zener Voltage(Range)
- 4.61V~4.79V
- Zener Voltage(Nom)
- 4.7V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.023 g
Overview
General-purpose Zener diodes in a SOD323F (SC-90) very small and flat lead Surface-Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Non-repetitive peak reverse power dissipation: ≤ 40W
- Total power dissipation: ≤ 550mW
- AEC-Q101 qualified
- Small plastic package suitable for surface-mounted design
- Wide working voltage range: nominal 2.4V to 75V E24 range
- Two tolerance series: ± 2% and ± 5%
- Low differential resistance
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZX84J-C4V7,115#C551023Nexperia · SOD-323F | Nexperia | SOD-323F | 8,780 | ₹7.34 · 8,780 in stock | View |
 | BZX384-B4V7,115#C179389Nexperia · SOD-323 | Nexperia | SOD-323 | 28,070 | ₹7.10 · 28,070 in stock | View |
 | BZT52B4V7S#C22446813Slkor · SOD-323 | Slkor | SOD-323 | 60 | ₹2.79 · 60 in stock | View |
 | BZT52B4V7S#C41433823YFW · SOD-323 | YFW | SOD-323 | 2,340 | ₹2.98 · 2,340 in stock | View |
 | BZT52B4V7S#C51315186CBI · SOD-323 | CBI | SOD-323 | 2,850 | ₹2.12 · 2,850 in stock | View |
