NexperiaDatasheet (PDF)

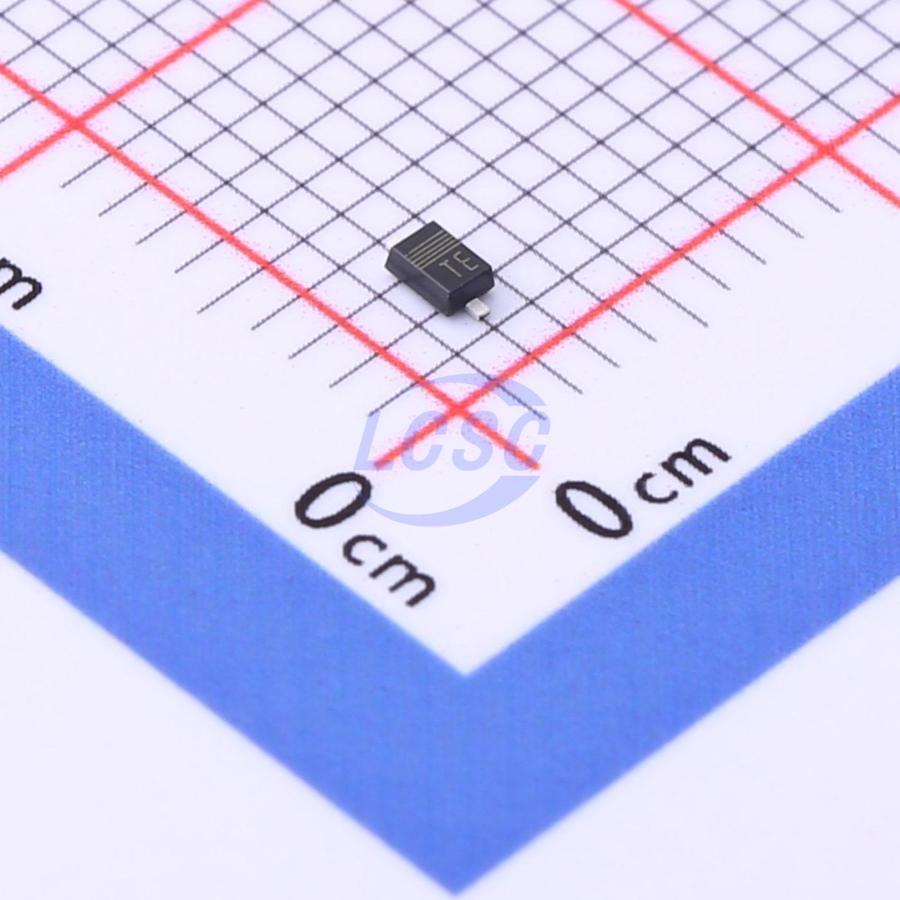

BZX84J-B5V6,115
Zener Diode Independent 5.6V 550mW Surface Mount SOD-323F
SOD-323FROHS3 CompliantActive
DIODE ZENER 5.6V 550mW SOD-323F
- Manufacturer
- Nexperia
- Manufacturer part #
- BZX84J-B5V6,115
- Store part #
- C550989
- Package / case
- SOD-323F
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,580 in stock
#C550989
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.26 | ₹116.30 |
| 50+ | ₹18.16 | ₹908.00 |
| 150+ | ₹15.98 | ₹2,397.00 |
| 500+ | ₹13.26 | ₹6,630.00 |
| 3,000+ | ₹12.05 | ₹36,150.00 |
| 6,000+ | ₹11.32 | ₹67,920.00 |
5 × ₹23.26
₹116.30
excl. GST
₹137.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZX84J-B5V6,115
₹116.30 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 550mW
- Reverse Leakage Current (Ir)
- 1uA@2V
- Impedance(Zzt)
- 40Ω
- Zener Voltage(Range)
- 5.49V~5.71V
- Zener Voltage(Nom)
- 5.6V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.023 g
Overview
General-purpose Zener diodes in a SOD323F (SC-90) very small and flat lead Surface-Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Non-repetitive peak reverse power dissipation: ≤ 40W
- Total power dissipation: ≤ 550mW
- AEC-Q101 qualified
- Small plastic package suitable for surface-mounted design
- Wide working voltage range: nominal 2.4V to 75V E24 range
- Two tolerance series: ± 2% and ± 5%
- Low differential resistance
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52B5V6S#C7427953NH · SOD-323 | NH | SOD-323 | 2,900 | ₹2.04 · 2,900 in stock | View |
 | BZX384-B5V6,115#C179390Nexperia · SOD-323 | Nexperia | SOD-323 | 22,560 | ₹3.25 · 22,560 in stock | View |
 | BZX384B5V6-E3-08#C241958VISHAY · SOD-323 | VISHAY | SOD-323 | 8,400 | ₹13.81 · 8,400 in stock | View |
 | PDZ5.6B,115-JSM#C49364251JSMSEMI · SOD-323 | JSMSEMI | SOD-323 | 120 | ₹3.07 · 120 in stock | View |
| MM3Z5V6-TD#C51902115TDSEMIC · SOD-323 | TDSEMIC | SOD-323 | 1,400 | ₹2.58 · 1,400 in stock | View | |
