NexperiaDatasheet (PDF)

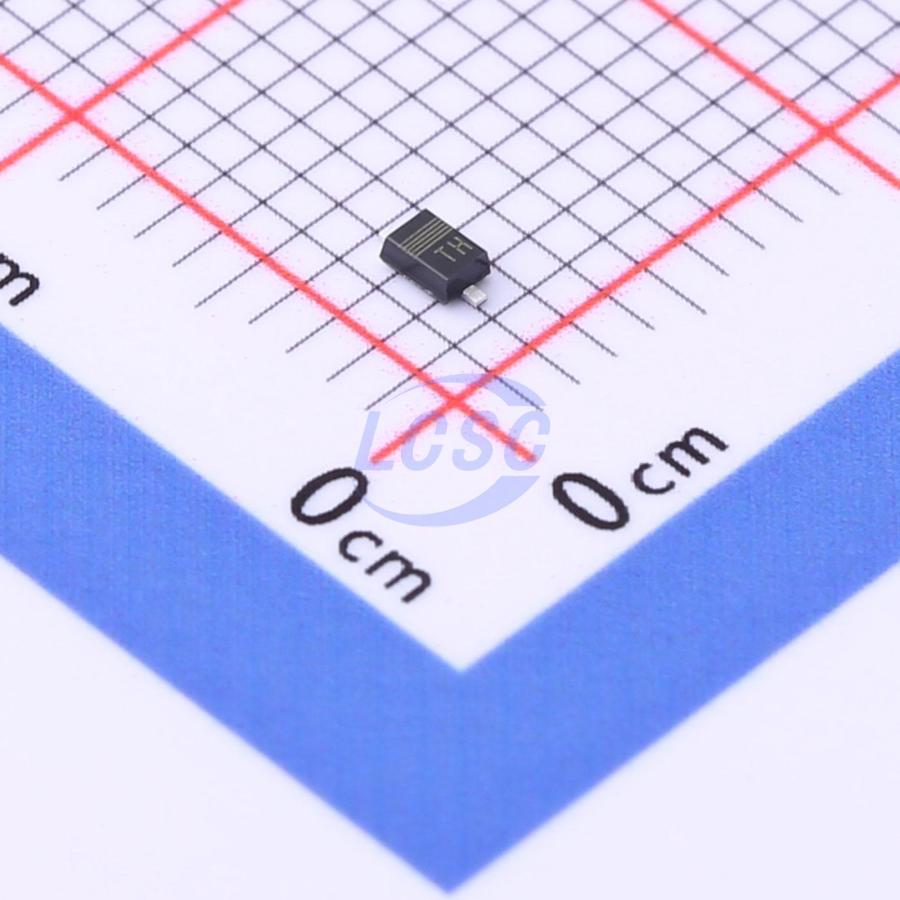

BZX84J-B6V2,115
Zener Diode Independent 6.2V 550mW Surface Mount SOD-323F
SOD-323FROHS3 CompliantActive
DIODE ZENER 6.2V 550mW SOD-323F
- Manufacturer
- Nexperia
- Manufacturer part #
- BZX84J-B6V2,115
- Store part #
- C550992
- Package / case
- SOD-323F
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,890 in stock
#C550992
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.40 | ₹84.00 |
| 100+ | ₹6.64 | ₹664.00 |
| 300+ | ₹5.76 | ₹1,728.00 |
| 3,000+ | ₹4.84 | ₹14,520.00 |
| 6,000+ | ₹4.31 | ₹25,860.00 |
| 9,000+ | ₹4.05 | ₹36,450.00 |
10 × ₹8.40
₹84.00
excl. GST
₹99.12 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZX84J-B6V2,115
₹84.00 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 550mW
- Reverse Leakage Current (Ir)
- 3uA@4V
- Impedance(Zzt)
- 10Ω
- Zener Voltage(Range)
- 6.08V~6.32V
- Zener Voltage(Nom)
- 6.2V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.022 g
Overview
General-purpose Zener diodes in a SOD323F (SC-90) very small and flat lead Surface-Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Non-repetitive peak reverse power dissipation: ≤ 40W
- Total power dissipation: ≤ 550mW
- AEC-Q101 qualified
- Small plastic package suitable for surface-mounted design
- Wide working voltage range: nominal 2.4V to 75V E24 range
- Two tolerance series: ± 2% and ± 5%
- Low differential resistance
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TDZ6V2J,115#C553836Nexperia · SOD-323F | Nexperia | SOD-323F | 10 | ₹20.94 · 10 in stock | View |
 | BZT52B6V2S#C18547706MSKSEMI · SOD-323 | MSKSEMI | SOD-323 | 13,350 | ₹2.13 · 13,350 in stock | View |
 | BZT52B6V2S#C22446816Slkor · SOD-323 | Slkor | SOD-323 | 1,500 | ₹2.78 · 1,500 in stock | View |
 | BZT52B6V2S#C2910100JSCJ · SOD-323 | JSCJ | SOD-323 | 7,420 | ₹4.75 · 7,420 in stock | View |
 | BZT52B6V2S#C55544542R+O · SOD-323 | R+O | SOD-323 | 5,420 | ₹3.04 · 5,420 in stock | View |
