NexperiaDatasheet (PDF)

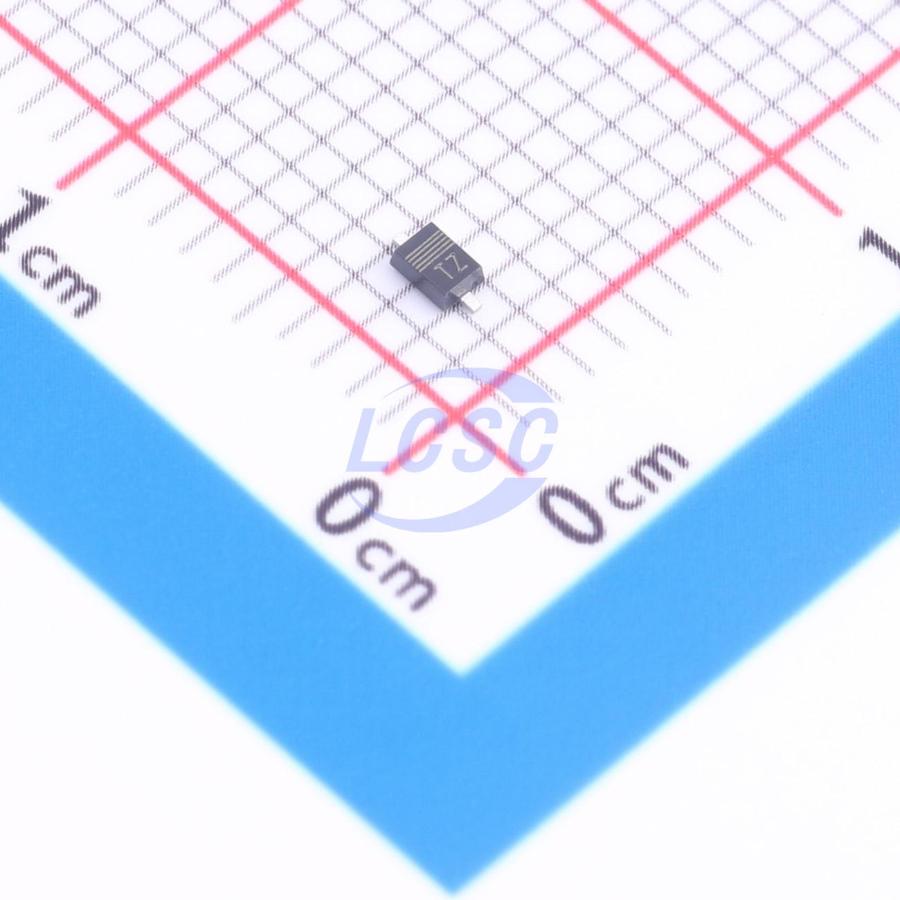

BZX84J-C22,115
1 Independent 20.8V~23.3V 22V SOD-323F Single Zener Diodes RoHS
SOD-323FROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- BZX84J-C22,115
- Store part #
- C551006
- Package / case
- SOD-323F
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
199 in stock
#C551006
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹26.94 | ₹26.94 |
| 10+ | ₹26.29 | ₹262.90 |
| 30+ | ₹25.85 | ₹775.50 |
| 100+ | ₹25.41 | ₹2,541.00 |
1 × ₹26.94
₹26.94
excl. GST
₹31.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZX84J-C22,115
₹26.94 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 550mW
- Reverse Leakage Current (Ir)
- 50nA@15.4V
- Impedance(Zzt)
- 25Ω
- Zener Voltage(Range)
- 20.8V~23.3V
- Zener Voltage(Nom)
- 22V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.034 g
Overview
General-purpose Zener diodes in a SOD323F (SC-90) very small and flat lead Surface-Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Non-repetitive peak reverse power dissipation: ≤ 40W
- Total power dissipation: ≤ 550mW
- AEC-Q101 qualified
- Small plastic package suitable for surface-mounted design
- Wide working voltage range: nominal 2.4V to 75V E24 range
- Two tolerance series: ± 2% and ± 5%
- Low differential resistance
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZX384-C22-QX#C7508118Nexperia · SOD-323 | Nexperia | SOD-323 | 59,180 | ₹6.26 · 59,180 in stock | View |
 | MM3Z22-MS#C22459428MSKSEMI · SOD-323 | MSKSEMI | SOD-323 | 2,950 | ₹2.28 · 2,950 in stock | View |
 | MM3Z22W#C2856989JSMSEMI · SOD-323W | JSMSEMI | SOD-323W | 1,850 | ₹2.53 · 1,850 in stock | View |
 | MM3Z22W#C3019210Jingdao Microelectronics · SOD-323W | Jingdao Microelectronics | SOD-323W | 3,700 | ₹2.08 · 3,700 in stock | View |
 | MM3Z22#C382824Jingdao Microelectronics · SOD-323 | Jingdao Microelectronics | SOD-323 | 200 | ₹1.87 · 200 in stock | View |
