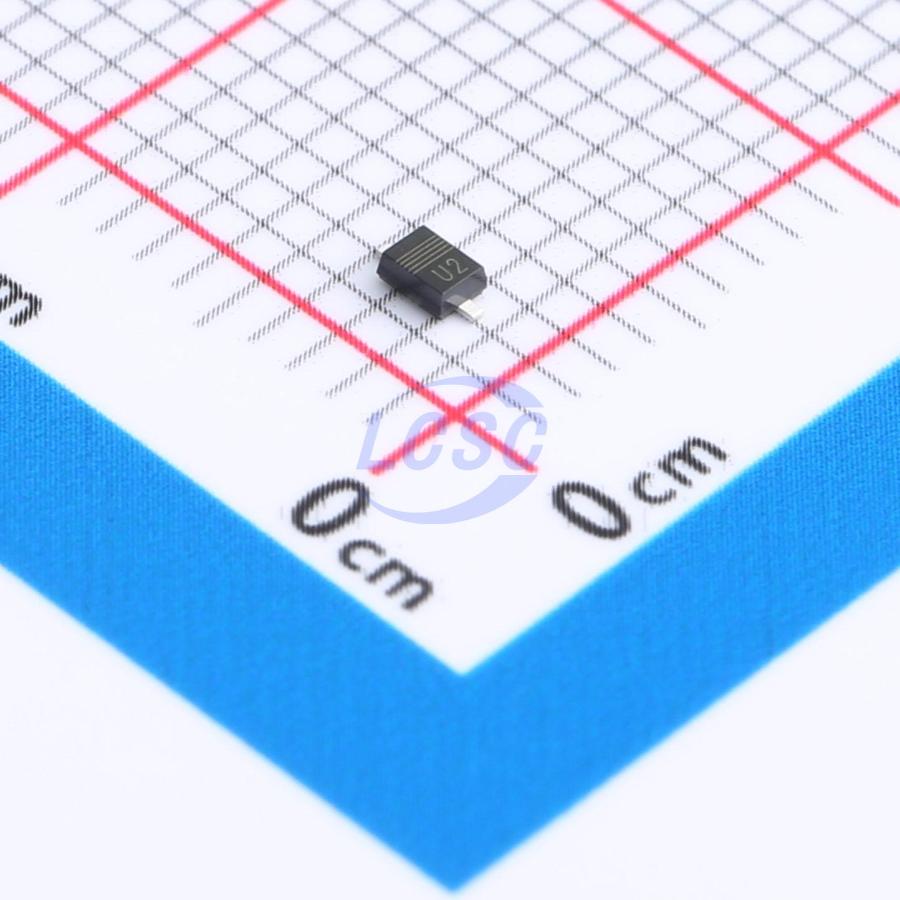

BZX84J-C27,115
Zener Diode Independent 27V 550mW Surface Mount SOD-323F
SOD-323FROHS3 CompliantActive
DIODE ZENER 27V 550mW SOD-323F
- Manufacturer
- Nexperia
- Manufacturer part #
- BZX84J-C27,115
- Store part #
- C551008
- Package / case
- SOD-323F
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,130 in stock
#C551008
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.33 | ₹83.30 |
| 100+ | ₹6.67 | ₹667.00 |
| 300+ | ₹5.83 | ₹1,749.00 |
| 3,000+ | ₹5.21 | ₹15,630.00 |
| 6,000+ | ₹4.71 | ₹28,260.00 |
| 9,000+ | ₹4.47 | ₹40,230.00 |
10 × ₹8.33
₹83.30
excl. GST
₹98.29 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZX84J-C27,115
₹83.30 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 550mW
- Reverse Leakage Current (Ir)
- 50nA@18.9V
- Impedance(Zzt)
- 40Ω
- Zener Voltage(Range)
- 25.1V~28.9V
- Zener Voltage(Nom)
- 27V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.023 g
Overview
General-purpose Zener diodes in a SOD323F (SC-90) very small and flat lead Surface-Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Non-repetitive peak reverse power dissipation: ≤ 40W
- Total power dissipation: ≤ 550mW
- AEC-Q101 qualified
- Small plastic package suitable for surface-mounted design
- Wide working voltage range: nominal 2.4V to 75V E24 range
- Two tolerance series: ± 2% and ± 5%
- Low differential resistance
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZX384-C27,115#C2928909Nexperia · SOD-323 | Nexperia | SOD-323 | 140 | ₹5.36 · 140 in stock | View |
 | BZX84J-B27,115#C550974Nexperia · SOD-323F | Nexperia | SOD-323F | 5,270 | ₹35.39 · 5,270 in stock | View |
 | MM3Z27W#C2856991JSMSEMI · SOD-323W | JSMSEMI | SOD-323W | 2,300 | ₹2.57 · 2,300 in stock | View |
 | MM3Z27W#C3019209Jingdao Microelectronics · SOD-323W | Jingdao Microelectronics | SOD-323W | 2,400 | ₹2.41 · 2,400 in stock | View |
 | TPZ27VC-323#C41431800TECH PUBLIC · SOD-323 | TECH PUBLIC | SOD-323 | 2,700 | ₹2.94 · 2,700 in stock | View |
