NexperiaDatasheet (PDF)

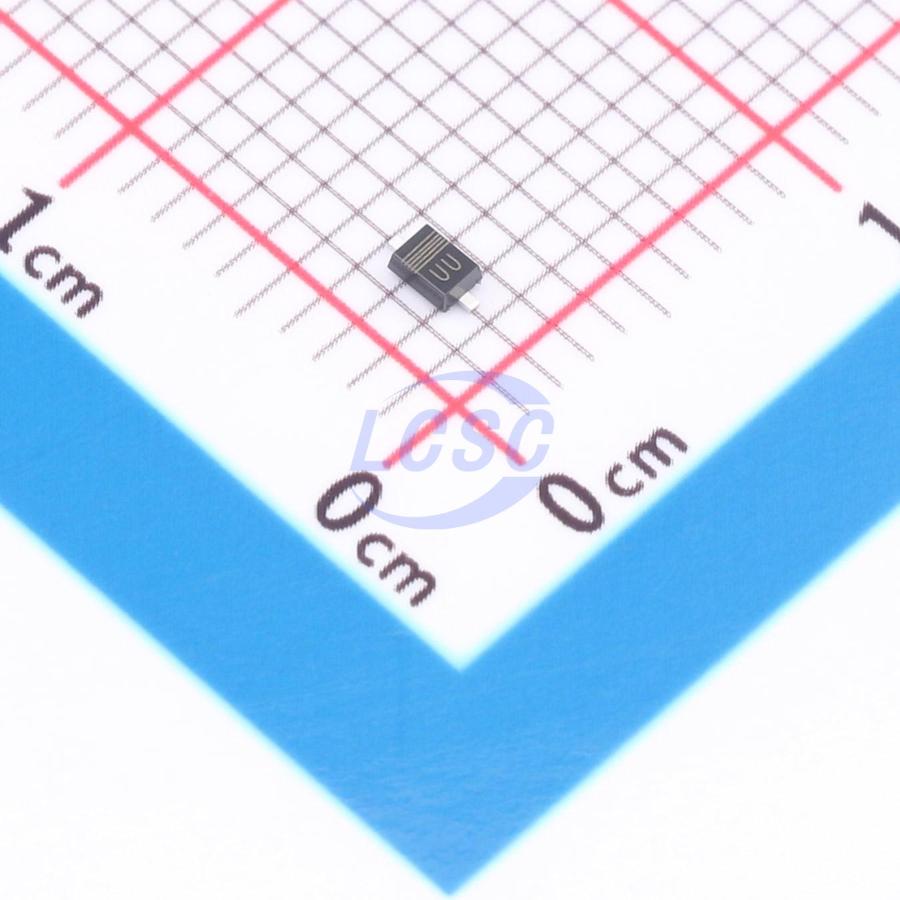

BZX84J-C7V5,115
1 Independent 7V~7.9V 7.5V SOD-323F Single Zener Diodes RoHS
SOD-323FROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- BZX84J-C7V5,115
- Store part #
- C551031
- Package / case
- SOD-323F
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,870 in stock
#C551031
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.66 | ₹76.60 |
| 100+ | ₹6.02 | ₹602.00 |
| 300+ | ₹5.20 | ₹1,560.00 |
| 3,000+ | ₹4.58 | ₹13,740.00 |
| 6,000+ | ₹4.09 | ₹24,540.00 |
| 9,000+ | ₹3.84 | ₹34,560.00 |
10 × ₹7.66
₹76.60
excl. GST
₹90.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZX84J-C7V5,115
₹76.60 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 550mW
- Reverse Leakage Current (Ir)
- 1uA@5V
- Impedance(Zzt)
- 10Ω
- Zener Voltage(Range)
- 7V~7.9V
- Zener Voltage(Nom)
- 7.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
General-purpose Zener diodes in a SOD323F (SC-90) very small and flat lead Surface-Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Non-repetitive peak reverse power dissipation: ≤ 40W
- Total power dissipation: ≤ 550mW
- AEC-Q101 qualified
- Small plastic package suitable for surface-mounted design
- Wide working voltage range: nominal 2.4V to 75V E24 range
- Two tolerance series: ± 2% and ± 5%
- Low differential resistance
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52C7V5S#C5190173Guangdong Hottech · SOD-323 | Guangdong Hottech | SOD-323 | 1,950 | ₹2.08 · 1,950 in stock | View |
 | BZX384-C7V5,115#C454985Nexperia · SOD-323 | Nexperia | SOD-323 | 4,270 | ₹5.31 · 4,270 in stock | View |
 | MM3Z7V5#C169481Jingdao Microelectronics · SOD-323 | Jingdao Microelectronics | SOD-323 | 2,400 | ₹1.85 · 2,400 in stock | View |
 | MM3Z7V5-MS#C22459417MSKSEMI · SOD-323 | MSKSEMI | SOD-323 | 1,600 | ₹2.17 · 1,600 in stock | View |
 | MM3Z7V5W#C2856978JSMSEMI · SOD-323W | JSMSEMI | SOD-323W | 3,800 | ₹2.96 · 3,800 in stock | View |
