VISHAYDatasheet (PDF)

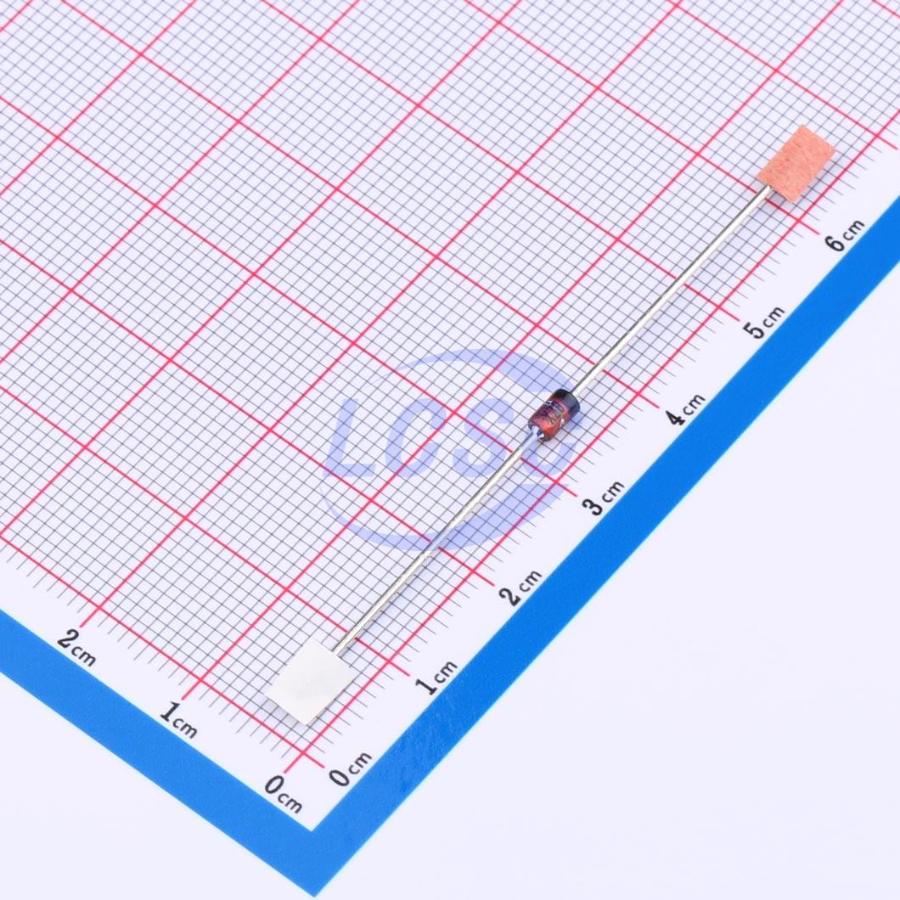

BZX85B15-TR
Zener Diode Independent 15V 1300mW Through Hole DO-41
DO-41ROHS3 CompliantActive
DIODE ZENER 15V 1300mW DO-41
- Manufacturer
- VISHAY
- Manufacturer part #
- BZX85B15-TR
- Store part #
- C5377589
- Package / case
- DO-41
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C5377589
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.01 | ₹60.05 |
| 50+ | ₹9.67 | ₹483.50 |
| 150+ | ₹8.51 | ₹1,276.50 |
| 500+ | ₹7.63 | ₹3,815.00 |
| 2,500+ | ₹6.92 | ₹17,300.00 |
| 5,000+ | ₹6.58 | ₹32,900.00 |
5 × ₹12.01
₹60.05
excl. GST
₹70.86 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
BZX85B15-TR
₹60.05 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Pd - Power Dissipation
- 1.3W
- Reverse Leakage Current (Ir)
- 500nA
- Impedance(Zzt)
- 15Ω
- Zener Voltage(Range)
- 14.7V~15.3V
- Zener Voltage(Nom)
- 15V
- Impedance(Zzk)
- 500Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.377 g
Overview
Applications
- Voltage stabilization
Key features
- Silicon planar power Zener diodes
- For use in stabilizing and clipping circuits with high power rating
- The Zener voltages are graded according to the international E 24 standard; replace suffix "C" with "B" for ±2% tolerance
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZX85C15-TAP#C467533VISHAY · DO-41 (DO-204AL) | VISHAY | DO-41 (DO-204AL) | 9,200 | ₹15.48 · 9,200 in stock | View |
 | BZX85C15#C890282onsemi · DO-41 | onsemi | DO-41 | 840 | ₹13.27 · 840 in stock | View |
 | ZPY15#C3742413DIOTEC · DO-41 | DIOTEC | DO-41 | 475 | ₹18.34 · 475 in stock | View |
 | 1N4744A#C7441090XCH · DO-41 | XCH | DO-41 | 2,040 | ₹5.05 · 2,040 in stock | View |
 | 2EZ15A#C55087354XCH · DO-41 | XCH | DO-41 | 40 | ₹6.18 · 40 in stock | View |
