VISHAYDatasheet (PDF)

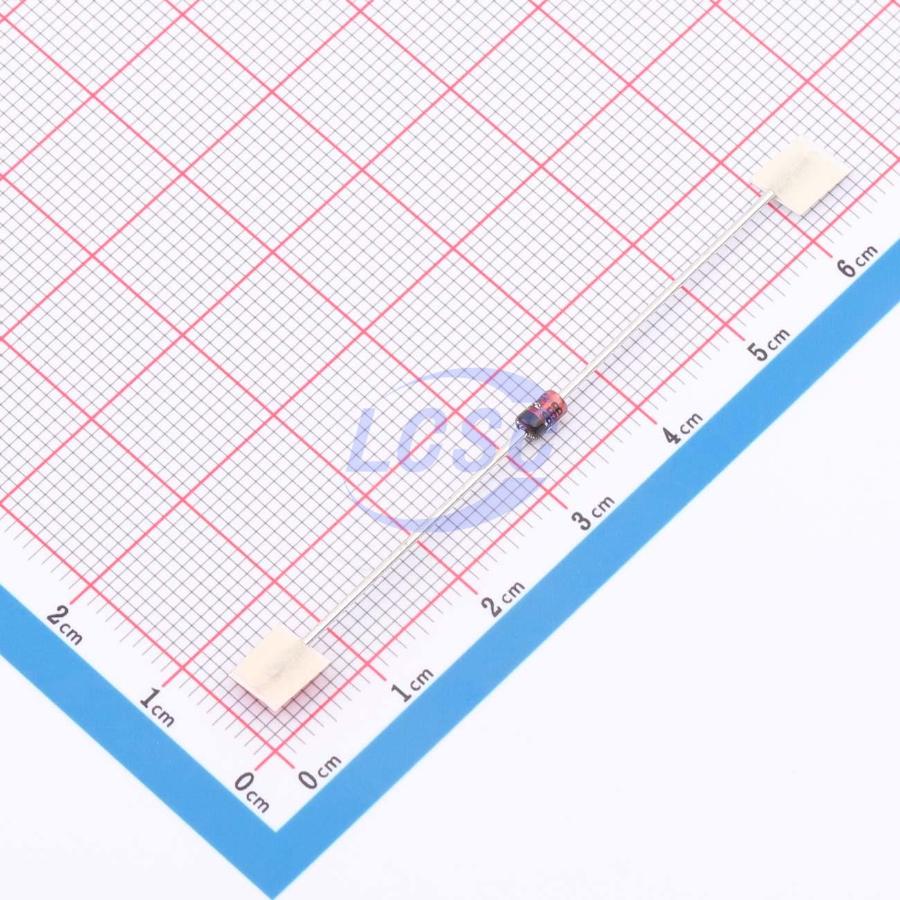

BZX85B9V1-TR
1 Independent 8.92V~9.28V 9.1V DO-41 (DO-204AL) Single Zener Diodes RoHS
DO-41 (DO-204AL)ROHS3 CompliantActive
DIODE ZENER 9.1V 1.3W DO-41 (DO-204AL)
- Manufacturer
- VISHAY
- Manufacturer part #
- BZX85B9V1-TR
- Store part #
- C3736123
- Package / case
- DO-41 (DO-204AL)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
95 in stock
#C3736123
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.32 | ₹56.60 |
| 50+ | ₹11.09 | ₹554.50 |
| 150+ | ₹10.93 | ₹1,639.50 |
| 500+ | ₹10.77 | ₹5,385.00 |
5 × ₹11.32
₹56.60
excl. GST
₹66.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
BZX85B9V1-TR
₹56.60 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Operating Junction Temperature Range
- -55℃~+175℃
- Pd - Power Dissipation
- 1.3W
- Reverse Leakage Current (Ir)
- 1uA@6.8V
- Impedance(Zzt)
- 5Ω
- Zener Voltage(Range)
- 8.92V~9.28V
- Zener Voltage(Nom)
- 9.1V
- Impedance(Zzk)
- 200Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.395 g
Overview
Applications
- Stable voltage
Key features
- Silicon planar power Zener diode
- Stabilization and clamping circuits for high power ratings
- Zener voltages graded to international E 24 series; ±2% tolerance available by replacing suffix "C" with "B"
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZX85B9V1#C362310LGE · DO-41 | LGE | DO-41 | 500 | ₹12.21 · 500 in stock | View |
 | BZV85-C9V1,113#C550508Nexperia · DO-41 | Nexperia | DO-41 | 37 | ₹119.39 · 37 in stock | View |
 | 1N4739A#C27975270LGE · DO-41 | LGE | DO-41 | 1,500 | ₹4.68 · 1,500 in stock | View |
 | 1N4739ATR#C258173onsemi · DO-41 | onsemi | DO-41 | 1,815 | ₹11.97 · 1,815 in stock | View |
 | 2EZ9.1D5#C5464800LGE · DO-41 | LGE | DO-41 | 330 | ₹11.95 · 330 in stock | View |
