VISHAYDatasheet (PDF)

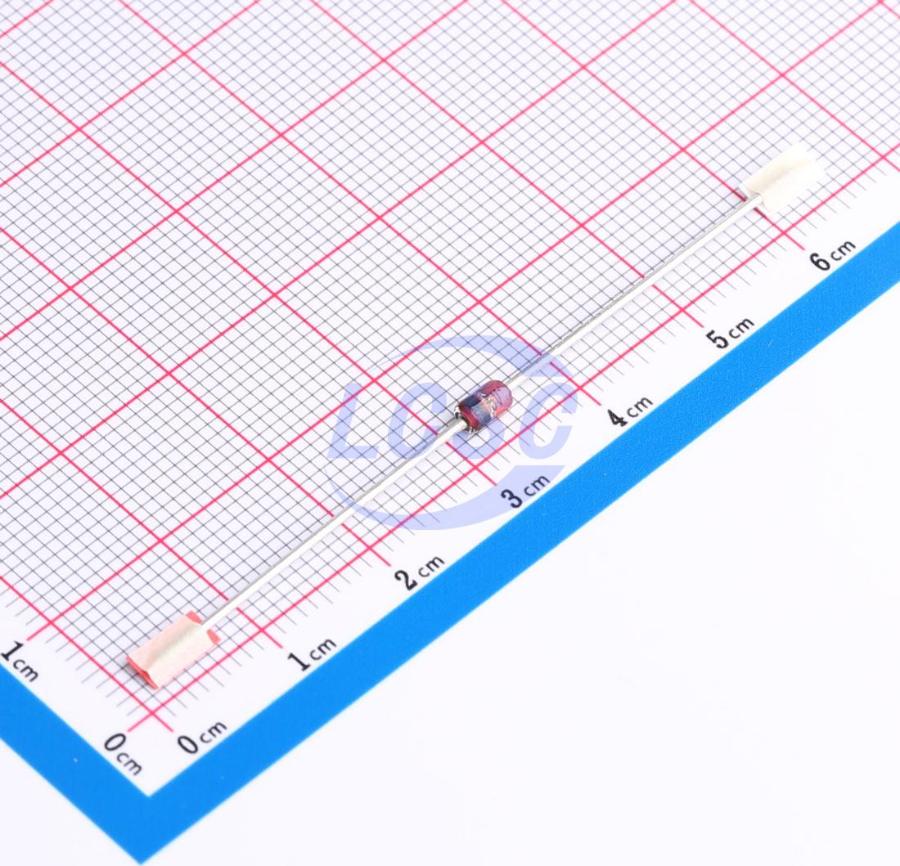

BZX85C5V1-TAP
Zener Diode Independent 5.1V 1800mW Through Hole DO-41 (DO-204AL)
DO-41 (DO-204AL)ROHS3 CompliantActive
DIODE ZENER 5.1V 1800mW DO-41 (DO-204AL)
- Manufacturer
- VISHAY
- Manufacturer part #
- BZX85C5V1-TAP
- Store part #
- C467534
- Package / case
- DO-41 (DO-204AL)
- Category
- Single Zener Diodes
- Packaging
- Box-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,755 in stock
#C467534
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.82 | ₹114.10 |
| 50+ | ₹17.78 | ₹889.00 |
| 150+ | ₹15.27 | ₹2,290.50 |
| 500+ | ₹13.39 | ₹6,695.00 |
| 2,500+ | ₹11.87 | ₹29,675.00 |
| 5,000+ | ₹11.11 | ₹55,550.00 |
5 × ₹22.82
₹114.10
excl. GST
₹134.64 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per box
BZX85C5V1-TAP
₹114.10 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+175℃
- Pd - Power Dissipation
- 1.8W
- Reverse Leakage Current (Ir)
- 1uA
- Impedance(Zzt)
- 10Ω
- Zener Voltage(Range)
- 4.8V~5.4V
- Zener Voltage(Nom)
- 5.1V
- Impedance(Zzk)
- 500Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Box-packed
- Standard pack
- 5,000 / Box
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.3 g
Overview
Applications
- Voltage stabilization
Key features
- Silicon planar power Zener diodes
- For use in stabilizing and clipping circuits with high power rating
- The Zener voltages are graded according to the international E 24 standard. Replace suffix "C" with "B" for ±2% tolerance
- AEC-Q101 qualified
- RoHS COMPLIANT HALOGEN FREE
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZV85-C5V1,113#C2928903Nexperia · DO-41 | Nexperia | DO-41 | 670 | ₹7.10 · 670 in stock | View |
 | 1N4733A#C7441079XCH · DO-41 | XCH | DO-41 | 2,320 | ₹5.62 · 2,320 in stock | View |
 | 1N4733A#C140851onsemi · DO-41 | onsemi | DO-41 | 80 | ₹12.82 · 80 in stock | View |
 | 1N4733ATR#C258172onsemi · DO-41 | onsemi | DO-41 | 1,000 | ₹13.81 · 1,000 in stock | View |
 | 1N4733A#C5157516LGE · DO-41 | LGE | DO-41 | 6,060 | ₹12.01 · 6,060 in stock | View |
