NexperiaDatasheet (PDF)

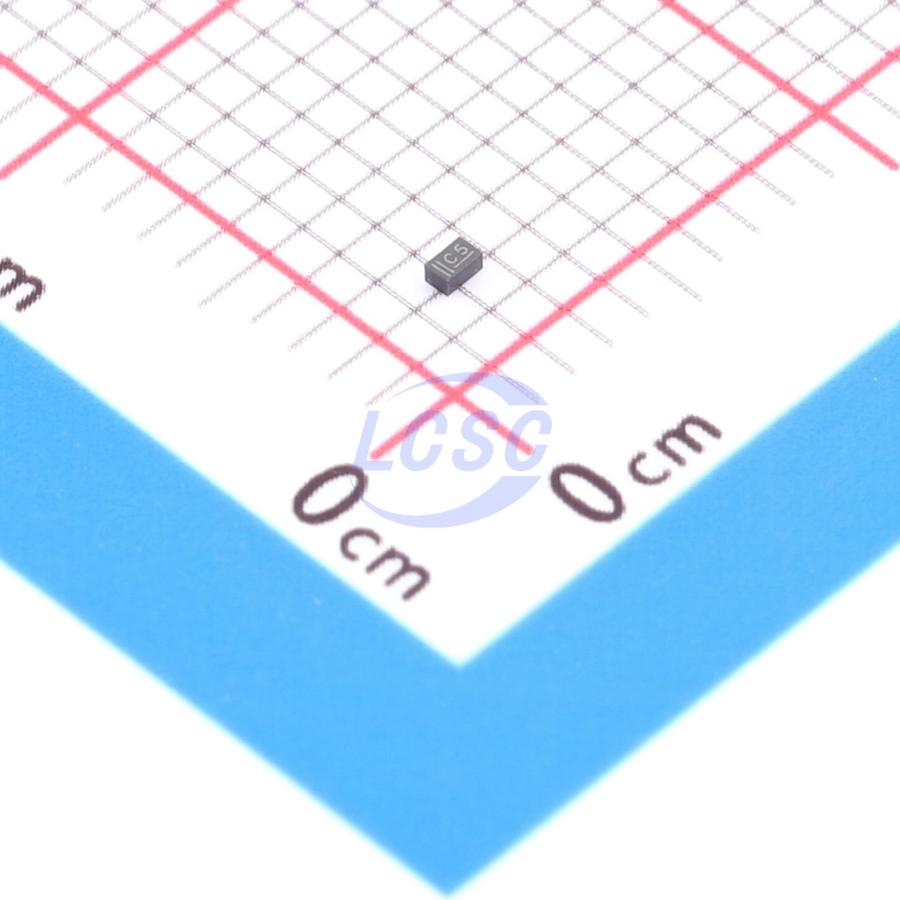

BZX884-B24,315
1 Independent 23.52V~24.48V 24V SOD-882 Single Zener Diodes RoHS
SOD-882ROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- BZX884-B24,315
- Store part #
- C551190
- Package / case
- SOD-882
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
595 in stock
#C551190
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.31 | ₹186.55 |
| 50+ | ₹29.15 | ₹1,457.50 |
| 150+ | ₹25.64 | ₹3,846.00 |
| 500+ | ₹21.27 | ₹10,635.00 |
| 2,500+ | ₹19.33 | ₹48,325.00 |
| 5,000+ | ₹18.16 | ₹90,800.00 |
5 × ₹37.31
₹186.55
excl. GST
₹220.13 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
BZX884-B24,315
₹186.55 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Pd - Power Dissipation
- 250mW
- Reverse Leakage Current (Ir)
- 50nA@16.8V
- Impedance(Zzt)
- 70Ω
- Zener Voltage(Range)
- 23.52V~24.48V
- Zener Voltage(Nom)
- 24V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.05 g
Overview
General- purpose Zener diodes in an SOD882 (DFN1006- 2) leadless ultra small Surface- Mounted Device (SMD) plastic package.
Applications
- General regulation functions
- ElectroStatic Discharge (ESD) ultra high-speed switching
- High-frequency applications
Key features
- Total power dissipation: Ptot ≤ 250 mW
- Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
- Two tolerance series: ± 2% and ± 5%
- Leadless ultra small plastic package suitable for surface-mounted design
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PZU24BL,315#C553679Nexperia · DFN1006-2 | Nexperia | DFN1006-2 | 10,000 | ₹3.31 · 10,000 in stock | View |
| PZU24B2L,315#C553675Nexperia · DFN1006-2 | Nexperia | DFN1006-2 | On request | ₹2.29 · 0 in stock | View | |
| BZX884B24L-G3-08#C3734534VISHAY · DFN1006-2A | VISHAY | DFN1006-2A | On request | ₹5.77 · 0 in stock | View | |
| BZX884B24L-HG3-08#C3735191VISHAY · DFN1006-2A | VISHAY | DFN1006-2A | On request | ₹6.42 · 0 in stock | View | |
| NZ8F24VSMX2WT5G#C3729379onsemi · X2DFNW2(0.6x1) | onsemi | X2DFNW2(0.6x1) | On request | ₹6.67 · 0 in stock | View | |
