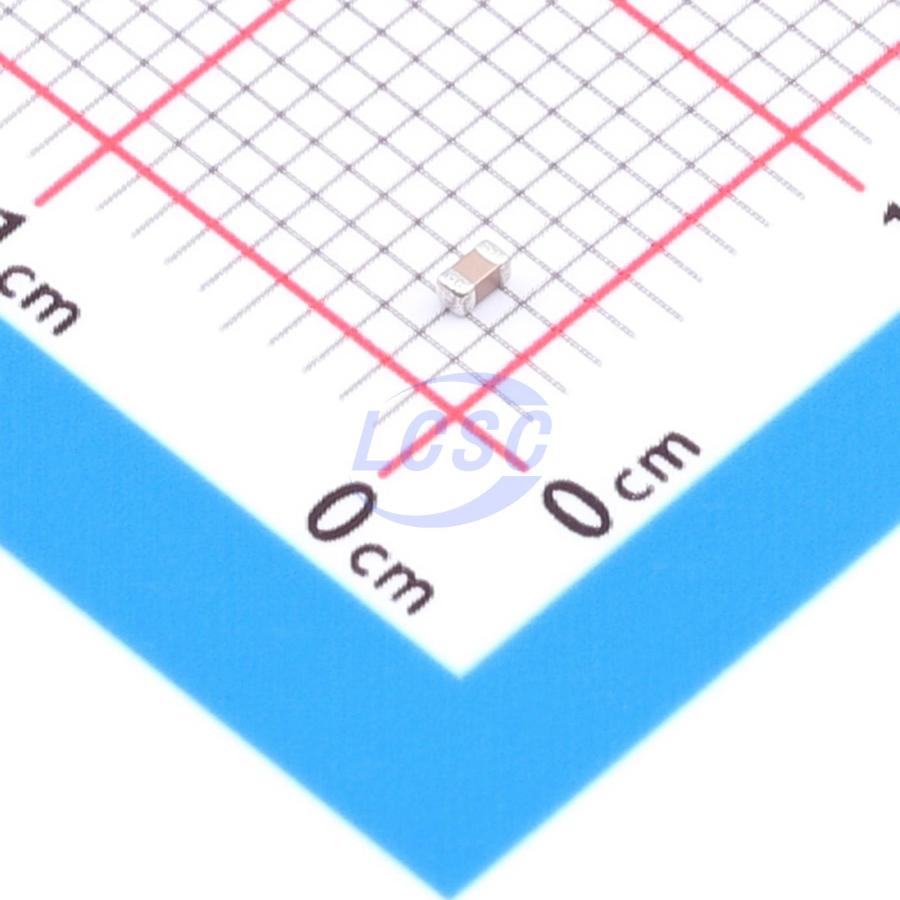

C0603C104J5RAC7411

KEMET's X7R dielectric has a maximum operating temperature of 125°C and is considered temperature stable. The Electronic Industries Alliance (EIA) classifies X7R dielectric as a Class II material. These components are fixed ceramic dielectric capacitors suitable for bypass and decoupling applications, or for discriminator circuits where high Q and stable capacitance characteristics are not critical. X7R capacitance change over time and voltage is predictable, with minimal capacitance variation relative to ambient temperature. Over the temperature range of -55°C to +125°C, capacitance change is limited to ±15%.

Applications

• Typical applications include decoupling, bypassing, filtering, and transient voltage suppression.

Key features

• Operating temperature range: -55°C to +125°C
• Lead-free, RoHS and REACH compliant
• Temperature-stable dielectric
• Available in EIA 0402, 0603, 0805, 1206, 1210, 1808, 1812, 1825, 2220, and 2225 case sizes
• DC voltage ratings: 6.3V, 10V, 16V, 25V, 35V, 50V, 100V, 200V, and 250V
• Capacitance range: 10 pF to 47 μF
• Capacitance tolerances: ±5%, ±10%, and ±20%
• Non-polarized device, simplifying mounting concerns
• 100% pure matte tin-plated terminations with excellent solderability
• SnPb termination option available upon request (minimum 5% lead content)
