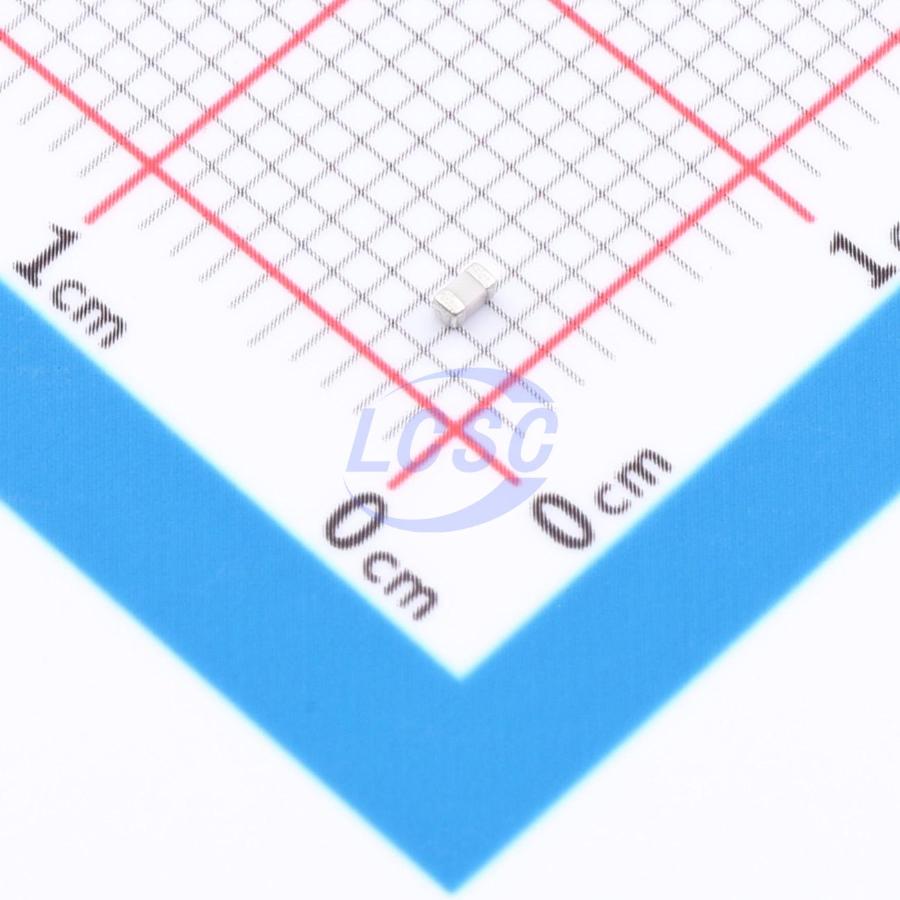

C0603C220J5HACAUTO

KEMET's ultra-stable X8R dielectric offers a maximum operating temperature of 150°C, delivering the latest high-temperature dielectric technology and reliability for extreme-temperature applications. It provides the same temperature capability as conventional X8R, but without the capacitance loss caused by applied DC voltage. The ultra-stable X8R exhibits no capacitance change with voltage and minimal capacitance variation with ambient temperature. It serves as a suitable alternative to high-capacitance, large-case-size devices that cannot provide capacitance stability. Capacitance change with temperature is limited to ±15% over the range of -55°C to +150°C. Driven by the demand for more robust and reliable components, ultra-stable X8R dielectric capacitors are developed for critical applications requiring reliability and capacitance stability at elevated operating temperatures. These capacitors are widely used in automotive circuits and general high-temperature applications. In addition to commercial-grade products, automotive-grade products are also available and qualified to AEC-Q200 requirements of the Automotive Electronics Council.

Applications

• Typical applications include decoupling, bypassing, and filtering in extreme environments such as downhole oil exploration and under automotive hoods.

Key features

• Operating temperature range: -55°C to +150°C
• Lead-free (Pb), RoHS and REACH compliant
• Available in EIA 0402, 0603, 0805, 1206, 1210, and 1812 case sizes
• DC voltage ratings: 10V, 16V, 25V, 50V, and 100V
• Capacitance range: 0.5 pF to 0.22 μF
• Available capacitance tolerances: ±0.10 pF, ±0.25 pF, ±0.5 pF, ±1%, ±2%, ±5%, ±10%, and ±20%
• Ultra-low ESR and ESL
• High thermal stability
• High ripple current capability
• No capacitance change under rated DC voltage
• Non-polarized device, reducing mounting concerns
• Available in commercial and automotive grades
• 100% pure matte tin termination with excellent solderability
• SnPb termination available upon request (minimum 5% lead content)
