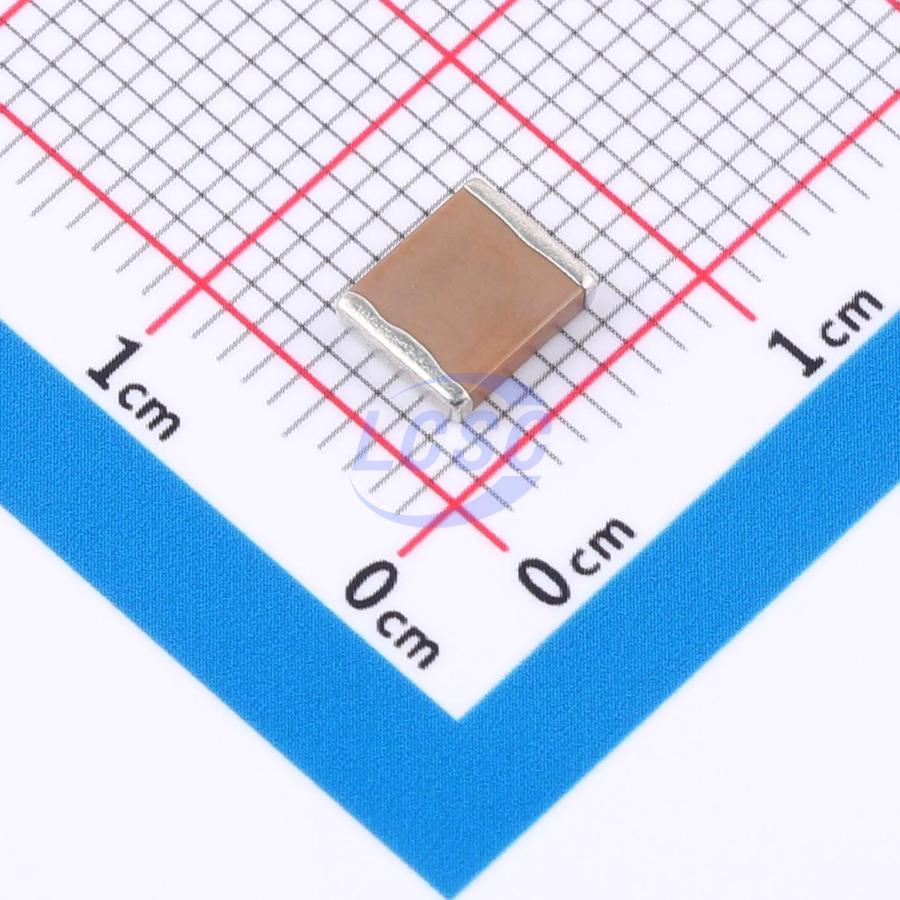

C2220C332KHRACAUTO

KEMET's automotive-grade high-voltage surface mount MLCCs utilize X7R dielectric with a maximum operating temperature of 125°C, classified as "temperature stable." The EIA categorizes X7R dielectric as a Class II material. These components are fixed ceramic dielectric capacitors suitable for bypass and decoupling applications, or frequency discriminator circuits where Q factor and capacitance stability are not critical. X7R capacitance change over time and voltage is predictable, with minimal variation relative to ambient temperature. Capacitance change is limited to ±15% over the temperature range of -55°C to +125°C. Whether located under the hood or in the passenger compartment, these capacitors are designed to deliver reliable performance in mission-critical and safety-related automotive circuits. Given the potentially harsh environmental conditions, automotive-grade products are subject to more stringent test protocols and inspection standards. KEMET's automotive series capacitors meet the AEC-Q200 qualification requirements of the Automotive Electronics Council.

Applications

• Charging stations
• LCD fluorescent backlight ballasts
• Voltage multiplier circuits
• DC/DC converters
• Power supplies
• LAN/WAN interfaces
• High-voltage decoupling
• Filters
• DC blocking
• ESD protection

Key features

• AEC-Q200 automotive qualified
• Operating temperature range: -55°C to +125°C
• Industry-leading CV values
• Excellent high-frequency performance
• Pb-free, RoHS and REACH compliant
• Available in EIA 0402, 0603, 0805, 1206, 1210, 1808, 1812, 1825, 2220, and 2225 case sizes
• DC voltage ratings: 500 V, 630 V, 1 KV, 1.5 KV, 2 KV, 2.5 KV, and 3 KV
• Capacitance range: 10 pF to 560 nF
• Capacitance tolerances: ±5%, ±10%, and ±20%
• Low ESR and ESL
• Non-polarized, simplifying mounting concerns
• 100% pure matte tin termination for excellent solderability
