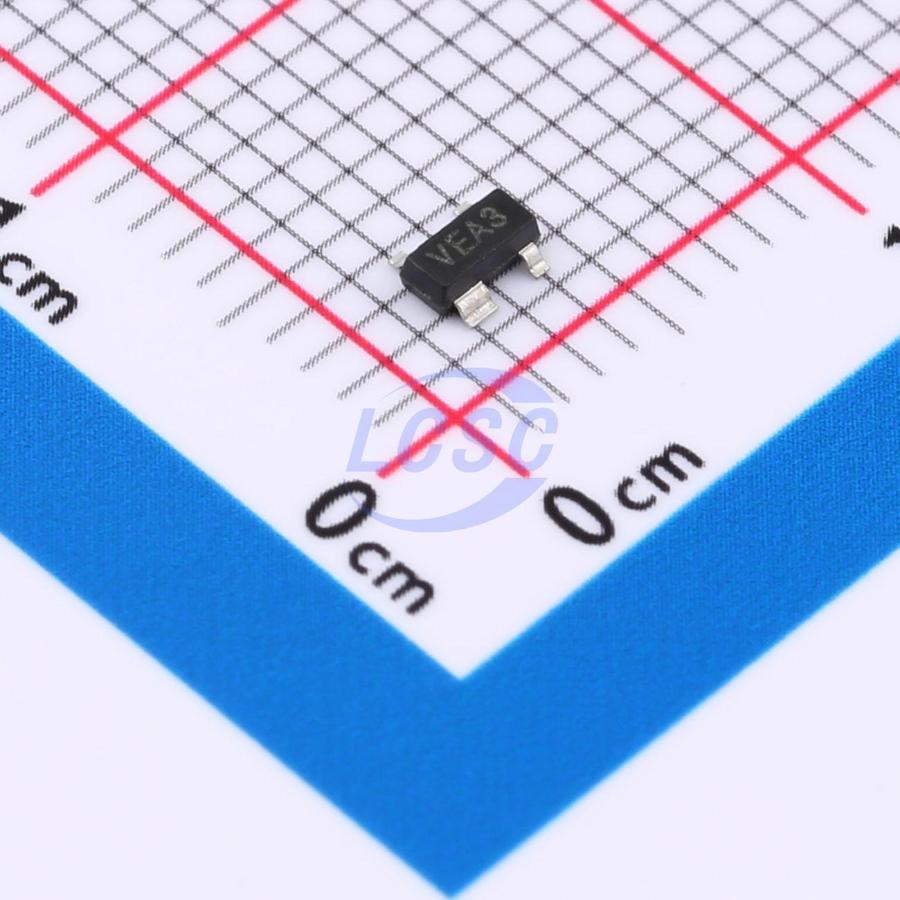

CAT811RTBI-GT3-MS
240ms Manual reset input Active Low 1V~6V 1 SOT-143 Supervisors
Universal Voltage Detector
- Manufacturer
- MSKSEMI
- Manufacturer part #
- CAT811RTBI-GT3-MS
- Store part #
- C30197473
- Package / case
- SOT-143
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,815 in stock
#C30197473
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.84 | ₹74.20 |
| 50+ | ₹11.72 | ₹586.00 |
| 150+ | ₹10.16 | ₹1,524.00 |
| 500+ | ₹9.00 | ₹4,500.00 |
| 3,000+ | ₹8.06 | ₹24,180.00 |
| 6,000+ | ₹7.58 | ₹45,480.00 |
5 × ₹14.84
₹74.20
excl. GST
₹87.56 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CAT811RTBI-GT3-MS
₹74.20 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Reset Timeout
- 240ms
- output type
- Push-pull
- Function
- Manual reset input
- Reset Active Level
- Active Low
- standby current
- 5uA
- Voltage - Supply
- 1V~6V
- ChipType
- Voltage Detector
- Threshold Voltage
- 2.63V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.024 g
Overview
The CAT811XTBI-GT3-MS is a general-purpose voltage detector which only consume about 5uA at 3.6V, which can be widely used in all electronic system to either monitor a battery voltage or generate a power-on reset signal. It can work under the voltage ranging from 1V to 6V. CAT811XTBI-GT3-MS also provide a manual reset pin. It employs a low voltage reference, low offset comparator, timer and push-pull output stage pushed high after input voltage is greater than the internal setting level for 240ms. The CAT811XTBI-GT3-MS is available in SOT-143 package.
Applications
- Battery voltage monitor
- Power-on reset
- Set-top-box
- Voltage level trigger
- Press button debouncing
- Portable devices
Key features
- Wide operation range: 1 - 6V
- Voltage detecting level setting range: 2.3 - 5V
- SOT-143 package
- Detection delay time: 240ms
- Reset pin output kept low when input voltage < 1V
- 4KV ESD
