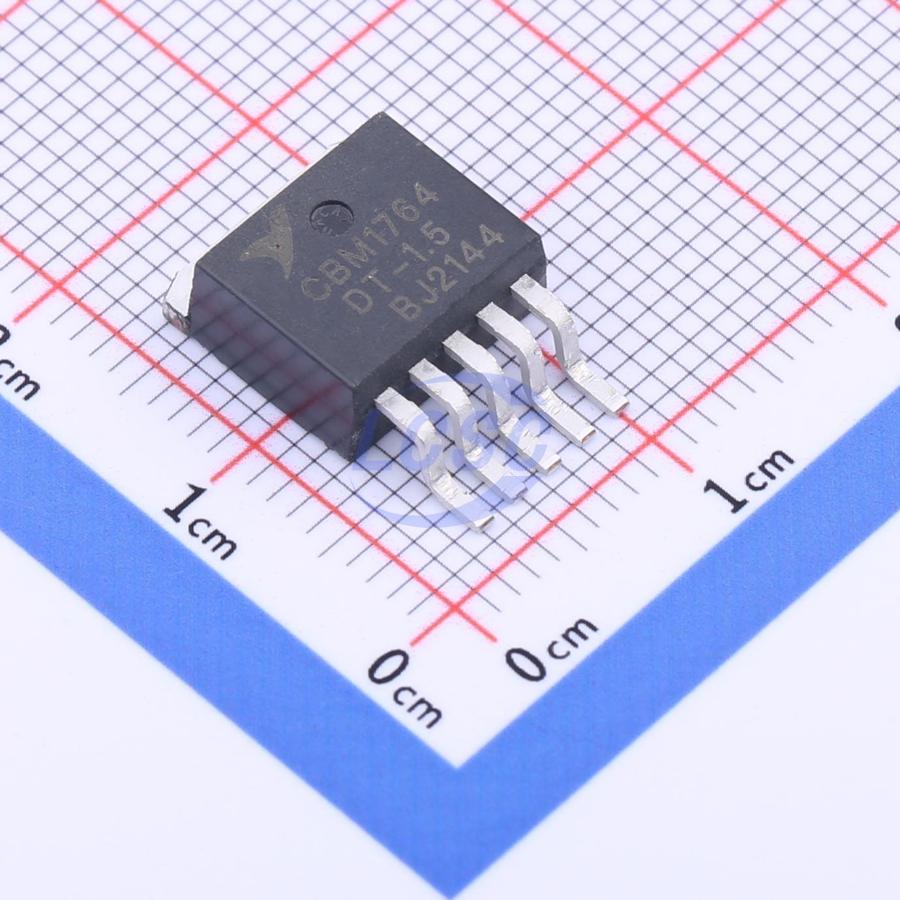

Corebai Microelectronics

CBM1764DT-1.5-REEL

Linear Voltage Regulator IC Positive Fixed 1 Output 3A TO-263-5

TO-263-5RoHSActive

3A Low Dropout (LDO) Linear Regulator with Fast Transient Response

Manufacturer: Corebai Microelectronics
Manufacturer part #: CBM1764DT-1.5-REEL
Store part #: C2894372
Package / case: TO-263-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

48 in stock

#C2894372

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
1+	₹592.82	₹592.82
10+	₹566.71	₹5,667.10
30+	₹550.73	₹16,521.90
100+	₹537.35	₹53,735.00

Quantity (min 1)

1 × ₹592.82

₹592.82

excl. GST

₹699.53 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 500 per reel

CBM1764DT-1.5-REEL

₹592.82 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 1.5V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Ta)
Supply Current (Iq): 1mA
Output Configuration: Positive
Operating Voltage: 20V
Output Current: 3A
Output Type: Fixed
Features: Enable control;Reverse polarity voltage protection;Reverse-polarity current protection;Over Current Protection;Thermal shutdown

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 1.78 g

Overview

CBM1764DT is a 3A low dropout linear regulator with fast transient response. The device delivers 3A load capability with a dropout voltage of 340mV. Quiescent current is approximately 1mA during normal operation and drops below 1µA in shutdown mode. The quiescent current is well controlled — unlike many other regulators, this device's quiescent current does not increase under undervoltage conditions. In addition to fast transient response, the CBM1764DT features very low output voltage noise, making it well suited for powering noise-sensitive RF systems. The output voltage range is 1.2V to 20V, with stability maintained using output capacitors as low as 10µF. Internal protection circuits include reverse battery protection, current limiting, thermal shutdown, and reverse current protection. The device is available in fixed output voltages of 1.5V, 1.8V, 2.5V, and 3.3V, and can also be configured as an adjustable regulator with a 1.2V reference voltage. The CBM1764DT regulator is offered in a 5-pin TO-263 package.
