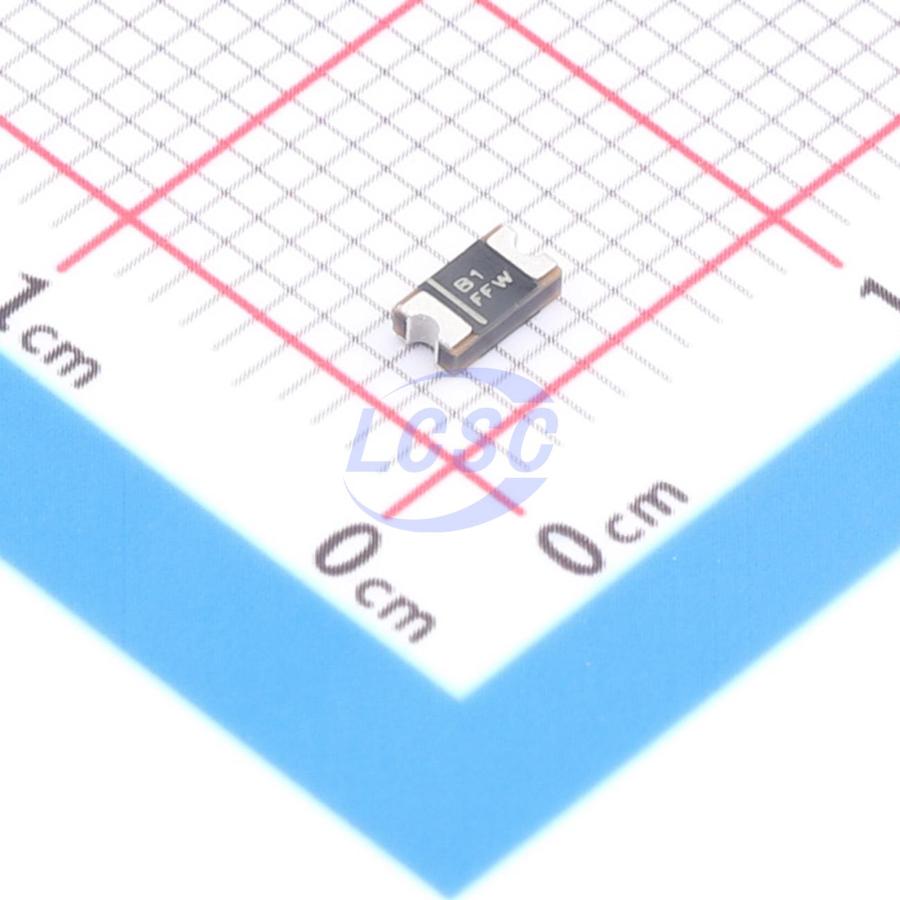

CD1408-FF11500
50ns 1 Independent 1.5kV 6V@1A 1A 1408 Single Diodes RoHS
- Manufacturer
- BOURNS
- Manufacturer part #
- CD1408-FF11500
- Store part #
- C17307015
- Package / case
- 1408
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
65 in stock
#C17307015
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹111.56 | ₹111.56 |
| 10+ | ₹109.62 | ₹1,096.20 |
| 30+ | ₹108.34 | ₹3,250.20 |
| 100+ | ₹107.04 | ₹10,704.00 |
1 × ₹111.56
₹111.56
excl. GST
₹131.64 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CD1408-FF11500
₹111.56 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 50ns
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 1.5kV
- Voltage - Forward(Vf@If)
- 6V@1A
- Reverse Leakage Current (Ir)
- 5uA
- Current - Rectified
- 1A
- Non-Repetitive Peak Forward Surge Current
- 15A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.059 g
Overview
The portable communications, computing, and video equipment market has driven the semiconductor industry to develop smaller electronic components. Bourns offers rectifier diodes for rectification applications in a compact 1408 chip package (compatible with SOD87 and SOD123 formats), saving PCB space and smaller than most competing products. The glass-passivated rectifier diodes feature a 1 A forward current, repetitive peak reverse voltage options from 200 V to 1500 V, and a maximum recovery time of 75 nS. Bourns chip diodes comply with JEDEC standards for easy handling on standard placement equipment, with a flat profile to minimize rolling.
Applications
- High-frequency switching power supplies, inverters, freewheeling, polarity protection
Key features
- Lead-free device (RoHS compliant*)
- Low-profile design
- Low power consumption, high efficiency
- UL 94V-0 rated
