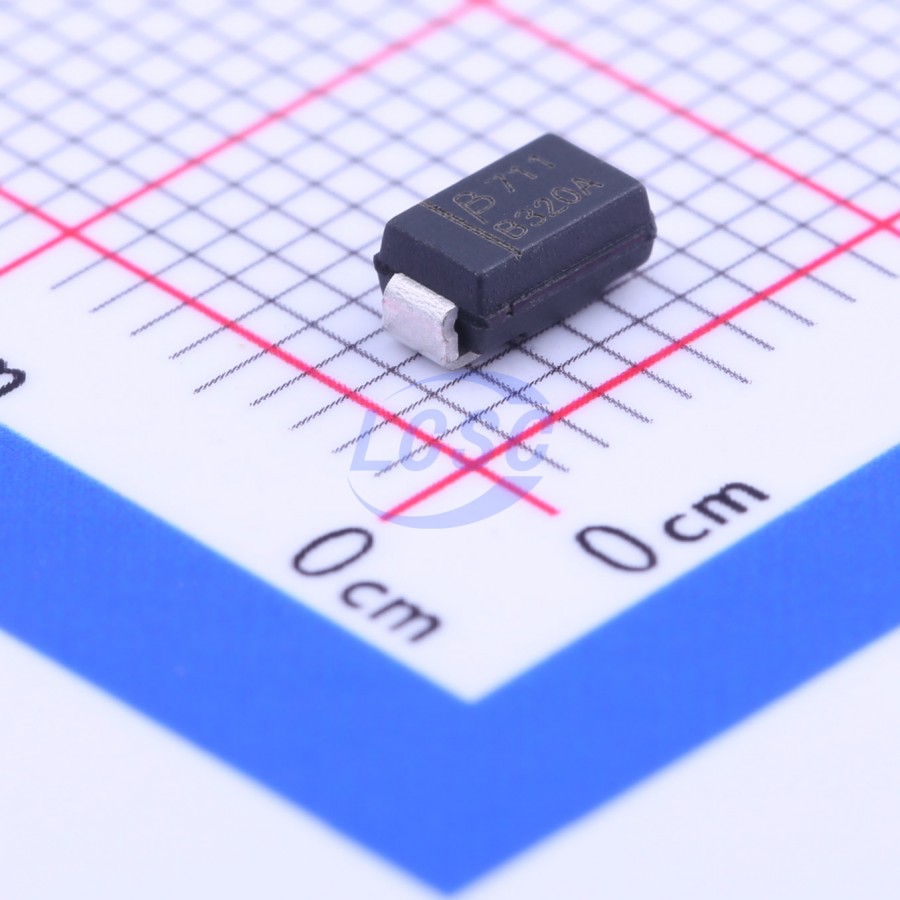

CD214A-B320LF
Diode 20V 3A Surface Mount SMA(DO-214AC)
DIODE SCHOTTKY 20V SMA(DO-214AC)
- Manufacturer
- BOURNS
- Manufacturer part #
- CD214A-B320LF
- Store part #
- C143793
- Package / case
- SMA(DO-214AC)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
23 in stock
#C143793
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹65.59 | ₹65.59 |
| 10+ | ₹64.18 | ₹641.80 |
| 30+ | ₹63.16 | ₹1,894.80 |
| 100+ | ₹62.35 | ₹6,235.00 |
1 × ₹65.59
₹65.59
excl. GST
₹77.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
CD214A-B320LF
₹65.59 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+125℃
- Voltage - DC Reverse (Vr) (Max)
- 20V
- Voltage - Forward(Vf@If)
- 500mV@3A
- Reverse Leakage Current (Ir)
- 500uA@20V
- Non-Repetitive Peak Forward Surge Current
- 100A
- Current - Rectified
- 3A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Sold out at source
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.085 g
Overview
The markts of portable communications, computing and video equipment are challenging the semiconductor industry to develop increasingly smaller electronic components. Bourns offers Schottky Rectifier Diodes for rectification applications, in compact chip package DO-214AC (SMA) size format, which offer PCB real estate savings and are considerably smaller than competitive parts. The Schottky Rectifier Diodes offer a forward current of 3 A with a choice of repetitive peak reverse voltage of 20V up to 60V Bourns Chip Diodes conform to JEDEC standards, are easy to handle on standard pick and place equipment and their flat configuration minimizes roll away.
Key features
- RoHS compliant*
- SMA package
- Surface mount
- High current capability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SS34#C408258Slkor · SMA(DO-214AC) | Slkor | SMA(DO-214AC) | 72,860 | ₹5.32 · 72,860 in stock | View |
 | SS34A50#C18198668JUXING · DO-214AC(SMA) | JUXING | DO-214AC(SMA) | 4,200 | ₹3.94 · 4,200 in stock | View |
 | SS34#C489140KEXIN · DO-214AC(SMA) | KEXIN | DO-214AC(SMA) | 6,900 | ₹5.34 · 6,900 in stock | View |
 | B330A(MS)#C22399274MSKSEMI · SMA | MSKSEMI | SMA | 220 | ₹7.22 · 220 in stock | View |
 | B340A(MS)#C22399275MSKSEMI · SMA | MSKSEMI | SMA | 1,400 | ₹6.13 · 1,400 in stock | View |
