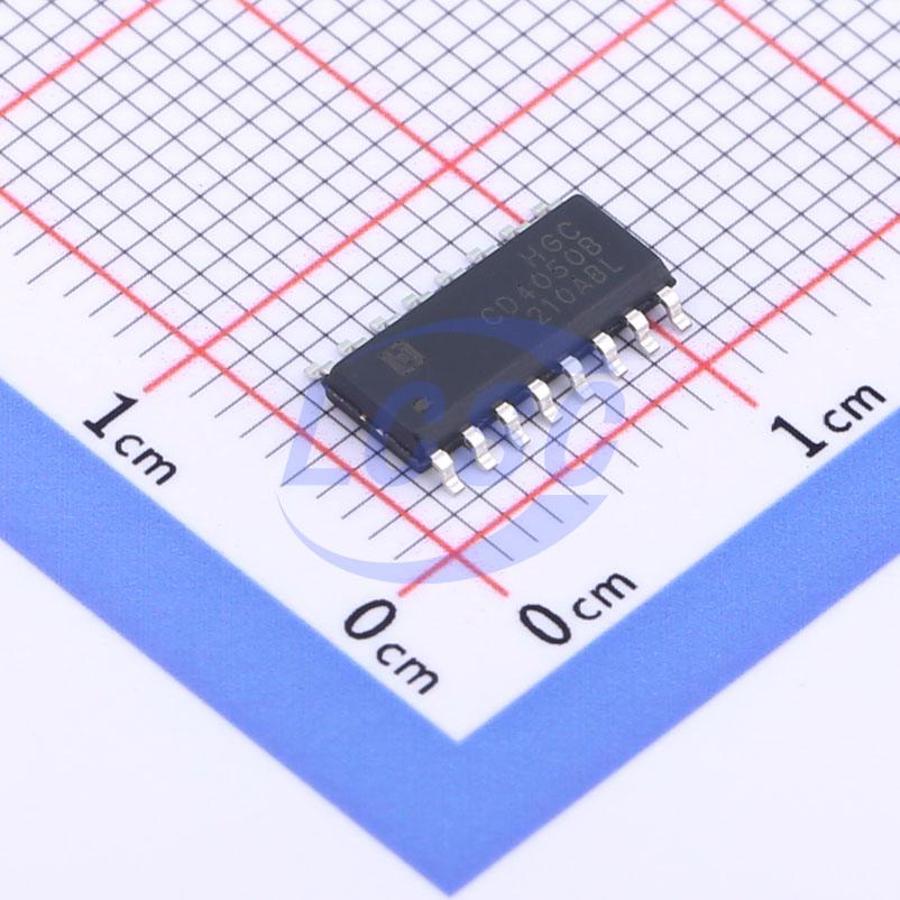

CD4050BDRG

CD4049UB and CD4050B hex buffers are monolithic wide voltage range CMOS ICs featuring low power consumption, noise immunity, and high application flexibility. These devices support logic level translation using only a single supply voltage VDD. When used for logic level translation, the input high level VIH can exceed the supply voltage VDD. These devices are used for CMOS-to-DTL and TTL level translation, or as CMOS current drivers, and can drive 2 DTL/TTL loads over the operating temperature range when VDD = 5.0V.

Key features

• Wide operating voltage range: 5.0 ~ 15V
• At VDD = 5.0V, capable of driving 2 TTL loads over the operating temperature range
• High sink/source current capability
• Dedicated input protection network allows input voltage greater than VDD
• Package types: DIP-16, SOP-16, TSSOP-16
