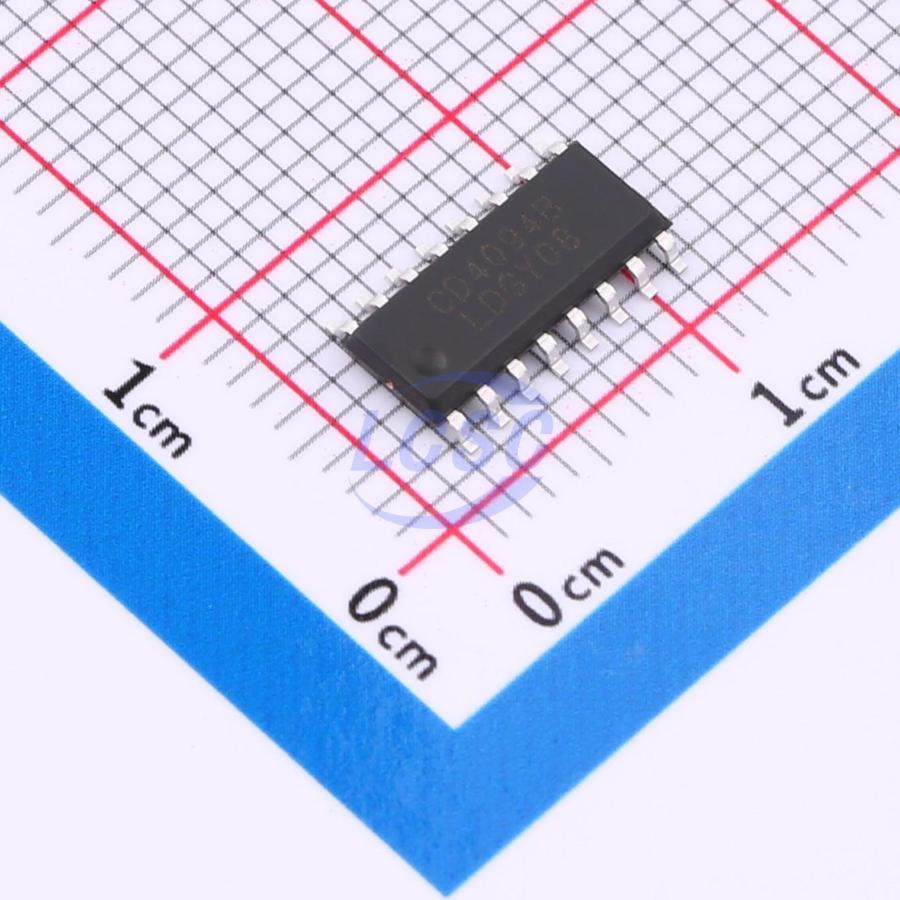

CD4094BM-TD
3V~15V 3.6mA 95ns@15V,50pF Serial-to-Parallel SOP-16 Shift Registers RoHS
SOP-16ROHS CompliantActive
8-bit shift register with three-state output
- Manufacturer
- TDSEMIC
- Manufacturer part #
- CD4094BM-TD
- Store part #
- C42421855
- Package / case
- SOP-16
- Category
- Shift Registers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,195 in stock
#C42421855
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.60 | ₹103.00 |
| 50+ | ₹16.47 | ₹823.50 |
| 150+ | ₹14.42 | ₹2,163.00 |
| 500+ | ₹12.87 | ₹6,435.00 |
| 2,500+ | ₹10.72 | ₹26,800.00 |
| 5,000+ | ₹10.09 | ₹50,450.00 |
5 × ₹20.60
₹103.00
excl. GST
₹121.54 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CD4094BM-TD
₹103.00 for 5 + GST
Specifications
- Operating temperature
- -40℃~+85℃
- Pd - Power Dissipation
- 500mW
- Voltage - Supply
- 3V~15V
- Output Type
- Tri-State
- Current - Output High(IOH)
- 8.8mA
- Current - Output Low(IOL)
- 8.8mA
- Output Current
- 3.6mA
- Features
- Output enable
- Propagation Delay
- 95ns@15V,50pF
- Function
- Serial-to-Parallel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.274 g
Overview
The CD4094B is a CMOS IC consisting of an 8-bit serial shift register and a 3-state output buffer. The register features a storage latch function; the IC uses the STROBE signal to determine whether the latches receive data from each bit of the shift register and whether data is transferred from the latches to the 3-state output buffer. When STROBE is 0, the latched input data reflects the output of each bit of the shift register. When STROBE is 1, data is transferred through the latches to the 3-state output buffer. When OUTPUTENABLE is 1, data is transferred to the output buffer and converted to parallel form.
Key features
- Supply voltage range: 5.0V - 18V
- High noise margin: 45% of VDD (typical)
- Output levels and drive current meet TTL interface requirements (VDD = 5V)
- Three-state output bus signal
- Package types: DIP-16, SOP-16, TSSOP-16
