TIDatasheet (PDF)

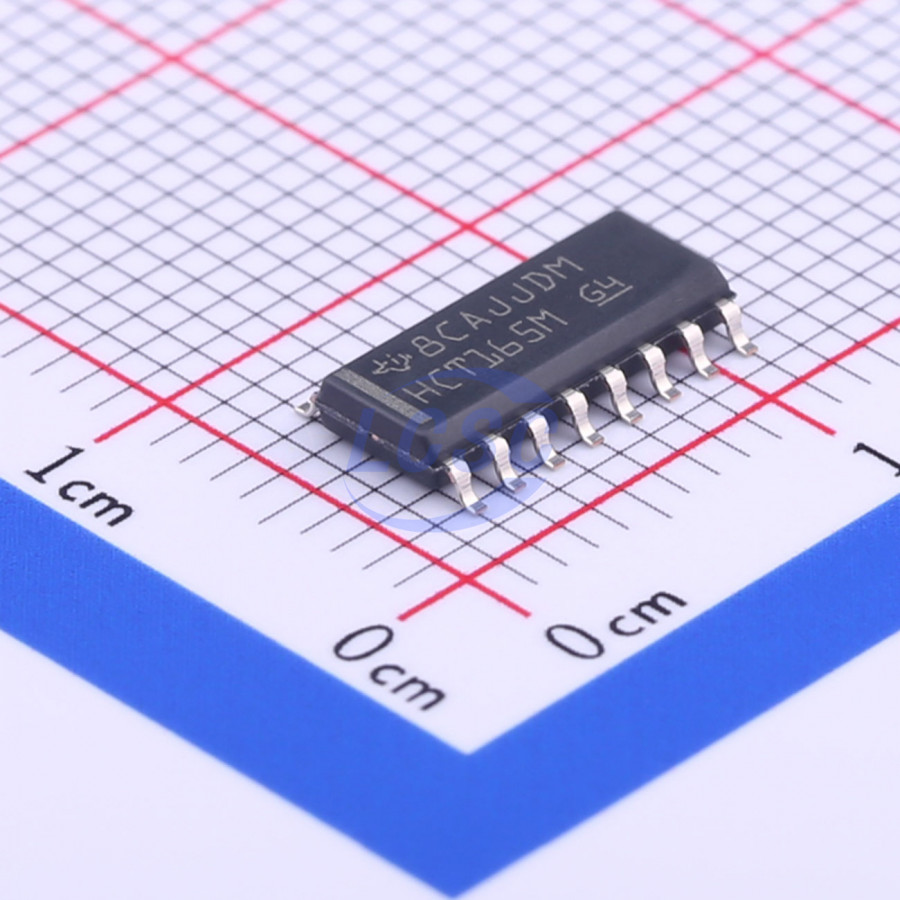

CD74HCT165M96
4.5V~5.5V 1 25mA 50ns@5V,50pF Parallel or Serial to Serial SOIC-16 Shift Registers RoHS
SOIC-16ROHS3 CompliantActive
8-Bit Parallel-In/Serial-Out Shift Register
- Manufacturer
- TI
- Manufacturer part #
- CD74HCT165M96
- Store part #
- C352828
- Package / case
- SOIC-16
- Category
- Shift Registers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,735 in stock
#C352828
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹47.58 | ₹237.90 |
| 50+ | ₹38.54 | ₹1,927.00 |
| 150+ | ₹34.12 | ₹5,118.00 |
| 500+ | ₹30.19 | ₹15,095.00 |
| 2,500+ | ₹29.11 | ₹72,775.00 |
| 5,000+ | ₹28.46 | ₹1,42,300.00 |
5 × ₹47.58
₹237.90
excl. GST
₹280.72 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CD74HCT165M96
₹237.90 for 5 + GST
Specifications
- Operating temperature
- -55℃~+125℃
- Voltage - Supply
- 4.5V~5.5V
- Output Type
- Complementary
- Current - Output High(IOH)
- 25mA
- Series
- 74HCT
- Current - Output Low(IOL)
- 25mA
- Number of Elements
- 1
- Output Current
- 25mA
- Features
- Asynchronous parallel load function
- Propagation Delay
- 50ns@5V,50pF
- Function
- Parallel or Serial to Serial
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.257 g
Overview
High-Speed CMOS Logic 8-Bit Parallel-In/Serial-Out Shift Register
Applications
- Expandable for parallel-to-serial converter applications
Key features
- Buffered Inputs
- Asynchronous Parallel Load
- Complementary Outputs
- Fanout (Over Temperature Range) - Standard Outputs: 10 LSTTL Loads - Bus Driver Outputs: 15 LSTTL Loads
- Wide Operating Temperature Range: -55°C to 125°C
- Balanced Propagation Delay and Transition Times
- Significant Power Reduction Compared to LSTTL Logic ICs
- HC Types - 2V to 6V Operation - High Noise Immunity: NIL = 30%, NIH = 30% of VCC at VCC = 5V
- HCT Types - 4.5V to 5.5V Operation - Direct LSTTL Input Logic Compatibility, VIL = 0.8V (Max), VIH = 2V (Min) - CMOS Input Compatibility, I ≤ 1μA at VOL, VOH
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74HCT165D,653#C456131Nexperia · SOIC-16 | Nexperia | SOIC-16 | 2,710 | ₹54.16 · 2,710 in stock | View |
 | SN74LS165ADR#C7742TI · SOIC-16 | TI | SOIC-16 | 8,313 | ₹70.62 · 8,313 in stock | View |
| CD74HCT165MT#C3304327TI · SOIC-16 | TI | SOIC-16 | On request | ₹83.07 · 0 in stock | View | |
| 74HCT165D,653-JSM#C53114385JSMSEMI · SOP-16 | JSMSEMI | SOP-16 | On request | ₹36.28 · 0 in stock | View | |
| 74HCT165D,652#C547404Nexperia · SO-16 | Nexperia | SO-16 | On request | ₹21.80 · 0 in stock | View | |
