VBsemi ElecDatasheet (PDF)

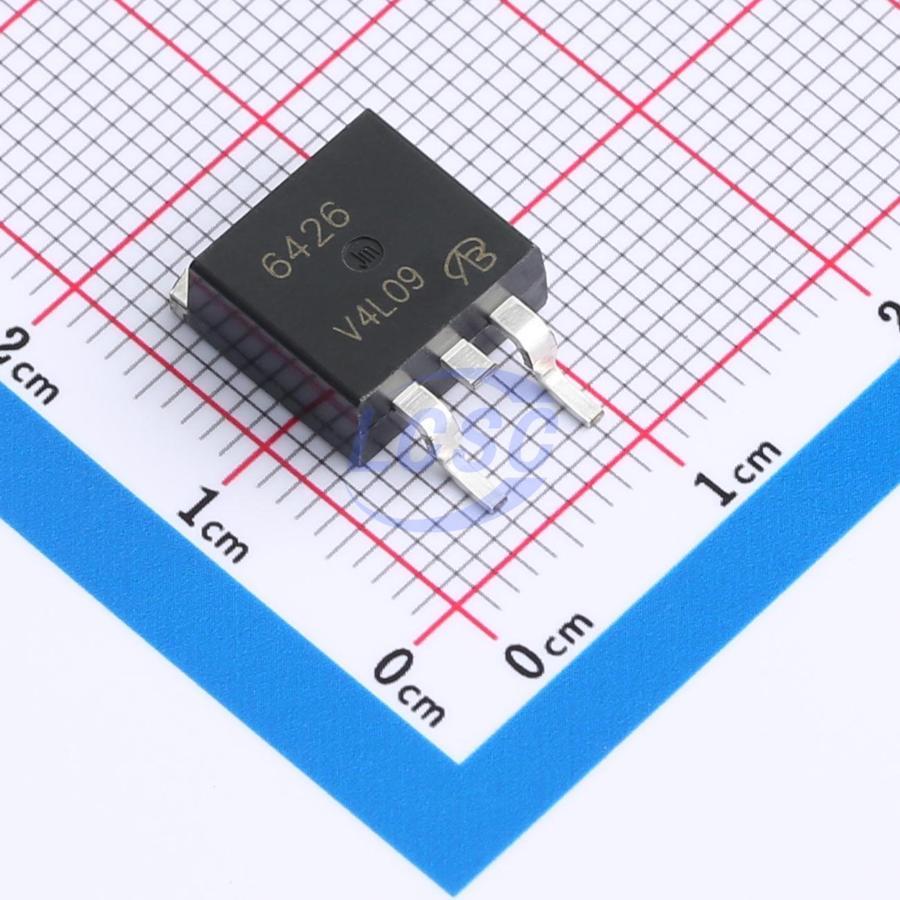

CEB6426-VB
N-Channel 60V 50A 150W Surface Mount TO-263(D2Pak)
TO-263(D2PAK)RoHSActive
MOSFET N-CH 60V 50A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- CEB6426-VB
- Store part #
- C41370123
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C41370123
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹134.97 | ₹134.97 |
| 10+ | ₹115.60 | ₹1,156.00 |
| 50+ | ₹105.80 | ₹5,290.00 |
| 100+ | ₹64.88 | ₹6,488.00 |
| 500+ | ₹59.22 | ₹29,610.00 |
| 1,000+ | ₹56.17 | ₹56,170.00 |
1 × ₹134.97
₹134.97
excl. GST
₹159.26 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
CEB6426-VB
₹134.97 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 1nF
- Current - Continuous Drain(Id)
- 50A
- Ciss-Input Capacitance
- 3nF
- Pd - Power Dissipation
- 150W
- Reverse Transfer Capacitance (Crss)
- 200pF
- RDS(on)
- 35mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 60nC@5V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 5.45 g
Overview
Applications
- Battery Switch - DC/DC Converter - N-Channel MOSFET
Key features
- Halogen-free According to IEC 61249-2- Definition
- Surface Mount
- Available in Tape and Reel
- Dynamic dV/dt Rating
- Logic-Level Gate Drive
- Fast Switching
- Compliant to RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CEB4060AL-VB#C19632100VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 7 | ₹99.99 · 7 in stock | View |
 | CEB6336-VB#C22388970VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 10 | ₹96.00 · 10 in stock | View |
 | IRLZ14STRL-VB#C22389250VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 10 | ₹96.00 · 10 in stock | View |
 | BUK9675-55A-VB#C22389560VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 5 | ₹96.00 · 5 in stock | View |
 | HUF76419S3ST-VB#C22389730VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 9 | ₹96.00 · 9 in stock | View |
