VBsemi ElecDatasheet (PDF)

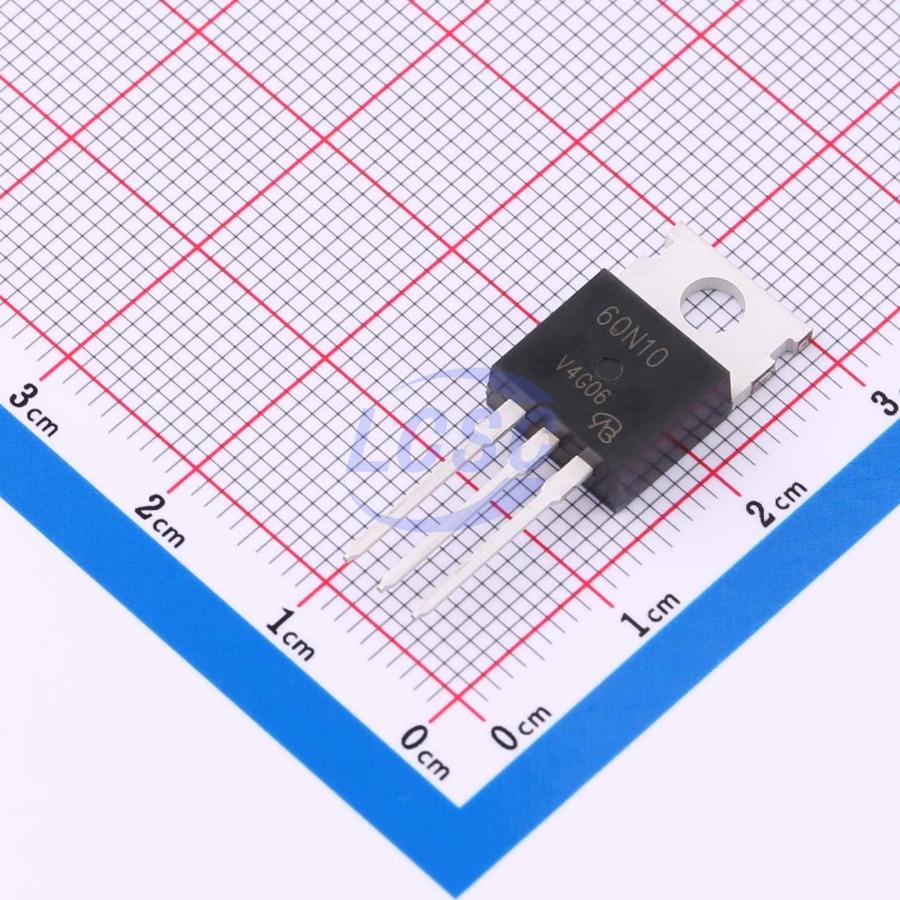

CEP60N10-VB
N-Channel 100V 70A 355W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 100V 70A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- CEP60N10-VB
- Store part #
- C29778943
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C29778943
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹123.52 | ₹123.52 |
| 10+ | ₹99.36 | ₹993.60 |
| 50+ | ₹87.38 | ₹4,369.00 |
| 100+ | ₹75.41 | ₹7,541.00 |
| 500+ | ₹68.28 | ₹34,140.00 |
| 1,000+ | ₹64.71 | ₹64,710.00 |
1 × ₹123.52
₹123.52
excl. GST
₹145.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
CEP60N10-VB
₹123.52 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 210pF
- Current - Continuous Drain(Id)
- 70A
- Ciss-Input Capacitance
- 1.8nF
- Pd - Power Dissipation
- 355W
- Reverse Transfer Capacitance (Crss)
- 110pF
- RDS(on)
- 17mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 90nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.29 g
Overview
Applications
- Isolated DC/DC Converters
- N-Channel MOSFET
Key features
- TrenchFET Power MOSFET
- 175 °C Junction Temperature
- Low Thermal Resistance Package
- 100 % Rg Tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AP55T10GP-HF-VB#C22389260VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹123.52 · 10 in stock | View |
 | P50NE10-VB#C22389590VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 4 | ₹123.52 · 4 in stock | View |
 | SPP47N10L-VB#C22389628VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹123.52 · 10 in stock | View |
 | 50N10-VB TO220#C22389677VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 3 | ₹123.52 · 3 in stock | View |
 | HUF76639P3-VB#C22389771VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹123.52 · 10 in stock | View |
