VBsemi ElecDatasheet (PDF)

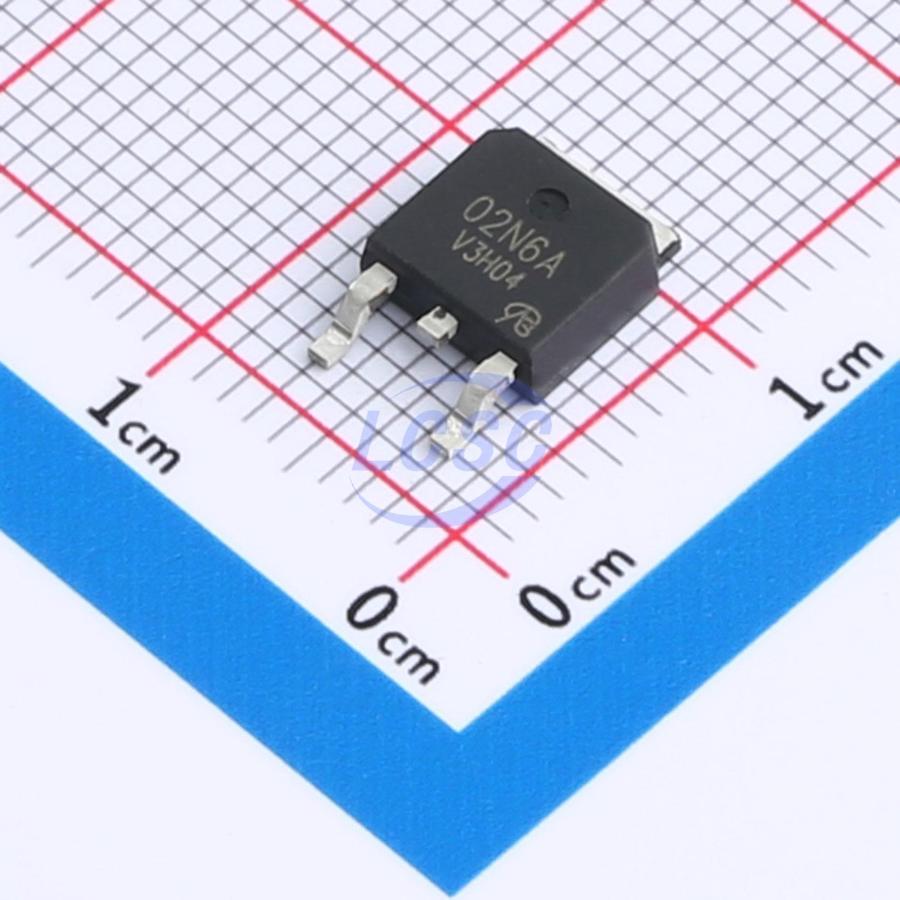

CEU02N6A-VB
N-Channel 650V Surface Mount TO-252
TO-252ROHS CompliantActive
MOSFET N-CH 650V TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- CEU02N6A-VB
- Store part #
- C7568794
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C7568794
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹71.01 | ₹71.01 |
| 10+ | ₹56.10 | ₹561.00 |
| 30+ | ₹49.57 | ₹1,487.10 |
| 100+ | ₹41.60 | ₹4,160.00 |
| 500+ | ₹36.98 | ₹18,490.00 |
| 1,000+ | ₹34.87 | ₹34,870.00 |
1 × ₹71.01
₹71.01
excl. GST
₹83.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CEU02N6A-VB
₹71.01 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Current - Continuous Drain(Id)
- 2A
- Output Capacitance(Coss)
- 40pF
- Ciss-Input Capacitance
- 330pF
- Pd - Power Dissipation
- 60W
- RDS(on)
- 4.3Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 15nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.4 g
Overview
Applications
- Load Switch - Adapter Switch - Notebook Computer
Key features
- Low Gate Charge Qg Results in Simple Drive Requirement
- Improved Gate, Avalanche and Dynamic dV/dt Ruggedness
- Fully Characterized Capacitance and Avalanche Voltage and Current
- Compliant to RoHS directive 2002/95/EC
