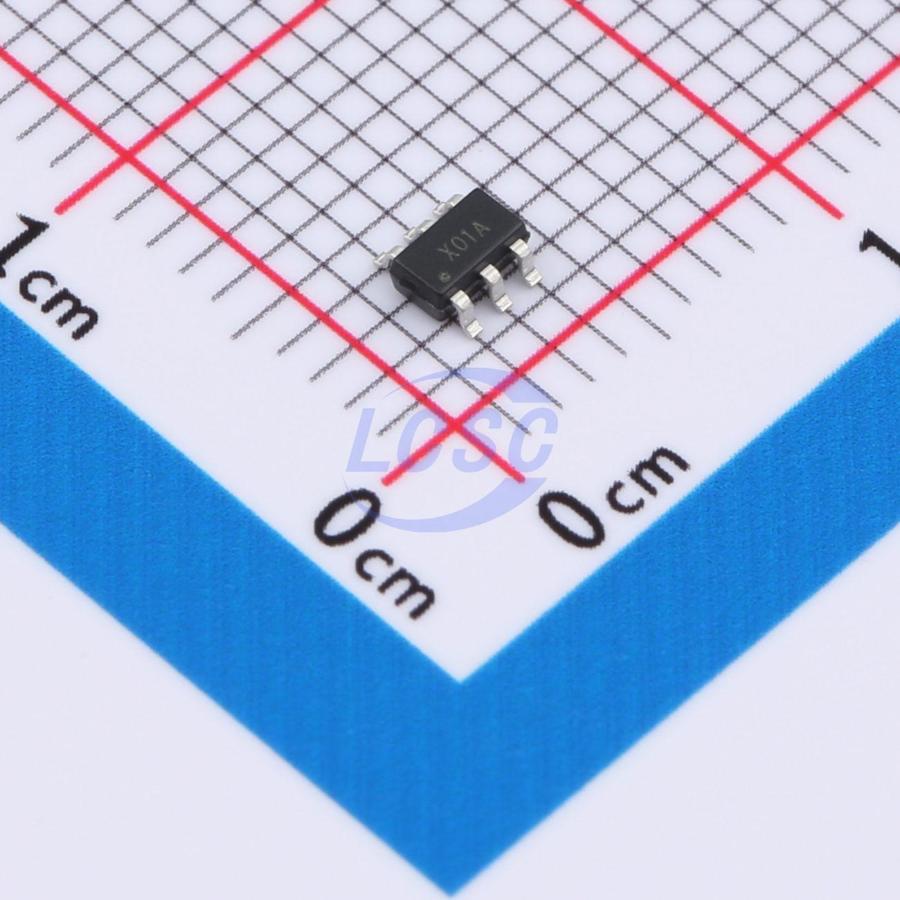

CI7476
12 Bit Analog to Digital Converter 1 Input SAR SOT-23-6
SOT-23-6ROHS CompliantActive
ULTRALOW POWER, SAR ANALOG-TO-DIGITAL CONVERTER
- Manufacturer
- Tokmas
- Manufacturer part #
- CI7476
- Store part #
- C41415530
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,539 in stock
#C41415530
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹43.99 | ₹43.99 |
| 10+ | ₹38.14 | ₹381.40 |
| 30+ | ₹35.54 | ₹1,066.20 |
| 100+ | ₹32.51 | ₹3,251.00 |
| 500+ | ₹30.98 | ₹15,490.00 |
| 1,000+ | ₹30.12 | ₹30,120.00 |
1 × ₹43.99
₹43.99
excl. GST
₹51.91 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CI7476
₹43.99 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Interface
- SPI
- Quiescent Current (Iq)
- 1.34mA
- Voltage - Supply
- 4V~5.25V
- Number of Channels
- 1
- Integral non - linearity
- 1.25LSB
- Clock/Oscillator
- External
- Clock Frequency
- 16MHz;20MHz
- Resolution(Bits)
- 800kHz;12
- S/N Ratio
- 71.5dB
- DNL (LSB)
- 1.25LSB
- ADC architecture
- SAR
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.04 g
Overview
Applications
- Battery Powered Systems
- Portable Systems
- Medical Instruments
- Mobile Communications
- Factory Automation and ATM Equipment
- Instrumentation and Control Systems
Key features
- Single 3.3V to 4.8V Supply Operation for CI7476E/77E/78E Single 4V to 5.25V Supply Operation for CI7476/77/78
- Fast Throughput Rate: 1 MSPS for CI7476E/77E/78E 800 KSPS for CI7476/77/78
- ±1.25LSB INL,±1.25LSB DNL (CI7476)
- No Pipeline Delays
- SPI/DSP/MICROWIRE Compatible Serial Interface
- Variable Power Management
- Low Power (CI7476 Typical): 3.4mW (4V, 800 KSPS) 6.1mW (5V, 800 KSPS)
- Second-Source for ADCS7476/77/78
- 6-Pin SOT-23 Package
