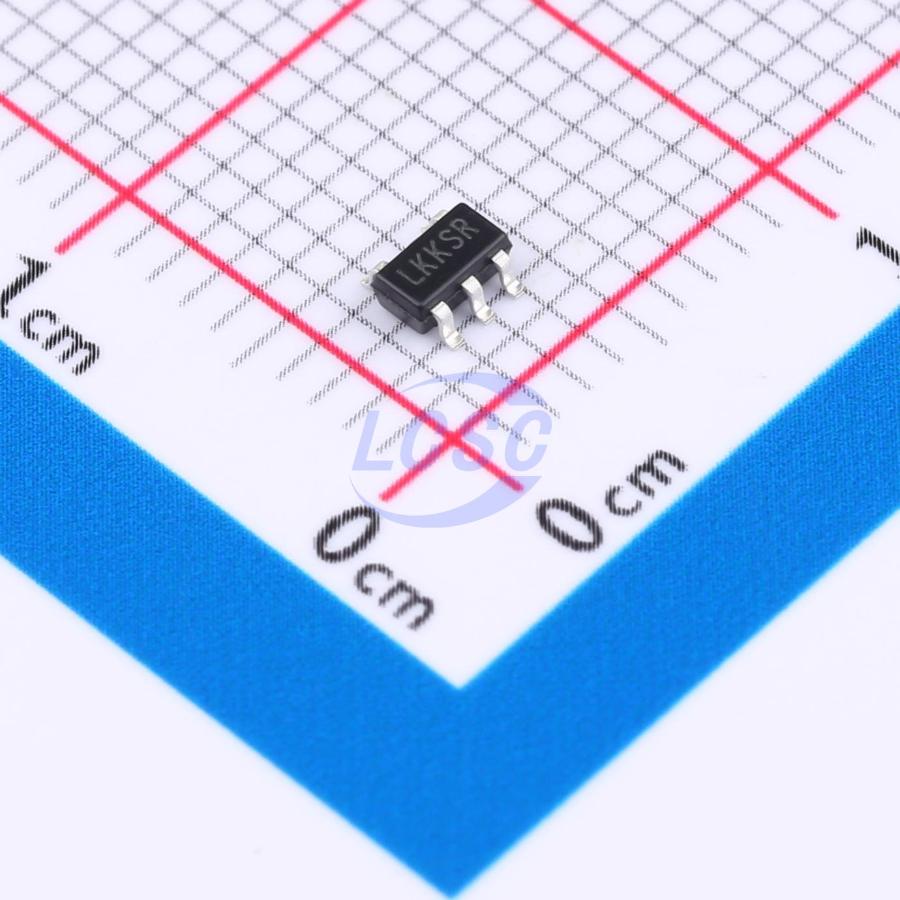

CJ6376A50MR
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-5L
SOT-23-5LROHS CompliantActive
36V low-power 300mA CMOS voltage regulator
- Manufacturer
- JSCJ
- Manufacturer part #
- CJ6376A50MR
- Store part #
- C2829415
- Package / case
- SOT-23-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C2829415
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.27 | ₹91.35 |
| 50+ | ₹14.24 | ₹712.00 |
| 150+ | ₹12.52 | ₹1,878.00 |
| 500+ | ₹10.36 | ₹5,180.00 |
| 3,000+ | ₹9.01 | ₹27,030.00 |
| 6,000+ | ₹8.43 | ₹50,580.00 |
5 × ₹18.27
₹91.35
excl. GST
₹107.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CJ6376A50MR
₹91.35 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 36V
- Output Type
- Fixed
- Features
- Enable control;Short Circuit Protection;Thermal shutdown;Output discharge;Over Current Protection
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.046 g
Overview
CJ6376 series is a group of positive voltage regulators manufactured by CMOS process, which has low power consumption and low voltage. Even if the input and output voltage difference is very small, it can also provide larger output current. CJ6376 series can provide 300 mA output current and allow input voltage up to 36V. This series of products are very suitable for battery powered devices, such as RF applications and other systems requiring quiet voltage sources.
Applications
- Cordless Phones
- Radio Control Systems
- Laptop, Palmtops and PDAs
- Single-lens Reflex DSC
- PC Peripherals with Memory
Key features
- Low Quiescent Current: 2μA
- Operating Voltage Range: 2.5V~36V
- Output Current: 300mA
- Low Dropout Voltage: 200mV@100mA (VOUT = 3.3V)
- Output Voltage: 1.2~12V
- High Accuracy: ±2%/±1% (Typ.)
- High Power Supply Rejection Ratio: 70dB@1kHz
- Low Output Noise: 27xVOUT μVRMS (10Hz~100kHz)
- Excellent Line and Load Transient Response
- Built-in Current Limiter, Short-Circuit Protection
- Over-Temperature Protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CJ6376B50M#C2829416JSCJ · SOT-23-5L | JSCJ | SOT-23-5L | 4,630 | ₹13.18 · 4,630 in stock | View |
