JSCJDatasheet (PDF)

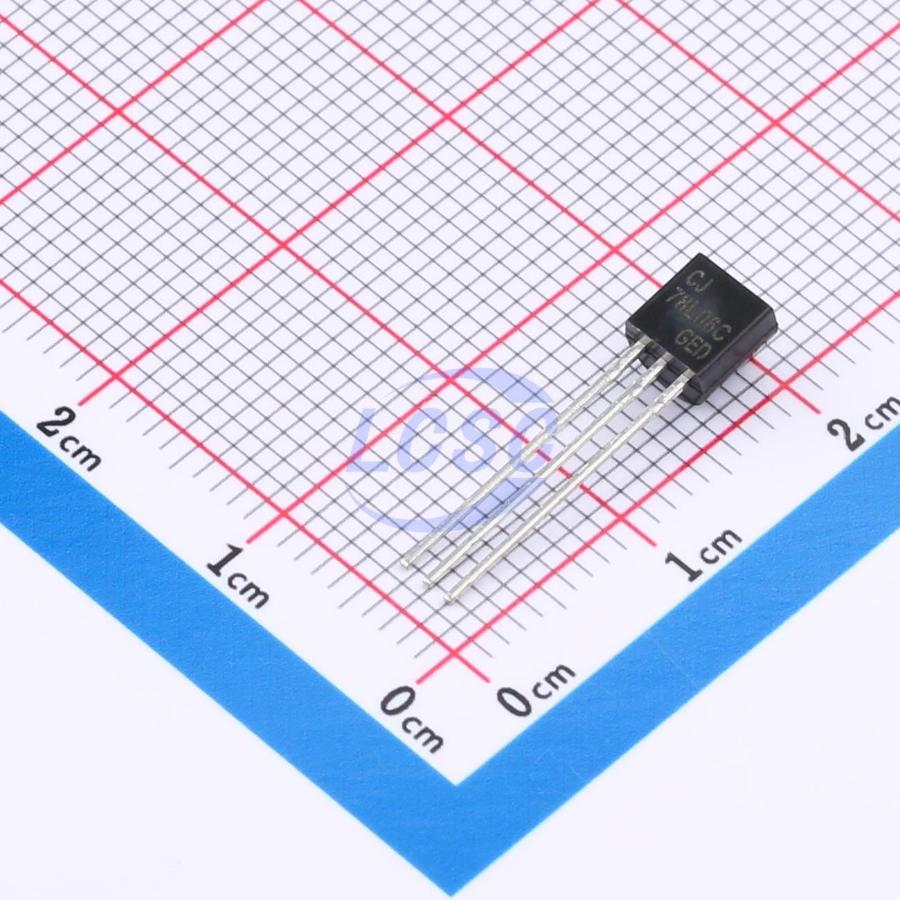

CJ78L06C-TAB-ABG
6V Positive Fixed TO-92 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-92ROHS CompliantActive
100mA Fixed Output Three Terminal Positive Regulators
- Manufacturer
- JSCJ
- Manufacturer part #
- CJ78L06C-TAB-ABG
- Store part #
- C20622069
- Package / case
- TO-92
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
400 in stock
#C20622069
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹9.43 | ₹47.15 |
| 50+ | ₹7.36 | ₹368.00 |
| 150+ | ₹6.32 | ₹948.00 |
| 1,000+ | ₹5.54 | ₹5,540.00 |
| 2,000+ | ₹4.92 | ₹9,840.00 |
| 5,000+ | ₹4.62 | ₹23,100.00 |
5 × ₹9.43
₹47.15
excl. GST
₹55.64 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per bag
CJ78L06C-TAB-ABG
₹47.15 for 5 + GST
Specifications
- Output Voltage
- 6V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 5.5mA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 30V
- Output Type
- Fixed
- Features
- Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Bag-packed
- Standard pack
- 1,000 / Bag
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.221 g
Overview
The CJ78L00C series is a group of three terminal positive voltage linear regulators with fixed voltage output. Its input voltage can reach up to 30V (or 35V) and can deliver output current up to 100mA with good power dissipation. The CJ78L00C series adopts fixed voltage output and no peripheral resistance, improving the space utilization efficiency of printed circuit boards (PCBs). In addition, the CJ78L00C series also integrates internal current limiting, thermal shutdown, and safe-area compensation, which helps protect the device from overload. Therefore, the CJ78L00C series is widely used in various scenarios, such as on card adjustment, to eliminate noise and distribution issues related to single point supervision. When used as a substitute for Zener diode resistor combinations, it can effectively increase output impedance and reduce bias current.
Applications
- Chemical or Gas Sensors
- Computing and Servers
- Field Transmitter: Temperature Sensors
- Flow Meters
- On-Card Regulation
- Telecommunications White Goods
Key features
- Available Output Voltage: 5.0V, 6.0V, 8.0V, 9.0V, 12V, 15V, 18V
- Maximum Input Voltage: 30V for VOUT<10V; 35V for VOUT>10V
- Maximum Output Current: up to 100mA
- Operating Junction Temperature: -40~125°C
- Output Voltage Tolerances at TJ = 25°C: ±3% for Conventional Device; ±2% can be Customized
- Output Voltage Tolerances of ±5% over the Temperature Range
- No External Components
- Build-in Current Limit
- Thermal Shutdown Protection
- Output Transistor Safe-Area Protection
