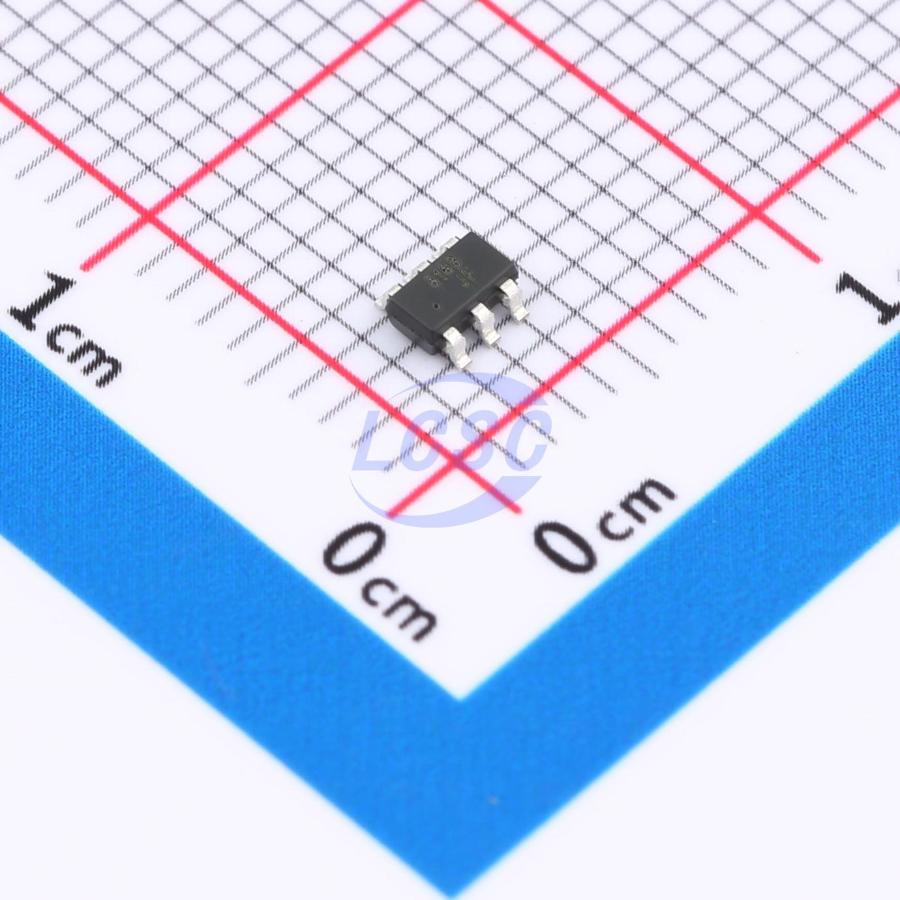

JSCJ

CJ818B

Bipolar (BJT) Transistor PNP 30V 1.2W Surface Mount SOT-23-6L

SOT-23-6LROHS CompliantActive

TRANS PNP 30V SOT-23-6L

Manufacturer: JSCJ
Manufacturer part #: CJ818B
Store part #: C47089393
Package / case: SOT-23-6L
Category: Single Bipolar Transistors
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,000 in stock

#C47089393

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
5+	₹11.48	₹57.40
50+	₹9.18	₹459.00
150+	₹8.03	₹1,204.50
500+	₹7.17	₹3,585.00
3,000+	₹6.48	₹19,440.00
6,000+	₹6.14	₹36,840.00

Quantity (min 5, multiples of 5)

5 × ₹11.48

₹57.40

excl. GST

₹67.73 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

CJ818B

₹57.40 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Current - Collector Cutoff: 100nA
Operating Temperature: -55℃~+150℃
Collector - Emitter Voltage VCEO: 30V
DC Current Gain: 100
Emitter-Base Voltage VEBO: 5V
Current - Collector(Ic): 3A
Pd - Power Dissipation: 1.2W
type: PNP
Number: 1 PNP
Vce Saturation(VCE(sat)): 800mV

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.059 g

Overview

The device is manufactured in low voltage PNP Planar Technology with "Base Island" layout. The resulting Transistor shows exceptional high gain performance coupled with very low saturation voltage.

Applications

Power management in portable equipments
Switching regulator in battery charge applications

Key features

Very low collector to emitter saturation voltage
