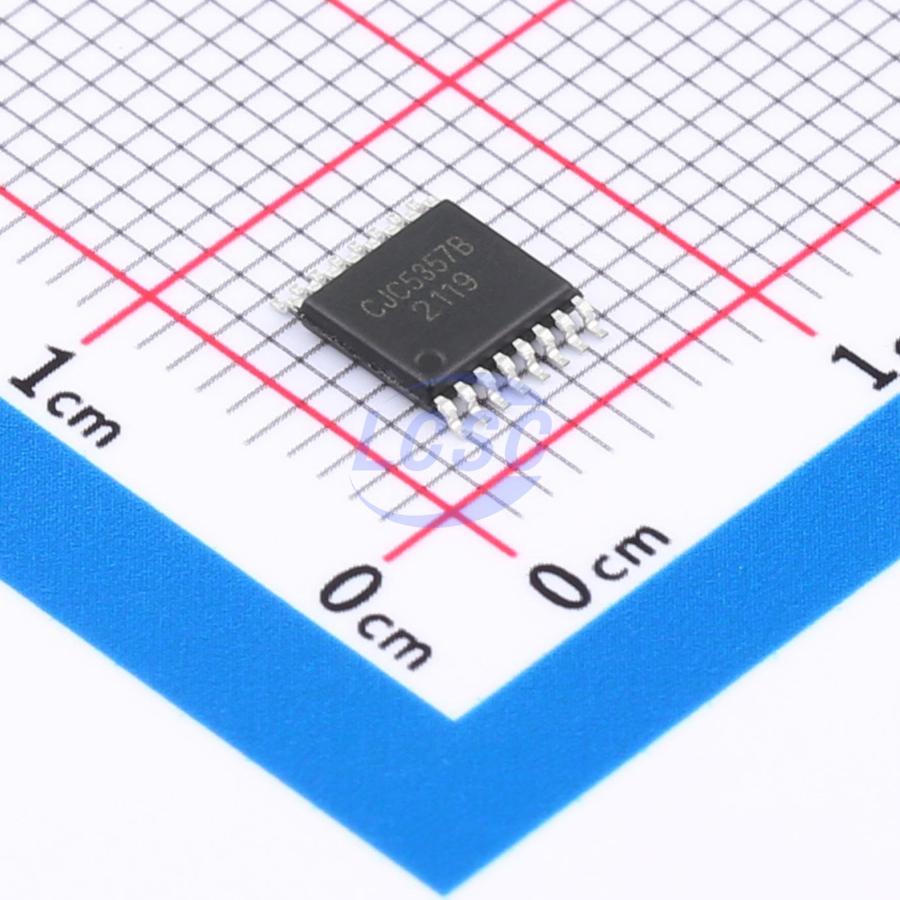

CJC5357B
I2S 2.7V~3.6V TSSOP-16 Analog to Digital Converters (ADC) RoHS
TSSOP-16ROHS CompliantActive
96KHz 24-Bit Sampling EADC
- Manufacturer
- ESHINE
- Manufacturer part #
- CJC5357B
- Store part #
- C7431489
- Package / case
- TSSOP-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,645 in stock
#C7431489
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹57.51 | ₹57.51 |
| 10+ | ₹50.79 | ₹507.90 |
| 30+ | ₹47.43 | ₹1,422.90 |
| 100+ | ₹44.28 | ₹4,428.00 |
| 500+ | ₹42.19 | ₹21,095.00 |
| 1,000+ | ₹41.15 | ₹41,150.00 |
1 × ₹57.51
₹57.51
excl. GST
₹67.86 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CJC5357B
₹57.51 for 1 + GST
Specifications
- Operating Temperature
- -20℃~+85℃
- Interface
- I2S
- Quiescent Current (Iq)
- 100uA
- Voltage - Supply
- 2.7V~3.6V
- Number of Channels
- 2
- Clock/Oscillator
- External
- Clock Frequency
- 1.024MHz~36.684MHz
- Features
- Built-in digital filter
- Resolution(Bits)
- 96kHz;24
- S/N Ratio
- 99dB
- ADC architecture
- Sigma-Delta
- Programmable Gain
- Not supported
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.178 g
Overview
The CJC5357B is a sampling rate 4KHz ~ 96KHz stereo ADC, it is suitable for multi-media audio systems. With enhanced dual-bit -Σ technology, it owns high precision and low power consumption properties. Because it is a single-ended input device, there is no need for additional devices. The audio interface supports two formats (MSB justified, I2S), and can be used in a variety of systems, such as karaoke OK, surround sound and so on.
Key features
- Stereo Δ-Σ ADC
- On-chip digital anti-alias filter
- Single-ended input
- Digital high-pass filter to eliminate DC offset
- S/(N + D): 84dB@3.3V for 48kHz
- DR: 90dB@3.3V for 48kHz, 98dB@3.3V for 96kHz
- S/N: 90dB@3.3V for 48kHz, 98dB@3.3V for 96kHz
- Sampling Rate: 4kHz ~ 96kHz
- Master Clock: 256fs/384fs/512fs/768fs (4kHz~48kHz), 256fs/384fs (48kHz~96kHz)
- CMOS Input Level
- Master/Slave mode
- Audio Interface: 24bit MSB justifed/I2S is optional
- Power Supply: 2.7 to 3.6V
- Ta = -40 - 85°C (industrial), Ta = -20~85°C (commercial)
- Package: 16pin TSSOP
